The Yamaha DSU50 is a specialized drum microphone designed to capture the authentic sound of an acoustic drum kit with minimal setup. Clamped to the bass drum hoop and facing the drummer, it delivers a clear, wide stereo image of the entire kit, perfect for rehearsals, live performances, studio recording, monitoring, or streaming. A single DSU50 provides full, professional-quality sound, while using a second unit expands the stereo field for more detailed cymbals and a richer room ambiance.
- Matched-pair condenser capsules arranged in XY configuration for natural stereo imaging
- Engineered specifically for acoustic drums to capture dynamic range and tonal nuance
- Isolated housing structure reduces vibration and mechanical interference for clean audio
- Slim, low-profile design with hoop clamp and 3/8-inch mount for flexible placement
- High-precision trigger sensor accurately detects bass-drum attacks
- Integrates seamlessly with EAD50 module for layering sounds, adding effects, and hybrid drumming
- Included with EAD50 or available as a standalone unit
- Not compatible with EAD10 module
Authentic Acoustic Drum Capture
Designed for drummers who demand clarity and expression, the DSU50 sensor combines Yamaha’s decades of acoustic expertise with advanced sensing technology. Every component is carefully voiced under Yamaha’s sound guidance and refined with insights from a professional recording engineer, ensuring accurate, musical reproduction of every stroke.
Balanced Stereo Imaging
The DSU50’s matched-pair condenser capsules in XY alignment capture both the power of the kit and subtle details, delivering a full, immersive stereo sound. This natural imaging preserves the dynamic character of your drums, making your performance sound authentic in any setting.
Stable, Low-Noise Performance
Internal isolation between the microphone and sensor sections minimizes vibration and mechanical interference, providing clean, stable audio even in high-volume environments. This design ensures reliable, professional-quality capture for rehearsals, recording sessions, or live shows.
Expressive Hybrid Drumming
The integrated trigger sensor detects bass-drum attacks with precision, enabling expressive hybrid performance when paired with the EAD50 module. Add effects, layer triggered sounds, or create dynamic studio-ready recordings with a setup that’s quick and intuitive.
Frequently Asked Questions: Yamaha DSU50
What is the Yamaha DSU50 and how does it work?
The DSU50 is a hybrid drum sensor that functions as both a microphone and a bass-drum trigger. It mounts on the bass drum hoop and captures a clear, wide stereo image of your acoustic drum kit, while the integrated trigger detects bass-drum hits for layering sounds, adding effects, or hybrid drumming with the EAD50 module.
Do I need more than one DSU50?
No. One DSU50 provides a full, professional sound for rehearsals, live shows, or recordings. However, adding a second unit enhances performance by expanding the stereo image, providing more detailed cymbal capture, and creating a richer, more immersive room sound.
Can the DSU50 be used with any drum module?
No. The DSU50 is designed specifically for use with the EAD50 module to trigger sounds or add effects. It is not designed for use with other drum modules, and Yamaha specifically states it is not compatible with the EAD10 module.
How does the DSU50 capture the sound of my drums?
Its matched-pair condenser capsules in an XY configuration capture natural, balanced stereo sound. The housing isolates the microphone and sensor sections to reduce vibration and mechanical noise, ensuring clean, stable audio.
Is the DSU50 suitable for live performance?
Yes. Its compact design, reliable stereo capture, and integrated trigger sensor make it ideal for live shows, streaming, or hybrid drumming setups.
How does the DSU50 connect to the EAD50 module?

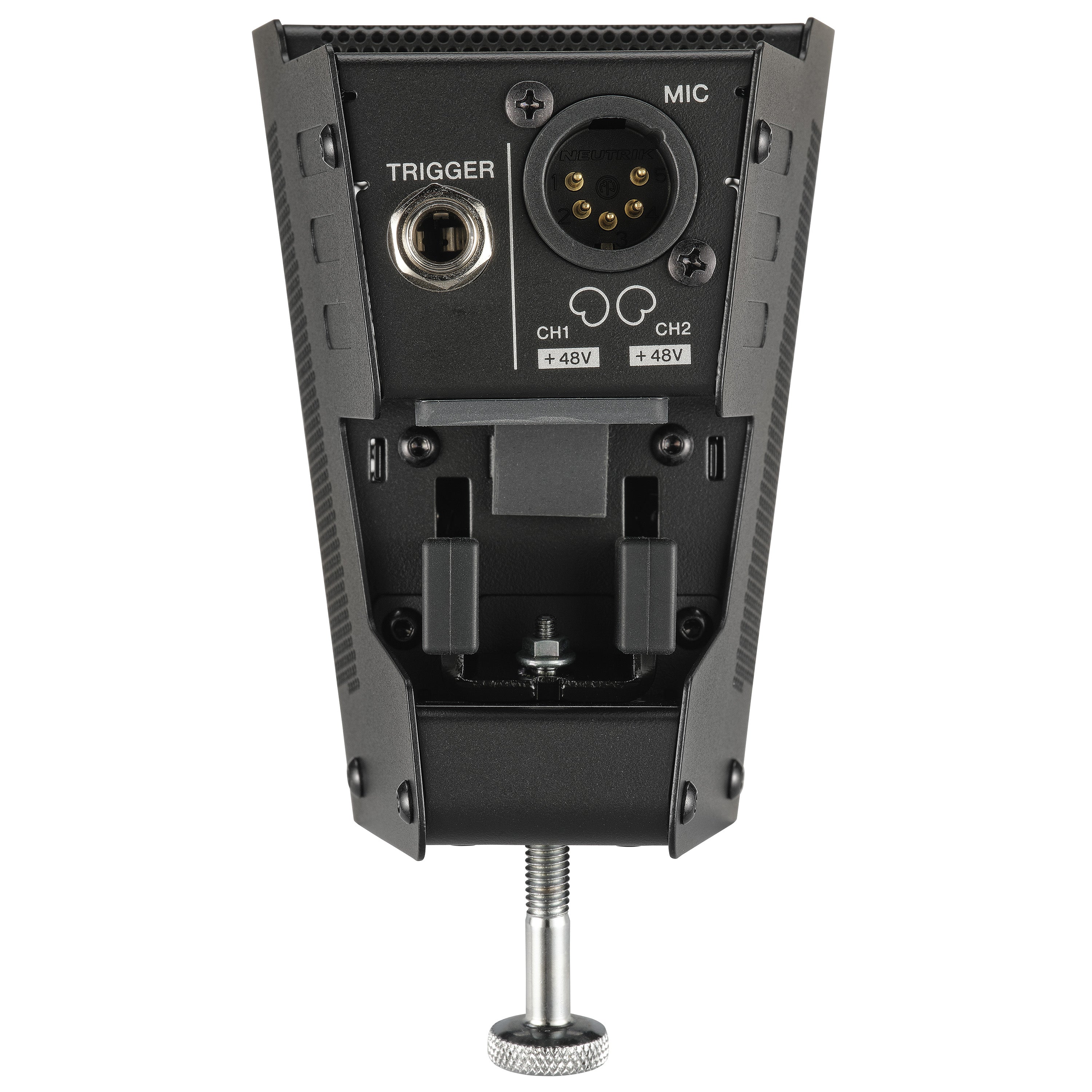

The DSU50 connects directly to the EAD50 module using the included breakout cable, which splits into two 3-pin XLR connectors for left and right stereo audio and a single 1/4" trigger cable for the bass drum. Setup is straightforward: mount it on the bass drum hoop, plug it into the module, and it’s ready to capture and layer sounds. For a second DSU50, connect its XLR outputs to the module’s other mic inputs to expand the stereo image and capture more cymbal and room detail. The second unit does not need a trigger connection, as the EAD50 supports only one bass-drum trigger input.
Is the DSU50 included with the EAD50?
Yes. The DSU50 comes included with the EAD50 and is also available separately for expansion or replacement.
| Specification | Value |
|---|---|
| SKU | YAM-DSU50 |
| Model Name | DSU50 |
| Vendor | Yamaha |
| Included From Manufacturer |
5‑pin XLR to dual 3‑pin XLR for left/right stereo breakout cable Bass drum hoop clamp |
| Mic Style | Drum Mount |
| Mic Type | Condenser |
| Wired Wireless | Wired |
| Polar Pattern(s) | Matched-pair condenser capsules in an XY stereo configuration |
| Requires Phantom Power | If used outside the EAD50 system |
| On/Off Switch | No |
| Recommended Uses | Acoustic drum stereo capture for rehearsals, live performance, recording, monitoring, and streaming. |
