Yamaha DTX-PROX Electronic Drum Trigger Module
Yamaha DTX-PROX is the flagship DTX drum sound module. Kit Modifier and LED rotary faders allow intuitive sound adjustments with the simple twist of a knob, giving drummers engineer-level control.
- Faithful reproduction of real sound and ambience recorded in world-renowned studios/li>
- Use Kit Modifier AMBIENCE, COMP and EFFECT controls to create your own sound/li>
- Use 'Live Set' capabilities to recall prearranged kits, tempos and audio files with one touch/li>
- LED rotary faders to change various settings quickly and intuitively/li>
- Individual output terminals output up to eight sounds/li>
- Aux input can input monitor sound from PA/li>
- Connect wirelessly via Bluetooth to play along with songs/li>
- USB terminal can send/input audio and MIDI data to smart devices or PC/li>
- Record, edit and mix with included downloadable Cubase AI software
No compromise has been made in recording the instrument sounds. The DTX-PROX sounds have been fine-tuned to naturally follow the drummer's performance and allow for maximum expression. Performances by leading Yamaha drums artists were recorded and mixed by a team of recording engineers to provide the final instrument samples in the module.

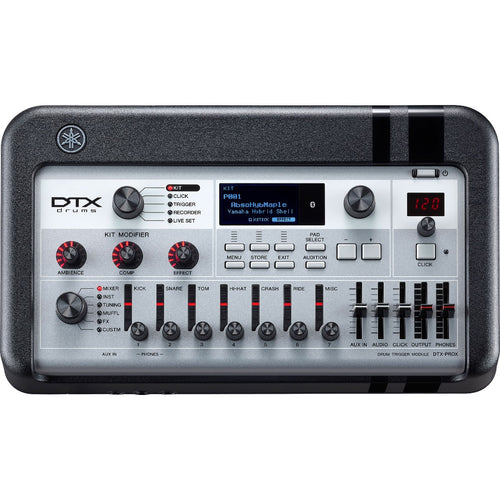

For Kit Modifier, the experience of Yamaha and its drum voicing that has been cultivated over many years has been condensed into three knobs: AMBIENCE, COMP and EFFECT. With the simple twist of a knob, it is possible to express a wide range of sounds from natural/acoustic to the unique sounds created by professional engineers and producers.
Seven LED rotary faders can be used to change the parameters of all the instruments. With the fader select knob you can select your preferred option from six presets (with 14 sub presets) and control it intuitively with the LED rotary faders. Additionally, the LED rotary faders can be used to control connected external devices and DAW software in studio and live situations.

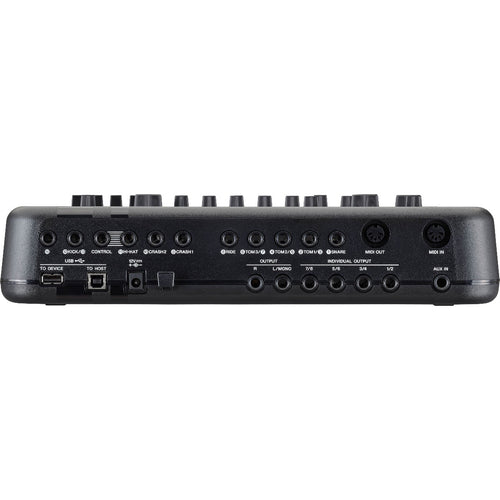

Suitable for everything from playing at home to performing live and recording, the DTX-PROX module is equipped with eight individual outputs and a matrix that allows routing sounds to any output. The aux in jack sockets can receive the monitor signal from a PA system and can also be routed to different locations. The USB port can be directly connected to a computer or smart device with a cable to send and receive audio and MIDI. Furthermore, it's equipped with MIDI in/out to allow you to connect to MIDI devices. The Bluetooth function allows you to easily connect smart devices, and you can also record your playing and audio from other devices to USB flash memory.
DTX-PROX also comes with a download code for the latest version of Cubase AI, the powerful music production software.
SKU | YAM-DTXPROX |
Vendor | Yamaha |
Connectivity | USB and MIDI |
Included From Manufacturer | Power supply |
MPN | DTX-PROX |
Product Unique Features |
30 click sets: 30 to 300 BPM, tap tempo supported, voice guide EQ, compressor, transient and insert effect for each instrument Ambience, two effects and master compressor for each kit Overall master EQ, headphone EQ |
Number of Drum Kits | 70 preset kits 200 user kits |
Audio Inputs | 1/4" stereo auxiliary input 1/8" stereo auxiliary input |
Audio Outputs | Dual 1/4" stereo main output 4 × 1/4" TRS outputs, split to 8 total individual assignable mono outputs 1/4" stereo headphone output |
Number of Instrument Sounds | 733 |
Internal Storage Capacity | 1,000 files 50 minutes 40 seconds (44.1 kHz, 16 bit, mono) 25 minutes 20 seconds (44.1 kHz, 16 bit, stereo) |
Metronome | Yes |
Sampling | Sample import only |
Sequencer/Recording | Yes |
Number of Songs/Patterns | 37 preset songs 1 user song Maximum of 90 seconds recording to internal memory Maximum of 90 minutes per file recording to USB flash drive |
Storage Type | USB;Internal |
Trigger Inputs | 14 |
