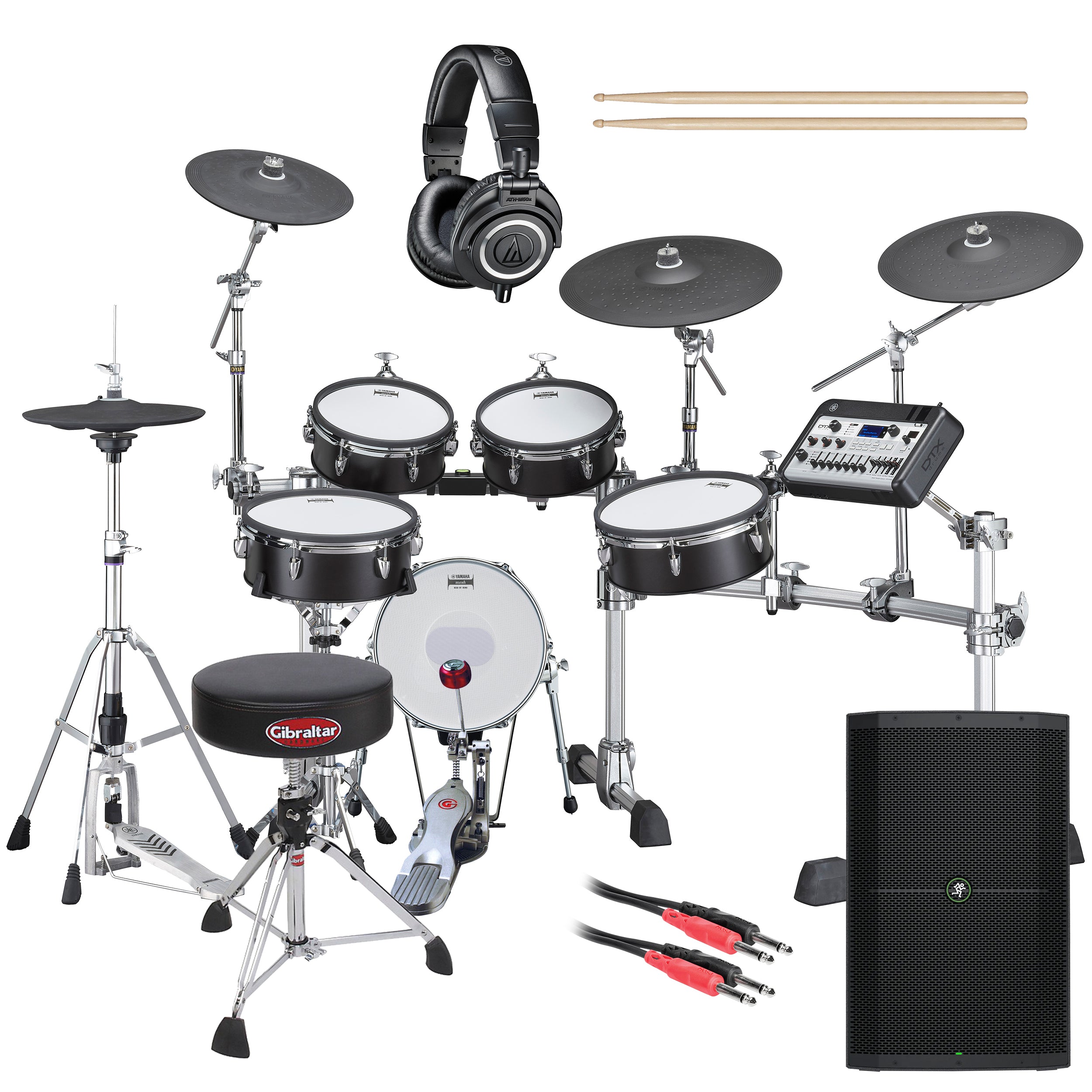

Yamaha DTX10K-M is a flagship model that combines the highest functionality of electronic drums with the beauty of acoustic drums. The DTX-PROX module featuring Kit Modifier and LED rotary faders allows intuitive sound adjustments with the simple twist of a knob, giving drummers engineer-level control. The real sound and ambience, the tactile feel of 2-ply Remo mesh pads and positional sensing on the ride cymbal provide a natural feel and expressiveness. Real wood birch-wrapped shells handcrafted and stained in the same factory as Yamaha acoustic drums provide the presence and beauty of premium acoustic drums.
- Faithful reproduction of real sound and ambience recorded in world-renowned studios
- Use Kit Modifier AMBIENCE, COMP and EFFECT controls to create your own sound
- Use 'Live Set' capabilities to recall prearranged kits, tempos and audio files with one touch
- LED rotary faders to change various settings quickly and intuitively
- Beautiful wood shells molded and finished at the Yamaha Drum factory
- Dual-ply mesh heads from Remo provide a quiet, durable playing surface that can be tuned to personal playing preference
- 17" ride cymbal pad has hit point detection for more expressive playing
- Individual output terminals output up to eight sounds
- Aux input can input monitor sound from PA
- Connect wirelessly via Bluetooth to play along with songs
- USB terminal can send/input audio and MIDI data to smart devices or PC
- Built on Yamaha's interchangeable hardware, including the Hexrack system
- Record, edit and mix with included downloadable Cubase AI software
Kick pedal is not included.
DTX10K-M is the flagship of the DTX lineup, combining the functionality of electronic drums with the sheer beauty of their acoustic counterparts. No compromise has been made in recording the instrument sounds. The DTX-PROX sounds have been fine-tuned to naturally follow the drummer's performance and allow for maximum expression. Performances by leading Yamaha drums artists were recorded and mixed by a team of recording engineers to provide the final instrument samples in the module.
For Kit Modifier, the experience of Yamaha and its drum voicing that has been cultivated over many years has been condensed into three knobs: AMBIENCE, COMP and EFFECT. With the simple twist of a knob, it is possible to express a wide range of sounds from natural/acoustic to the unique sounds created by professional engineers and producers.
Seven LED rotary faders can be used to change the parameters of all the instruments. With the fader select knob you can select your preferred option from six presets (with 14 sub presets) and control it intuitively with the LED rotary faders. Additionally, the LED rotary faders can be used to control connected external devices and DAW software in studio and live situations.
The mesh pads use two-ply heads made by Remo that boast outstanding noise reduction, durability and feel as well as a great rebound, making them superbly comfortable to play. The heads can be tuned to suit your personal preferences. The snare pad is equipped with three sensors that precisely respond to delicate stick work.
The pads feature wooden birch drum shells made and painted at Yamaha acoustic drum factories. The badges, lugs and hoops are also standard acoustic drum parts. These shells offer the presence and beauty of authentic acoustic drums and give this kit great stage appeal.
The KP128 kick pad uses a two-ply Remo head and features a unique three-layer cushion structure that offers the perfect feel with unparalleled comfort, regardless of the strength of the stroke. Everything from light hits to strong hits is equally comfortable to play. The 12" playing surface boasts both presence and portability, while the whole bass drum structure is incredibly stable and durable.
All cymbal pads feature 3 zones – meaning they produce different sounds at the edge, bow and cup – as well as choke and mute functionality. The ride cymbal is equipped with a hit point detection function, allowing it to reproduce delicate stick work.
RS10-HXR is the DTX10 series rack system featuring Hex Rack II, a rack system for acoustic drums. Its appearance boasts an overwhelming presence that looks great everywhere, especially on stage.
Suitable for everything from playing at home to performing live and recording, the DTX-PROX module is equipped with eight individual outputs and a matrix that allows routing sounds to any output. The aux in jack sockets can receive the monitor signal from a PA system and can also be routed to different locations. The USB port can be directly connected to a computer or smart device with a cable to send and receive audio and MIDI. Furthermore, it's equipped with MIDI in/out to allow you to connect to MIDI devices. The Bluetooth function allows you to easily connect smart devices, and you can also record your playing and audio from other devices to USB flash memory.
DTX-PROX also comes with a download code for the latest version of Cubase AI, the powerful music production software.
When you demand high-definition sounds, flagship performance and an undeniable stage presence, look no further than Yamaha DTX10K-M.
SKU | YAM-DTX10KMBFCD |
Vendor | Yamaha |
Connectivity | USB and MIDI |
Included From Manufacturer |
DTX-PROX module with module holder and wing bolts RS10-HXR rack XP125 SD-M 12" snare with SS662 stand XP125T-M 12" tom with CL940MB mounting clamp 2 × XP105T-M 10" toms with CL940MB mounting clamps RHH135 13" hi-hat with HS740A stand PCY155 15" crash cymbal with CH755 stand PCY135 13" crash cymbal with CH755 stand PCY175 17" ride cymbal with CH755 stand KP128 12" kick tower pad 10-channel cable Power supply |
MPN | DTX10K-M BF |
Product Unique Features |
30 click sets: 30 to 300 BPM, tap tempo supported, voice guide EQ, compressor, transient and insert effect for each instrument Ambience, two effects and master compressor for each kit Overall master EQ, headphone EQ |
Cymbal Choke Capability | Yes |
Number of Cymbal Zones | 3 Ride cymbal pad has positional sensing |
Number of Drum Kits | 70 preset kits 200 user kits |
Hi-Hat Stand Included | Yes |
Audio Inputs | 1/4" stereo auxiliary input 1/8" stereo auxiliary input |
Audio Outputs | Dual 1/4" stereo main output 4 × 1/4" TRS outputs, split to 8 total individual assignable mono outputs 1/4" stereo headphone output |
Number of Instrument Sounds | 733 |
Internal Storage Capacity | 1,000 files 50 minutes 40 seconds (44.1 kHz, 16 bit, mono) 25 minutes 20 seconds (44.1 kHz, 16 bit, stereo) |
Kick Pad Surface | 2-ply Remo head with 3-layer cushion |
Kick Pedal Included | Kick Pedal Included In Bundle |
Metronome | Yes |
Number of Pads | 9 |
Sampling | Sample import only |
Sequencer/Recording | Yes |
Snare Pad Zones/Surface | 2 |
Snare Stand Included | Yes |
Number of Songs/Patterns | 37 preset songs 1 user song Maximum of 90 seconds recording to internal memory Maximum of 90 minutes per file recording to USB flash drive |
Storage Type | USB;Internal |
Throne Included | Throne Included In Bundle |
Tom Pad Zones/Surface | 2 |
Trigger Inputs | 14 |
Yamaha Electronic Drums Limited Warranty
Thank you for selecting a Yamaha product. Yamaha products are designed and manufactured to provide a high level of defect-free performance. Yamaha Corporation of America ('Yamaha') is proud of the experience and craftsmanship that goes into each and every Yamaha product. Yamaha sells its products through a network of reputable, specially authorized dealers and is pleased to offer you, the Original Owner, the following Limited Warranty, which applies only to products that have been (1) directly purchased from Yamaha's authorized dealers in the fifty states of the USA and District of Columbia (the 'Warranted Area') and (2) used exclusively in the Warranted Area. Yamaha suggests that you read the Limited Warranty thoroughly, and invites you to contact your authorized Yamaha dealer or Yamaha Customer Service if you have any questions.
This warranty covers Yamaha Electronic Drums against defects in materials or workmanship for one (1) year.
Yamaha will, at its option, repair or replace the product covered by this warranty if it becomes defective, malfunctions or otherwise fails to conform with this warranty under normal use and service during the term of this warranty, without charge for labor or materials. Repairs may be performed using new or refurbished parts that meet or exceed Yamaha specifications for new parts. If Yamaha elects to replace the product, the replacement may be a reconditioned unit.
You will be responsible for any installation or removal charges and for any initial shipping charges if the product(s) must be shipped for warranty service. However, Yamaha will pay the return shipping charges to any destination within the USA if the repairs are covered by the warranty.
This warranty does not cover (a) damage, deterioration or malfunction resulting from accident, negligence, misuse, abuse, improper installation or operation or failure to follow instructions according to the Owner's Manual for this product; any shipment of the product (claims must be presented to the carrier); repair or attempted repair by anyone other than Yamaha or an authorized Yamaha Service Center; (b) any unit which has been altered or on which the serial number has been defaced, modified or removed; (c) normal wear and any periodic maintenance; (d) deterioration due to perspiration, corrosive atmosphere or other external causes such as extremes in temperature or humidity; (e) damages attributable to power line surge or related electrical abnormalities, lightning damage or acts of God; or (f) RFI/EMI (Interference/noise) caused by improper grounding or the improper use of either certified or uncertified equipment, if applicable.
Any evidence of alteration, erasing or forgery of proof-of-purchase documents will cause this warranty to be void. This warranty covers only the Original Owner and is not transferable.
Warranty service will only be provided for defective products within the Warranted Area. Contact your local authorized Yamaha dealer who will advise you of the procedures to be followed. If this is not successful, contact Yamaha directly. Yamaha may request that you send the defective product to a local authorized Yamaha Servicer or authorize return of the defective product to Yamaha for repair. If you are uncertain as to whether a dealer has been authorized by Yamaha, please contact Yamaha's Service Department or check Yamaha's website.
Product(s) shipped for service should be packed securely and must be accompanied by a detailed explanation of the problem(s) requiring service, together with the original or a machine reproduction of the bill of sale or other dated, proof-of-purchase document describing the product, as evidence of warranty coverage. Should any product submitted for warranty service be found ineligible therefore, an estimate of repair cost will be furnished and the repair will be accomplished only if requested by you and upon receipt of payment or acceptable arrangement for payment.
Any implied warranties, including warranties of merchantability and fitness for a particular purpose shall be limited in duration to the applicable period of time set forth above. Yamaha shall not be responsible for incidental or consequential damages or for damages based upon inconvenience, loss of use, damage to any other equipment or other items at the site of use or interruption of performances or any consequences. Yamaha's liability for any defective product is limited to repair or replacement of the product, at Yamaha's option. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This is the only express warranty applicable to the product specified herein; Yamaha neither assumes nor authorizes anyone to assume for it any other express warranty.
