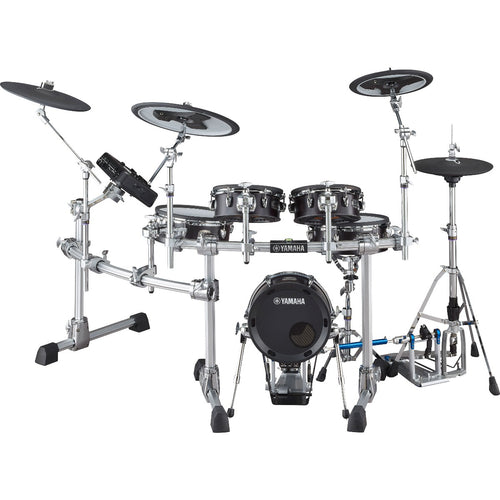

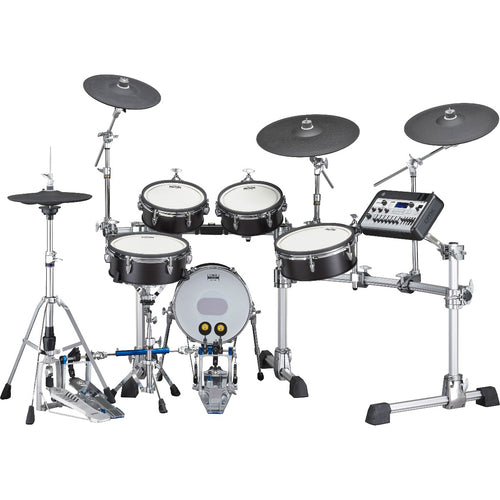

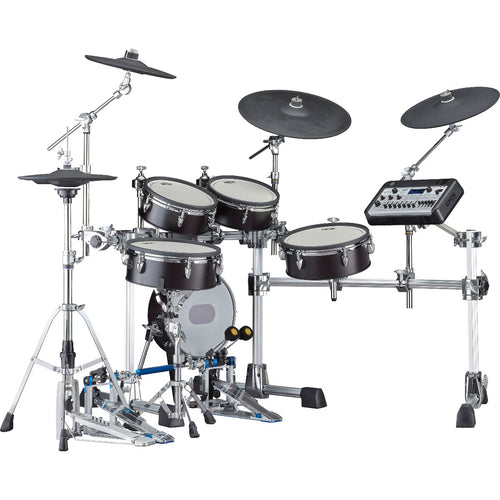

Yamaha DTX10K-X is a flagship model that combines the highest functionality of electronic drums with the beauty of acoustic drums. The DTX-PROX module featuring Kit Modifier and LED rotary faders allows intuitive sound adjustments with the simple twist of a knob, giving drummers engineer-level control. The real sound and ambience, the tactile feel of TCS pads and positional sensing on the snare and ride cymbal provide a natural feel and expressiveness. Real wood birch-wrapped shells handcrafted and stained in the same factory as Yamaha acoustic drums provide the presence and beauty of premium acoustic drums.
- Faithful reproduction of real sound and ambience recorded in world-renowned studios
- Use Kit Modifier AMBIENCE, COMP and EFFECT controls to create your own sound
- Use 'Live Set' capabilities to recall prearranged kits, tempos and audio files with one touch
- LED rotary faders to change various settings quickly and intuitively
- Beautiful wood shells molded and finished at the Yamaha Drum factory
- Yamaha TCS heads provide a natural feel and rebound for enhanced playability
- Snare pad and 17" ride cymbal pad have hit point detection for more expressive playing
- Individual output terminals output up to eight sounds
- Aux input can input monitor sound from PA
- Connect wirelessly via Bluetooth to play along with songs
- USB terminal can send/input audio and MIDI data to smart devices or PC
- Built on Yamaha's interchangeable hardware, including the Hexrack system
- Record, edit and mix with included downloadable Cubase AI software
Kick pedal is not included.
DTX10K-X is the flagship of the DTX lineup, combining the functionality of electronic drums with the sheer beauty of their acoustic counterparts. No compromise has been made in recording the instrument sounds. The DTX-PROX sounds have been fine-tuned to naturally follow the drummer's performance and allow for maximum expression. Performances by leading Yamaha drums artists were recorded and mixed by a team of recording engineers to provide the final instrument samples in the module.
For Kit Modifier, the experience of Yamaha and its drum voicing that has been cultivated over many years has been condensed into three knobs: AMBIENCE, COMP and EFFECT. With the simple twist of a knob, it is possible to express a wide range of sounds from natural/acoustic to the unique sounds created by professional engineers and producers.

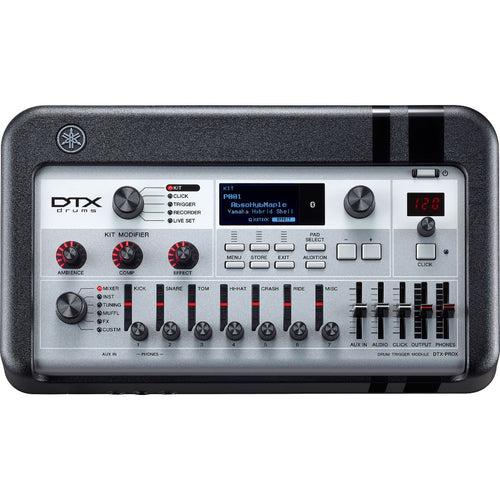

Seven LED rotary faders can be used to change the parameters of all the instruments. With the fader select knob you can select your preferred option from six presets (with 14 sub presets) and control it intuitively with the LED rotary faders. Additionally, the LED rotary faders can be used to control connected external devices and DAW software in studio and live situations.
Yamaha TCS (textured cellular silicone) heads feature a unique internal structure that provides a realistic response with realistic hardness and rebound, as well as a treated surface that prevents stick sliding. The result is a natural drum feel that encourages you to keep playing.
The pads feature wooden birch drum shells made and painted at Yamaha acoustic drum factories. The badges, lugs and hoops are also standard acoustic drum parts. These shells offer the presence and beauty of authentic acoustic drums and give this kit great stage appeal.
The KP128 kick pad uses a two-ply Remo head and features a unique three-layer cushion structure that offers the perfect feel with unparalleled comfort, regardless of the strength of the stroke. Everything from light hits to strong hits is equally comfortable to play. The 12" playing surface boasts both presence and portability, while the whole bass drum structure is incredibly stable and durable.
All cymbal pads feature 3 zones – meaning they produce different sounds at the edge, bow and cup – as well as choke and mute functionality. The ride cymbal is equipped with a hit point detection function, allowing it to reproduce delicate stick work.
RS10-HXR is the DTX10 series rack system featuring Hex Rack II, a rack system for acoustic drums. Its appearance boasts an overwhelming presence that looks great everywhere, especially on stage.

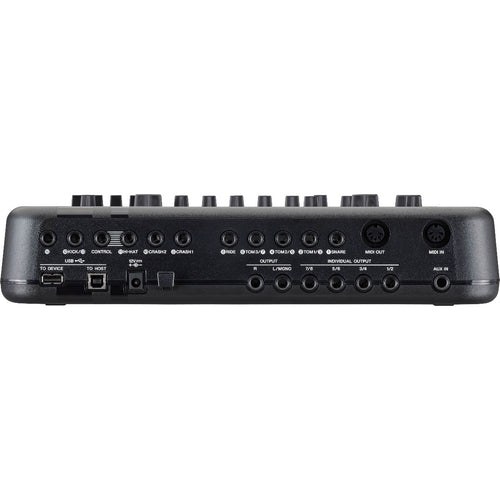

Suitable for everything from playing at home to performing live and recording, the DTX-PROX module is equipped with eight individual outputs and a matrix that allows routing sounds to any output. The aux in jack sockets can receive the monitor signal from a PA system and can also be routed to different locations. The USB port can be directly connected to a computer or smart device with a cable to send and receive audio and MIDI. Furthermore, it's equipped with MIDI in/out to allow you to connect to MIDI devices. The Bluetooth function allows you to easily connect smart devices, and you can also record your playing and audio from other devices to USB flash memory.
DTX-PROX also comes with a download code for the latest version of Cubase AI, the powerful music production software.
When you demand high-definition sounds, flagship performance and an undeniable stage presence, look no further than Yamaha DTX10K-X.
|Connectivity||USB and MIDI|
|Included From Manufacturer||
DTX-PROX module with module holder and wing bolts
XP125 SD-X 12" snare with SS662 stand
XP125T-X 12" tom with CL940MB mounting clamp
2 × XP105T-X 10" toms with CL940MB mounting clamps
RHH135 13" hi-hat with HS740A stand
PCY155 15" crash cymbal with CH755 stand
PCY135 13" crash cymbal with CH755 stand
PCY175 17" ride cymbal with CH755 stand
KP128 12" kick tower pad
|Product Unique Features||
30 click sets: 30 to 300 BPM, tap tempo supported, voice guide
EQ, compressor, transient and insert effect for each instrument
Ambience, two effects and master compressor for each kit
Overall master EQ, headphone EQ
|Cymbal Choke Capability||Yes|
|Number of Cymbal Zones||
Ride cymbal pad has positional sensing
|Number of Drum Kits||
70 preset kits
200 user kits
|Hi-Hat Stand Included||Yes|
1/4" stereo auxiliary input
1/8" stereo auxiliary input
Dual 1/4" stereo main output
4 × 1/4" TRS outputs, split to 8 total individual assignable mono outputs
1/4" stereo headphone output
|Number of Instrument Sounds||733|
|Internal Storage Capacity||
50 minutes 40 seconds (44.1 kHz, 16 bit, mono)
25 minutes 20 seconds (44.1 kHz, 16 bit, stereo)
|Kick Pad Surface||2-ply Remo head with 3-layer cushion|
|Kick Pedal Included||No|
|Number of Pads||9|
|Sampling||Sample import only|
|Snare Pad Zones/Surface||2 zones with positional sensing|
|Snare Stand Included||Yes|
|Number of Songs/Patterns||
37 preset songs
1 user song
Maximum of 90 seconds recording to internal memory
Maximum of 90 minutes per file recording to USB flash drive
|Tom Pad Zones/Surface||2|
