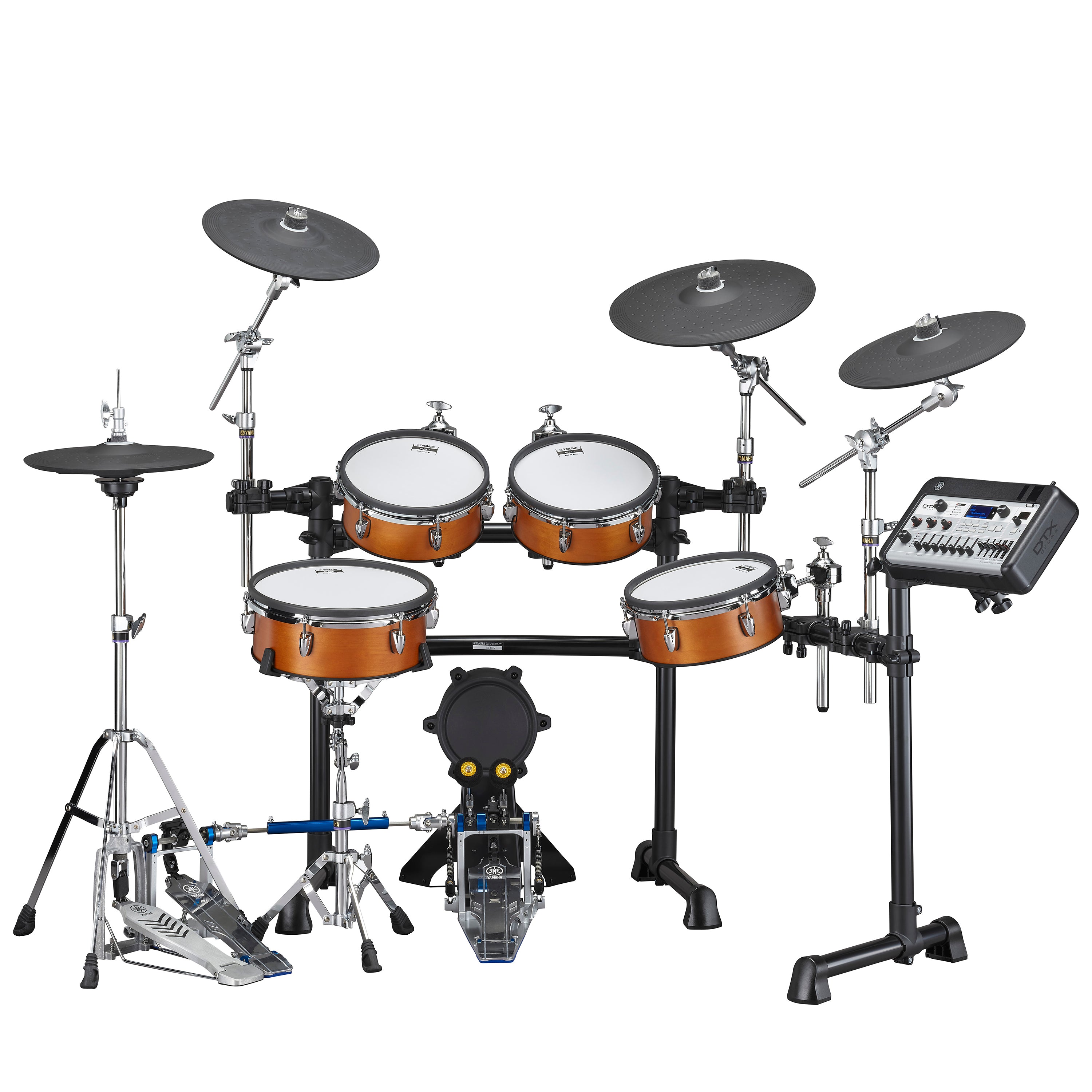

The DTX8K PROX Series brings the power of the flagship DTX-PROX Module together with the DTX8 Series pad and cymbal configuration, combining the highest level of functionality in electronic drums with the beauty, and durability of their acoustic counterparts. No compromise has been made in recording the sound of the instruments themselves. The DTX PROX sounds have been fine-tuned to naturally follow the drummer’s performance and allow for maximum expression.
- DTX-PROX Module with 100 preset kits, including Yamaha Recording Custom and PHX sounds
- Dual-layer Remo mesh pads with tunable rebound and a snare that captures every nuance.
- High-quality samples recorded with Yamaha artists and professional engineers for natural expression
- Kit Modifier controls: Ambience, Compression, and Effect knobs for instant sound shaping
- Seven LED rotary faders with six presets (14 sub-presets) for intuitive parameter control and DAW integration
- Connectivity includes 8 individual outputs, flexible routing matrix, AUX IN, USB audio/MIDI, MIDI IN/OUT, Bluetooth, and USB recording
- Remo two-ply mesh heads for tunable feel and low noise
- Birch drum shells with acoustic drum lugs, hoops, and finishes for authentic look and presence
- Cymbal pads with three zones (edge, bow, cup), choke/mute functionality, and 15” ride cymbal with hit-point detection
- Advanced USB audio/MIDI streaming for direct connection to devices and Rec’n’Share app
- Extra inputs for hybrid setups, layering up to four sounds per pad with dual effects processing
- Professional features designed for rehearsals, live shows, and recording
Studio-Quality Sounds
Performances by leading Yamaha drums artists were recorded and mixed by a team of recording engineers to provide the final instrument samples in the module. With the Version 2 update the module now features 100 different preset kits, including the sounds of the Yamaha Recording Custom and PHX drum sets.
Kit Modifier Controls
In the KIT MODIFER, the experience of Yamaha and our voicing that has been cultivated over the years, has been condensed into three knobs: Ambience, Compression, and Effect. With the simple twist of a knob, it is possible to express a wide range of sounds, from natural acoustic to the unique sounds created by professional engineers and producers.
LED Rotary Faders
The seven LED rotary faders can be used to change the parameters of all the instruments. With the fader select knob, you can select your preferred option from six presets (with 14 sub presets) and control it intuitively with the LED rotary faders. Additionally, the LED rotary faders can be used to control connected external devices and DAW software, in studio and live situations.
Connectivity
With unparalleled sounds, functionality, and stage presence the DTX8K-PROX Series is recommended for all drummers looking for a superior performance when rehearsing, performing live or recording. The module is equipped with 8 individual outputs and a matrix that allows routing to any output. The AUX IN jack sockets can receive the monitor signal from a PA system and can also be routed to different locations. The USB port can be directly connected to a computer or smart device with a cable to send and receive audio and MIDI. Furthermore, it's equipped with MIDI IN/OUT to allow you to connect to MIDI devices. The Bluetooth function allows you to easily connect smart devices, and you can also record your performance, and audio from other devices, to a USB flash memory.

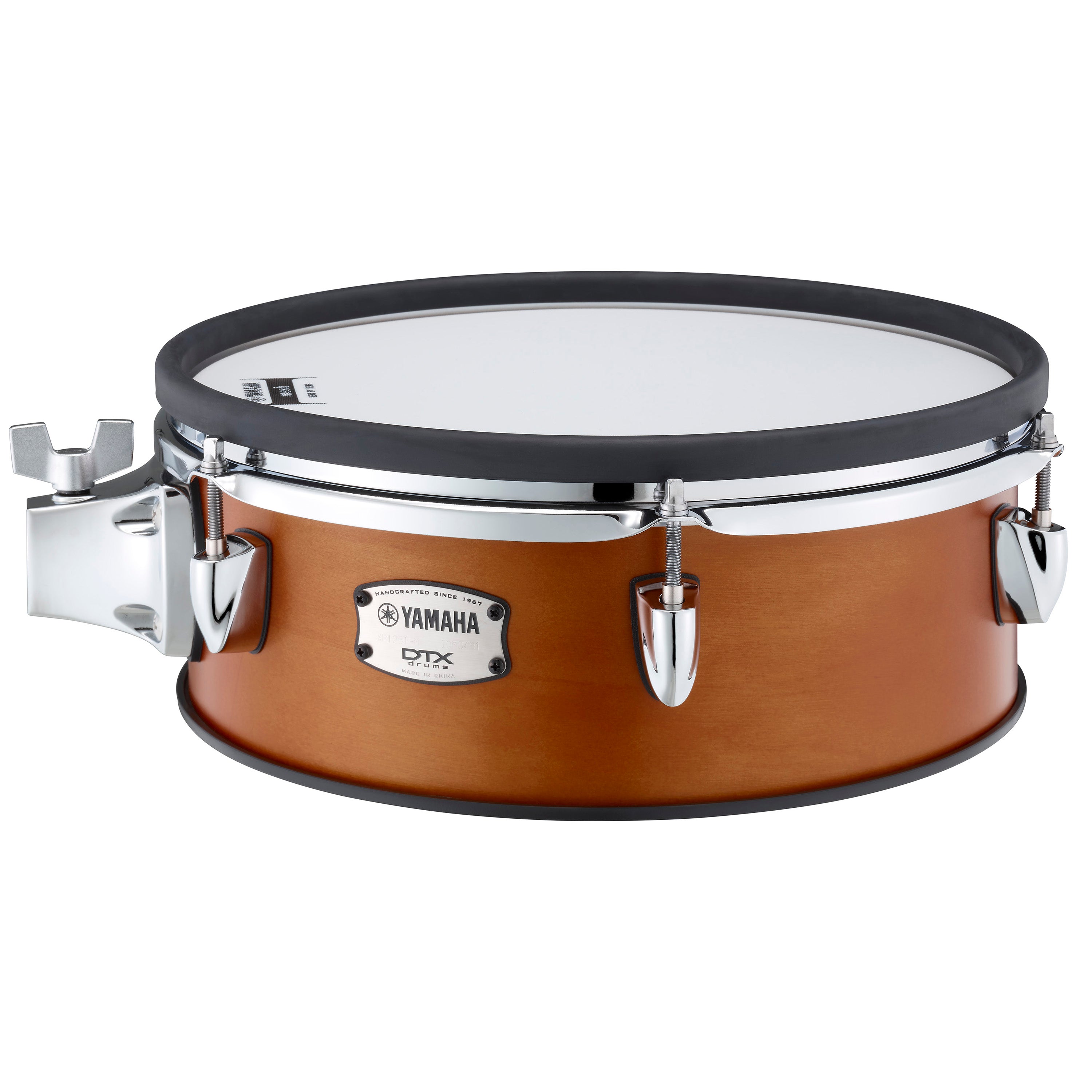

Mesh Drum Pads

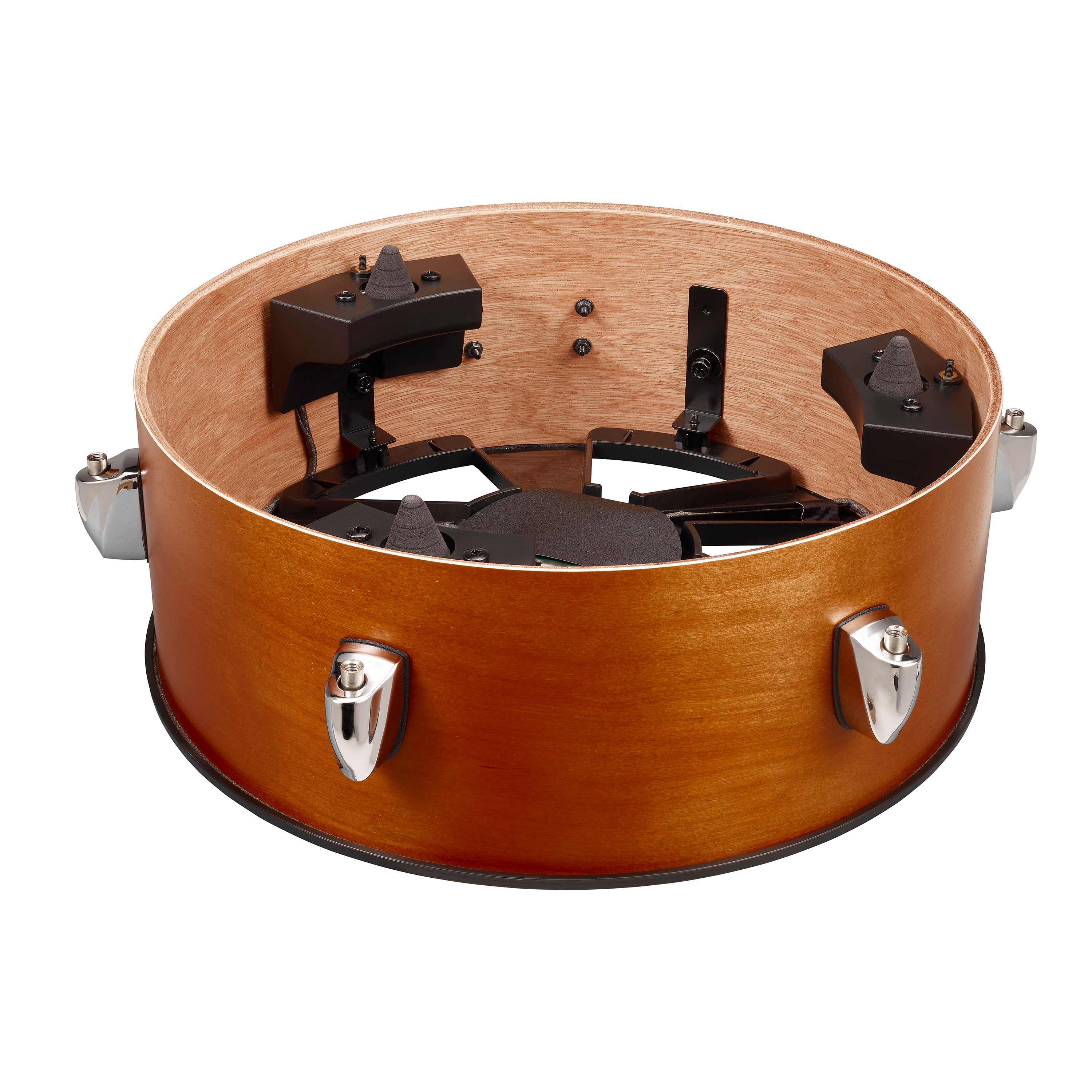

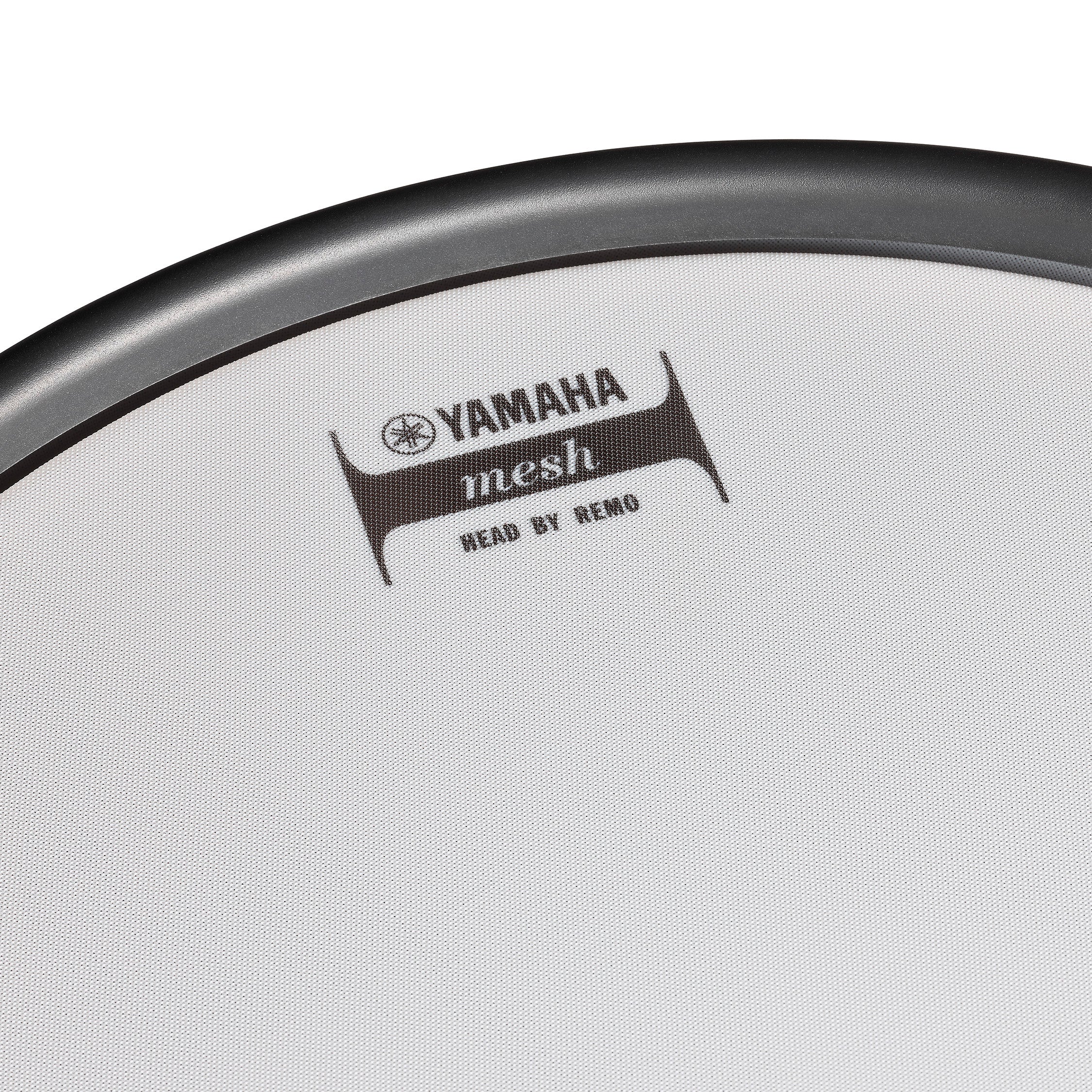

Yamaha's mesh pads sport dual-layer Remo heads for superior durability, quiet play, and a natural, responsive feel. Tunable to your liking, they offer a satisfying rebound that keeps every hit comfortable. The snare pad features three precision sensors that capture even the subtlest stick movements with accuracy.
Acoustic-Style Design
The pads feature wooden birch drum shells which are made and painted at Yamaha acoustic drum factories. The badges, lugs, and hoops are also standard acoustic drum parts. These shells offer the presence and beauty of authentic acoustic drums and give the drums a greater presence and stage appeal.
Cymbal Pads
All cymbal pads feature 3-zones, meaning they all produce different sounds at the edge, bow, and cup, as well as choke and mute functionality. The 15” ride cymbal comes equipped with a hit point detection function allowing them to reproduce delicate stick work.
Recording and Streaming
Advanced streaming USB audio and MIDI information allows connectivity to numerous devices for recording, streaming and the Rec’n’Share app without additional input gear. Create high-quality videos for your socials without leaving the drum throne. The module includes individual inputs allowing for hybrid setups or easily augmenting the kit with more pads.
Creative Layering
The ability to layer up to four sounds per pad, along with stacking two different effects ignites creativity and allows you to customize your sound with professional studio quality.
For Stage and Studio
When you demand high-definition sounds, flagship performance and a configuration that is build for both stage and studio, look no further than the DTX8K-PROX Series.
| Specification | Value |
|---|---|
| SKU | YAM-DTX8KMPXRW |
| Model Name | DTX8K-M PX RW |
| Vendor | Yamaha |
| Connectivity | USB and MIDI (Out Only) |
| Included From Manufacturer |
DTX-PROX module with module holder and wing bolts RS8 rack XP125 SD-X 12" snare with SS662 stand 3 × XP105T-X 10" toms with CL940MB mounting clamps RHH135 13" hi-hat with HS740A stand 2 × PCY135 13" crash cymbals with CH755 stands PCY155 15" ride cymbal with CH755 stand KP90 7.5" kick tower 10-channel cable Power supply |
| MPN | DTX8K-M PX RW |
| Number of Drum Kits |
100 preset kits 200 user kits |
| Number of Instrument Sounds | 733 |
| Number of Songs/Patterns |
37 preset songs 1 user song Maximum of 90 seconds recording to internal memory Maximum of 90 minutes per file recording to USB flash drive |
| Number of Pads | 9 |
| Snare Pad Zones/Surface | 2 zones with positional sensing / Mesh |
| Tom Pad Zones/Surface | 2 zones / Mesh |
| Number of Cymbal Zones |
3 Ride cymbal pad has positional sensing |
| Cymbal Choke Capability | Yes |
| Kick Pad Surface | 2-ply Remo head with 3-layer cushion |
| Trigger Inputs | 14 |
| Hi-Hat Stand Included | Yes |
| Snare Stand Included | Yes |
| Kick Pedal Included | No |
| Throne Included | No |
| Sequencer/Recording | Yes |
| Sampling | Sample import only |
| Metronome | Yes |
| Internal Storage Capacity |
1,000 files 50 minutes 40 seconds (44.1 kHz, 16 bit, mono) 25 minutes 20 seconds (44.1 kHz, stereo) |
| Storage Type | USB;Internal |
| Audio Inputs |
1/4" stereo auxiliary input 1/8" stereo auxiliary input |
| Audio Outputs |
Dual 1/4" stereo main output 4 × 1/4" TRS outputs, split to 8 total individual assignable mono outputs 1/4" stereo headphone output |
