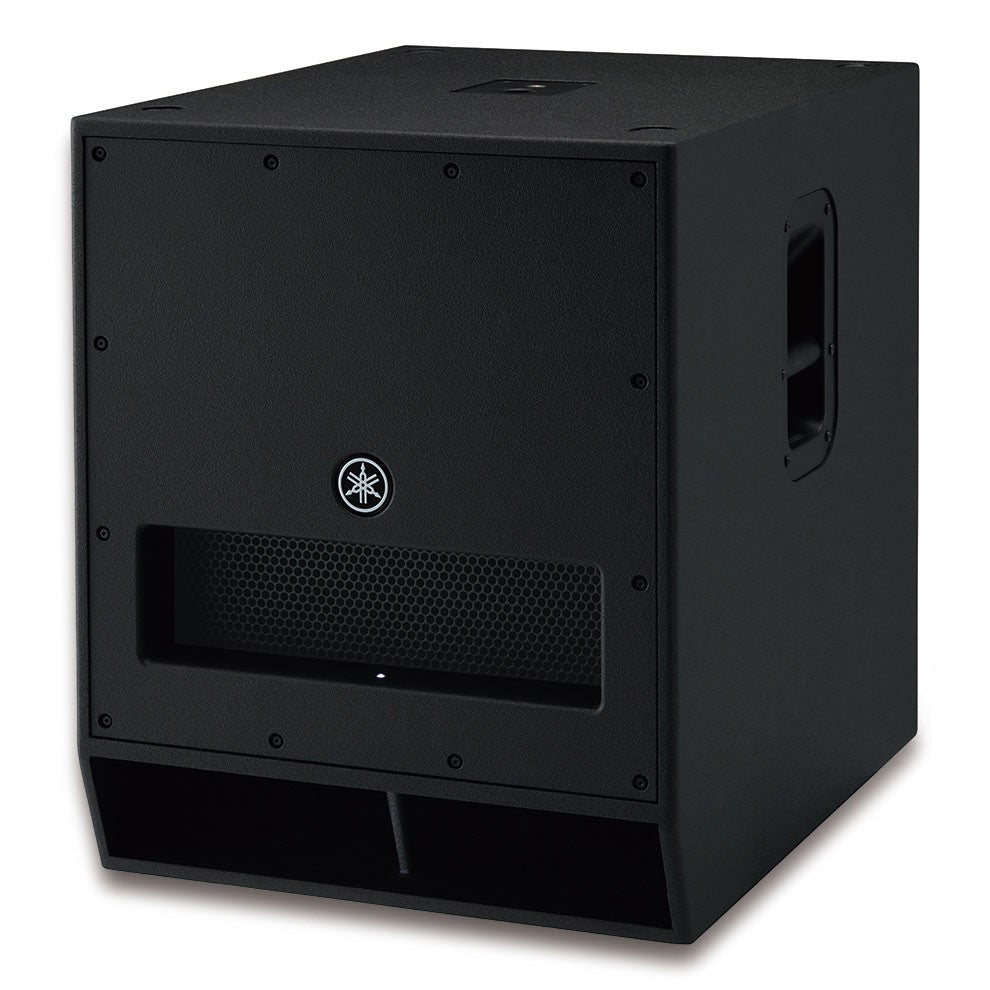

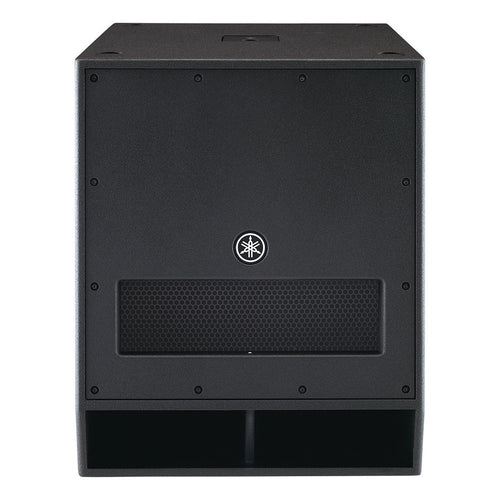

Yamaha DXS18 Subwoofer
SERIOUS. BASS. PERFORMANCE.
Prepare to make a lasting impression on your audience with the addition of DXS Series high-output, powered subwoofers to your sound reinforcement system. Featuring high-efficiency Class-D amplifiers and a customized woofer housed in a sturdy enclosure with a band-pass construction, DXS subwoofers are able to deliver up to 1020W of raw power with minimal distortion and superb clarity. Each of the three models that make up the series— the compact DXS12 and DXS15, as well as the new, high output DXS18—comes equipped with Yamaha state-of-the-art DSP processing, protection functions, and flexible crossover control, ensuring versatile management of your bottom end and seamless compatibility with Yamaha’s entire lineup of full-range powered speakers. DXS Series powered subwoofers offer a new level of flexibility, reliability, and power for engineers, artists and audiences that are serious about their bass.
High-Efficiency 1020W Class-D Amplifiers
The DXS’s high performance Class-D amplifier is capable of producing up to 1020W* of power, realizing an SPL of 136dB, delivered with exceptional clarity and accuracy. *DXS12 and DXS15 deliver 950W power.
Custom Designed Transducer
The high-output woofer features a 4" voice coil magnet and delivers powerful, well-defined, low-frequency bass with minimal distortion. *DXS12 and DXS15 feature 2.5" voice coil magnets.
Band-Pass Type Enclosure
he DXS Series has a band-pass design that produces extremely high SPL by drastically reducing the distortion.
Durable Wooden Enclosures with LINE-X Coating
The exteriors feature a LINE-X coating with extremely high damage resistance to protect the cabinet from scratches and wear, maintaining a professional appearance that can withstand many years of usage.
Selectable X-OVER(80/100/120Hz)
Crossover switching allows users to seamlessly match DXS subwoofers with any of Yamaha’s full-range powered speakers by selecting the cutoff frequency best suited to the models in their speaker array (up to 120Hz).
D-XSUB Bass Processing
Powerful D-XSUB processing gives you total control of your low frequency. NORMAL mode gives you the ideally balanced low-frequency response, while BOOST mode provides a more tight and focused bass. XTENDED LF mode drops the low-end frequencies down even further for thunderous bottom end that delivers. Take your full-range system to the next level with the power and versatility of DXS Series active subwoofers.
Cardioid Mode
Because low frequencies can be omnidirectional, controlling the output directivity of a system’s bottom end can be a challenge, with the sound pressure hitting the stage often being equal to that of it’s intended FOH audience. For setups consisting of two or more DXS18 subwoofers, selecting the newly developed Cardioid Mode function effectively decreases stage-side sound pressure while increasing the bottom-end output directed towards the audience, resulting in a clearer stage monitoring environment and a more pronounced bass experience out front. *Only for DXS18
Dual pole socket
For additional flexibility configuring your speakers, the DXS18 comes equipped with a dual pole socket that accommodates 35mm diameter speaker poles and M20 screws. *Only for DXS18
SKU | YAM-DXS18 |
Vendor | Yamaha |
Active Passive | Active |
Included From Manufacturer | Power Cable |
MPN | DXS18 |
Speaker Application | Subwoofer |
Speaker Size Filterable | 18 |

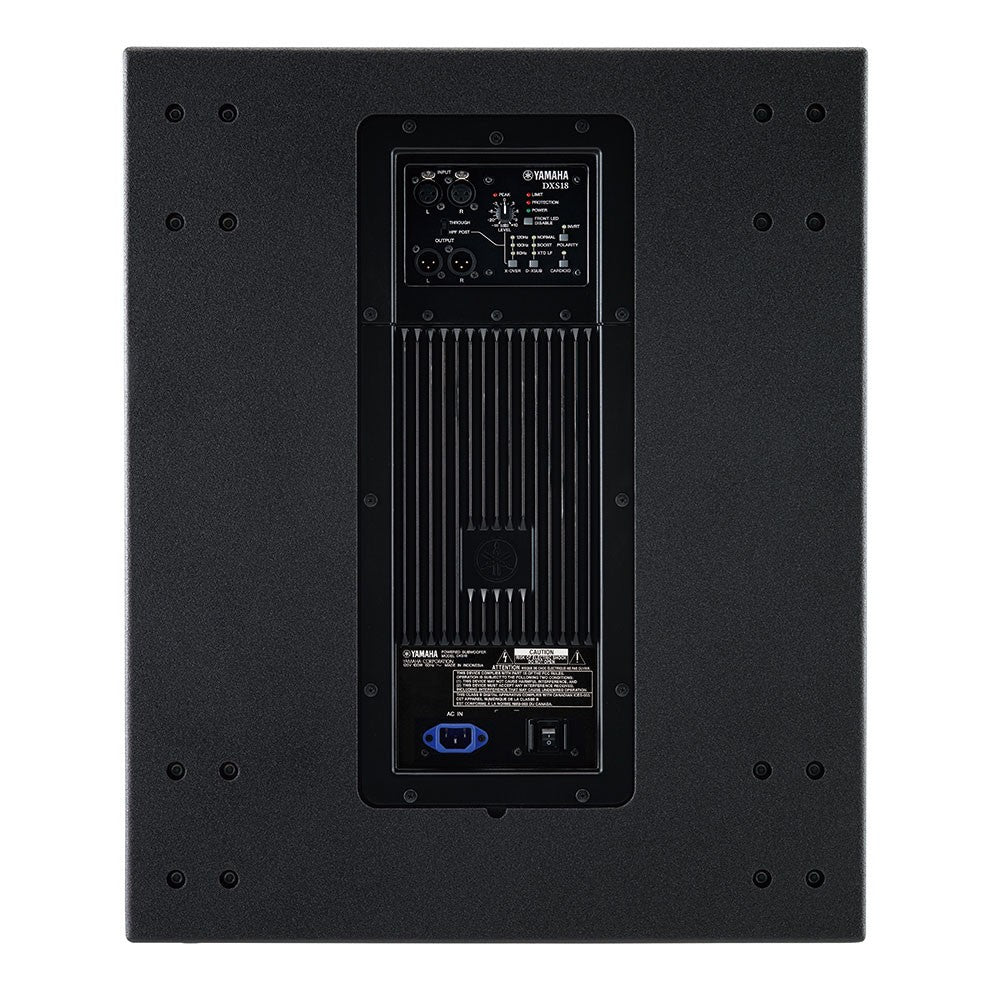

Connectors | (2) XLR3-31 (2) XLR-3-32 (Through or HPF Post) |
Covering Material | Line-X Coating |
Enclosure Material | Durable Wood Band-pass |
Frequency Range | 32Hz – 120Hz |
Frequency Response | 136dB SPL |
Pole Mount | No |
Power | Dynamic:1020W Continuous: 800W |
Product Weight | 110lbs |
Protection Circuit | No |
Width | 22.2" |
Depth | 28.4" |
Height | 26.8" |
Woofer/Low Frequency | 18" w/ 4" Voice Coil |
Yamaha Live Sound Products Limited Warranty
Thank you for selecting a Yamaha product. Yamaha products are designed and manufactured to provide a high level of defect-free performance. Yamaha Corporation of America ('Yamaha') is proud of the experience and craftsmanship that goes into each and every Yamaha product. Yamaha sells its products through a network of reputable, specially authorized dealers and is pleased to offer you, the Original Owner, the following Limited Warranty, which applies only to products that have been (1) directly purchased from Yamaha's authorized dealers in the fifty states of the USA and District of Columbia (the 'Warranted Area') and (2) used exclusively in the Warranted Area. Yamaha suggests that you read the Limited Warranty thoroughly, and invites you to contact your authorized Yamaha dealer or Yamaha Customer Service if you have any questions.
This warranty covers the listed products against defects in materials or workmanship for the following periods:
- DBR series powered loudspeakers: seven (7) years
- DSR series powered loudspeakers: seven (7) years
- DXR series powered loudspeakers: seven (7) years
- DXS series powered subwoofers: seven (7) years
- BR series passive loudspeakers: three (3) years
- CBR series passive loudspeakers: three (3) years
- Club series passive loudspeakers: three (3) years
- P series power amplifiers: three (3) years
- MSR series powered loudspeakers: three (3) years
- MG series mixers: one (1) year
- EMX series powered mixers: one (1) year
- STAGEPAS series PA system: one (1) year
- SPX/Q signal processors: one (1) year
- Loudspeaker accessories: one (1) year
- Other Yamaha live sound products: one (1) year
Yamaha will, at its option, repair or replace the product covered by this warranty if it becomes defective, malfunctions or otherwise fails to conform with this warranty under normal use and service during the term of this warranty, without charge for labor or materials. Repairs may be performed using new or refurbished parts that meet or exceed Yamaha specifications for new parts. If Yamaha elects to replace the product, the replacement may be a reconditioned unit. You will be responsible for any installation or removal charges and for any initial shipping charges if the product(s) must be shipped for warranty service. However, Yamaha will pay the return shipping charges to any destination within the USA if the repairs are covered by the warranty.
This warranty does not cover (a) damage, deterioration or malfunction resulting from accident, negligence, misuse, abuse, improper installation or operation or failure to follow instructions according to the Owner's Manual for this product; any shipment of the product (claims must be presented to the carrier); repair or attempted repair by anyone other than Yamaha or an authorized Yamaha Service Center; (b) any unit which has been altered or on which the serial number has been defaced, modified or removed; (c) normal wear and any periodic maintenance; (d) deterioration due to perspiration, corrosive atmosphere or other external causes such as extremes in temperature or humidity; (e) damages attributable to power line surge or related electrical abnormalities, lightning damage or acts of God; or (f) RFI/EMI (Interference/noise) caused by improper grounding or the improper use of either certified or uncertified equipment, if applicable.
Any evidence of alteration, erasing or forgery of proof-of-purchase documents will cause this warranty to be void. This warranty covers only the Original Owner and is not transferable.
Warranty service will only be provided for defective products within the Warranted Area. Contact your local authorized Yamaha dealer who will advise you of the procedures to be followed. If this is not successful, contact Yamaha directly. Yamaha may request that you send the defective product to a local authorized Yamaha Servicer or authorize return of the defective product to Yamaha for repair. If you are uncertain as to whether a dealer has been authorized by Yamaha, please contact Yamaha's Service Department or check Yamaha's website.
Product(s) shipped for service should be packed securely and must be accompanied by a detailed explanation of the problem(s) requiring service, together with the original or a machine reproduction of the bill of sale or other dated, proof-of-purchase document describing the product, as evidence of warranty coverage. Should any product submitted for warranty service be found ineligible therefore, an estimate of repair cost will be furnished and the repair will be accomplished only if requested by you and upon receipt of payment or acceptable arrangement for payment.
Any implied warranties, including warranties of merchantability and fitness for a particular purpose shall be limited in duration to the applicable period of time set forth above. Yamaha shall not be responsible for incidental or consequential damages or for damages based upon inconvenience, loss of use, damage to any other equipment or other items at the site of use or interruption of performances or any consequences. Yamaha's liability for any defective product is limited to repair or replacement of the product, at Yamaha's option.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This is the only express warranty applicable to the product specified herein; Yamaha neither assumes nor authorizes anyone to assume for it any other express warranty.
