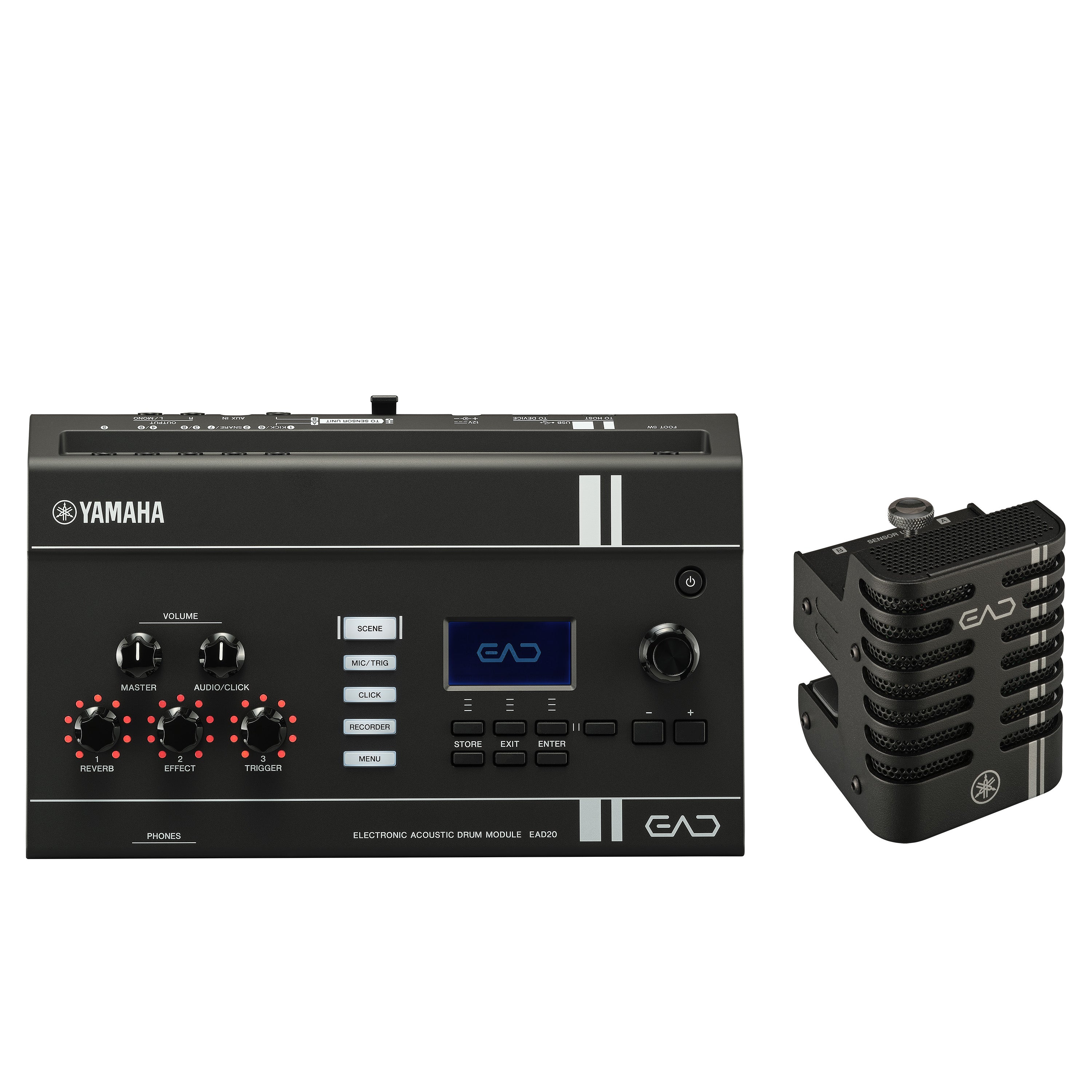

The Yamaha EAD20 is an electronic acoustic drum module that takes the fuss out of miking a kit by folding microphones, cables, and mixing into a single unit you can set up in minutes. At its core sits the SWX100 sound engine, the same processing chip found in Yamaha's flagship EAD50, so the tones and effects here are drawn from a genuinely professional platform. A sensor unit clamps to the bass drum hoop to capture a clean stereo image of the whole kit, while a built-in kick trigger lets you layer samples in time with your acoustic playing. With 2,203 voices, 252 digital effects, and onboard looping and sampling, it works as a recording rig, a live miking solution, and a creative sandbox all at once. The EAD20 is aimed squarely at intermediate and advanced drummers who want studio-quality capture and electronic expandability without wrestling a rack of gear.
Miking a drum kit usually means a pile of stands, cables, and a mixer to juggle before you ever hit record. The EAD20 gathers all of that into a single module and sensor unit, so a full setup takes minutes instead of an afternoon. Whether you are tracking at home, running a virtual lesson, or plugging into a venue's system, the signal chain stays simple and repeatable. That means less time troubleshooting gear and more time actually playing.
The EAD20 runs on the SWX100 sound engine, the same processing found in Yamaha's top-tier EAD50, paired with 512-note polyphony for full, layered performances. A stereo condenser microphone built around Japanese-made custom capsules captures a detailed, well-balanced picture of your kit with real clarity. With 2,203 voices and 252 digital effects on tap, you can shape everything from natural room ambience to fully processed hybrid tones. The result is a professional sound whether you are recording, streaming, or performing live.

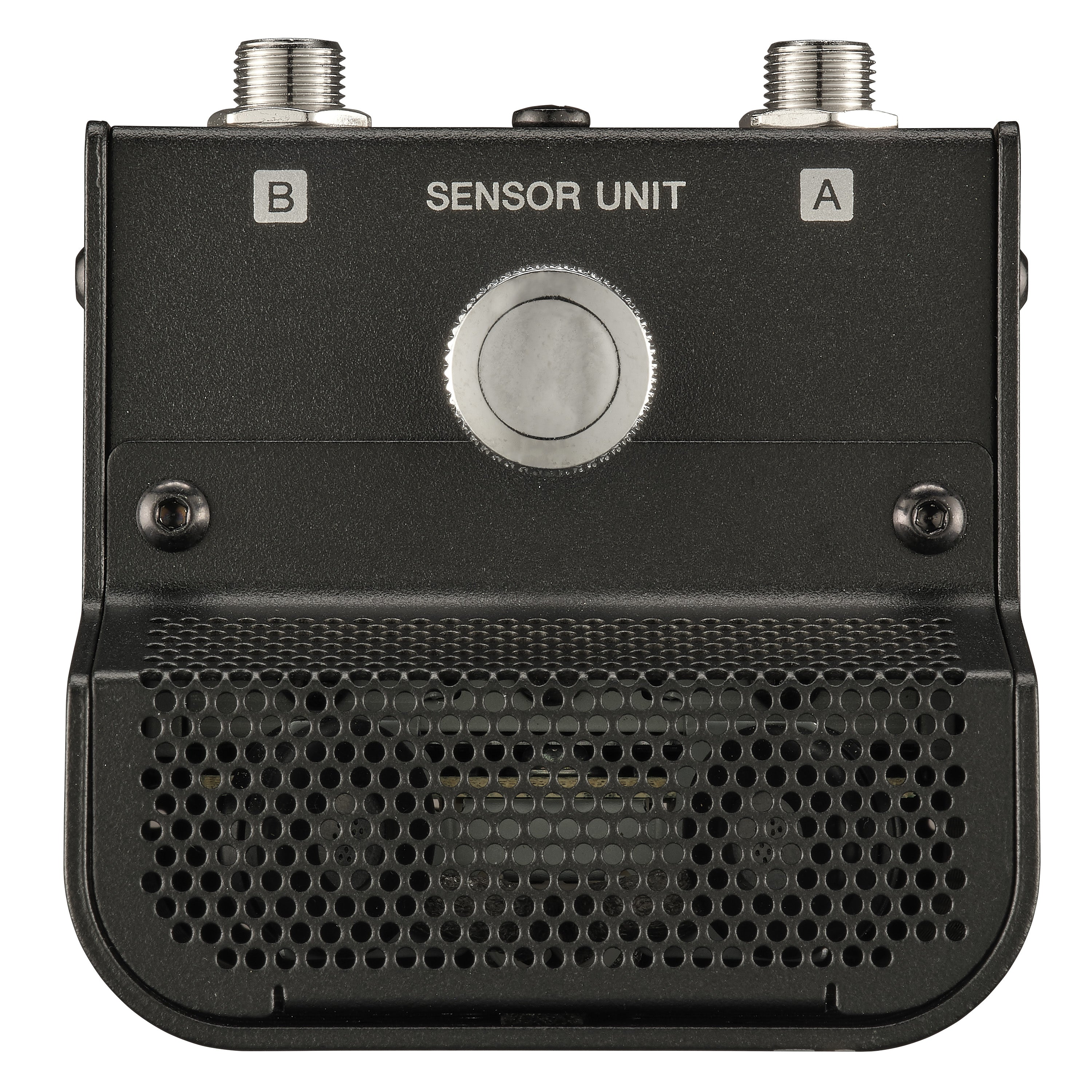

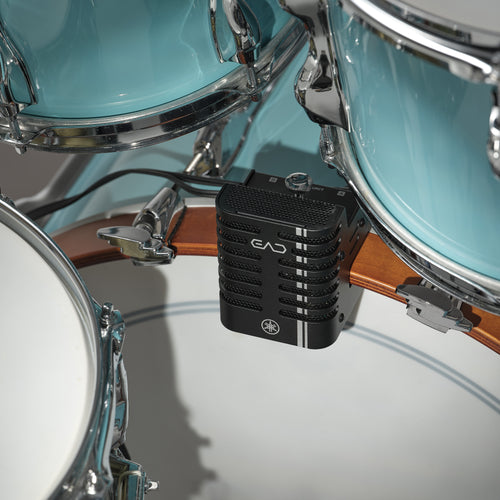

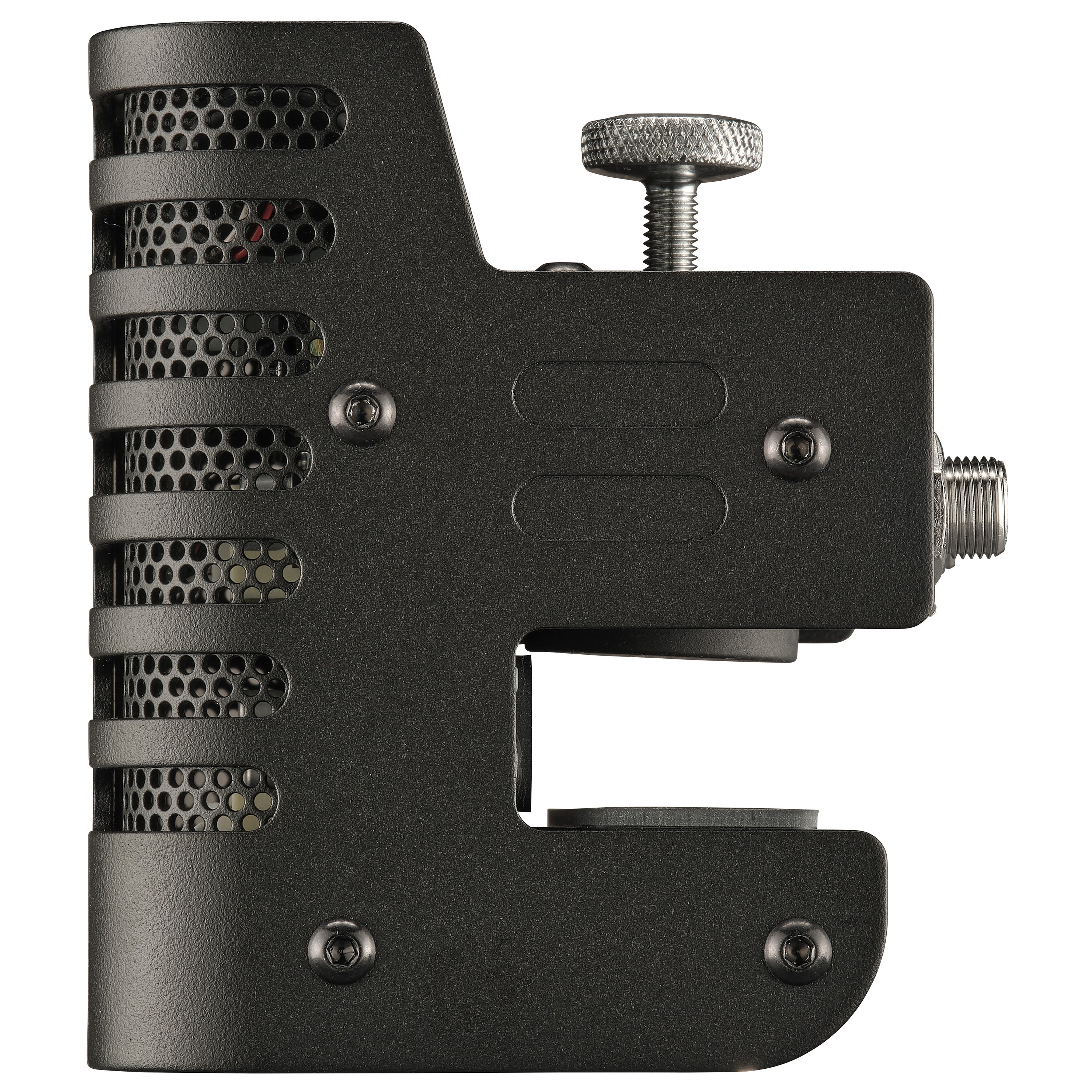

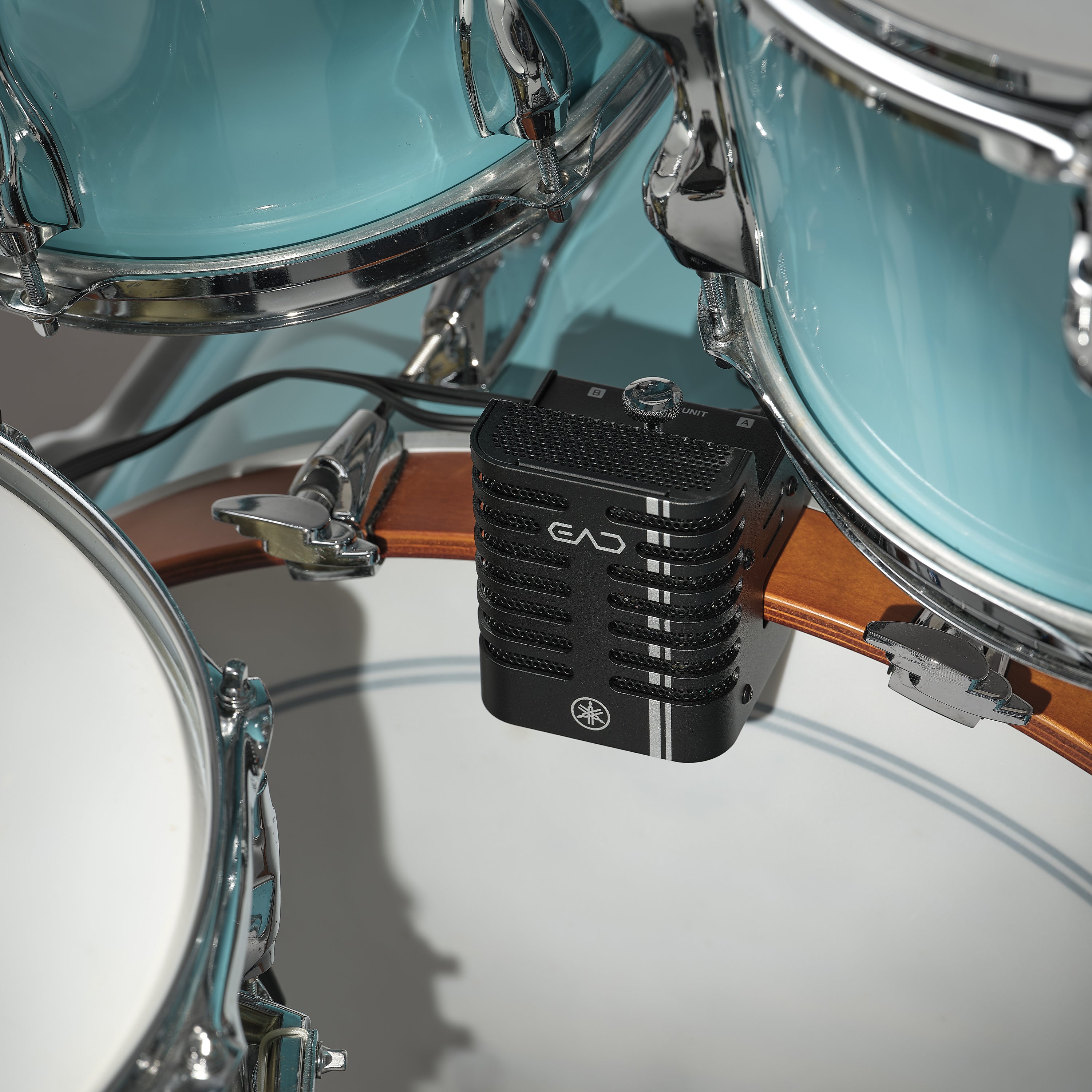

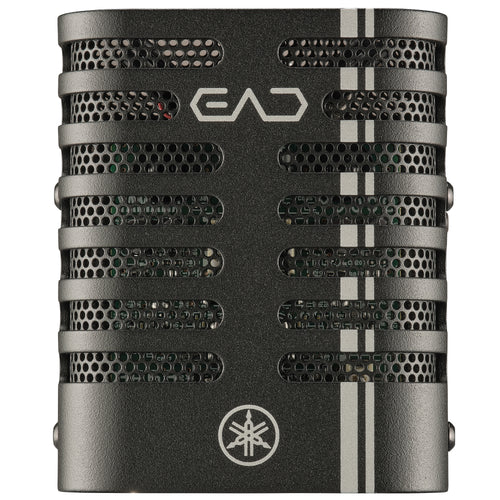

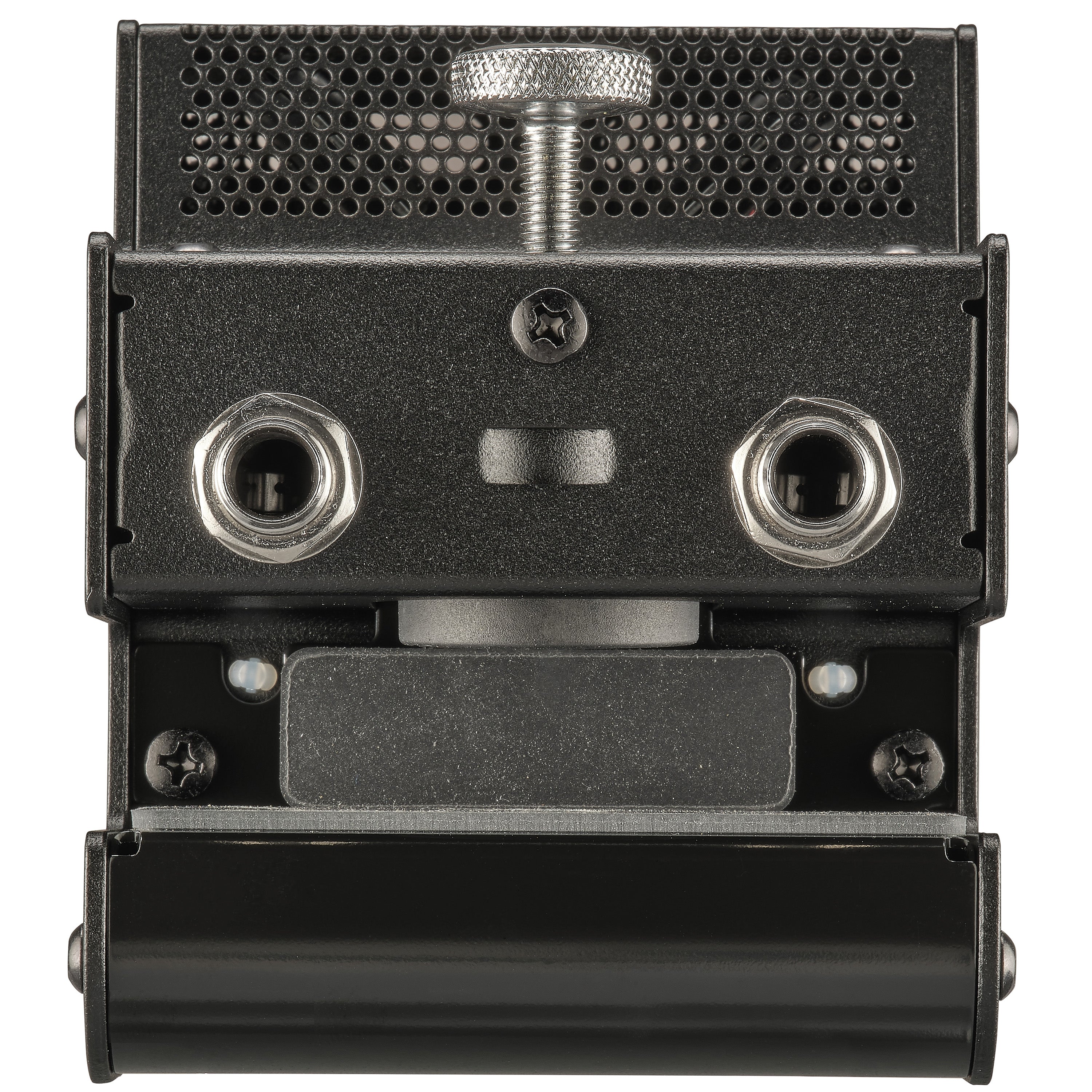

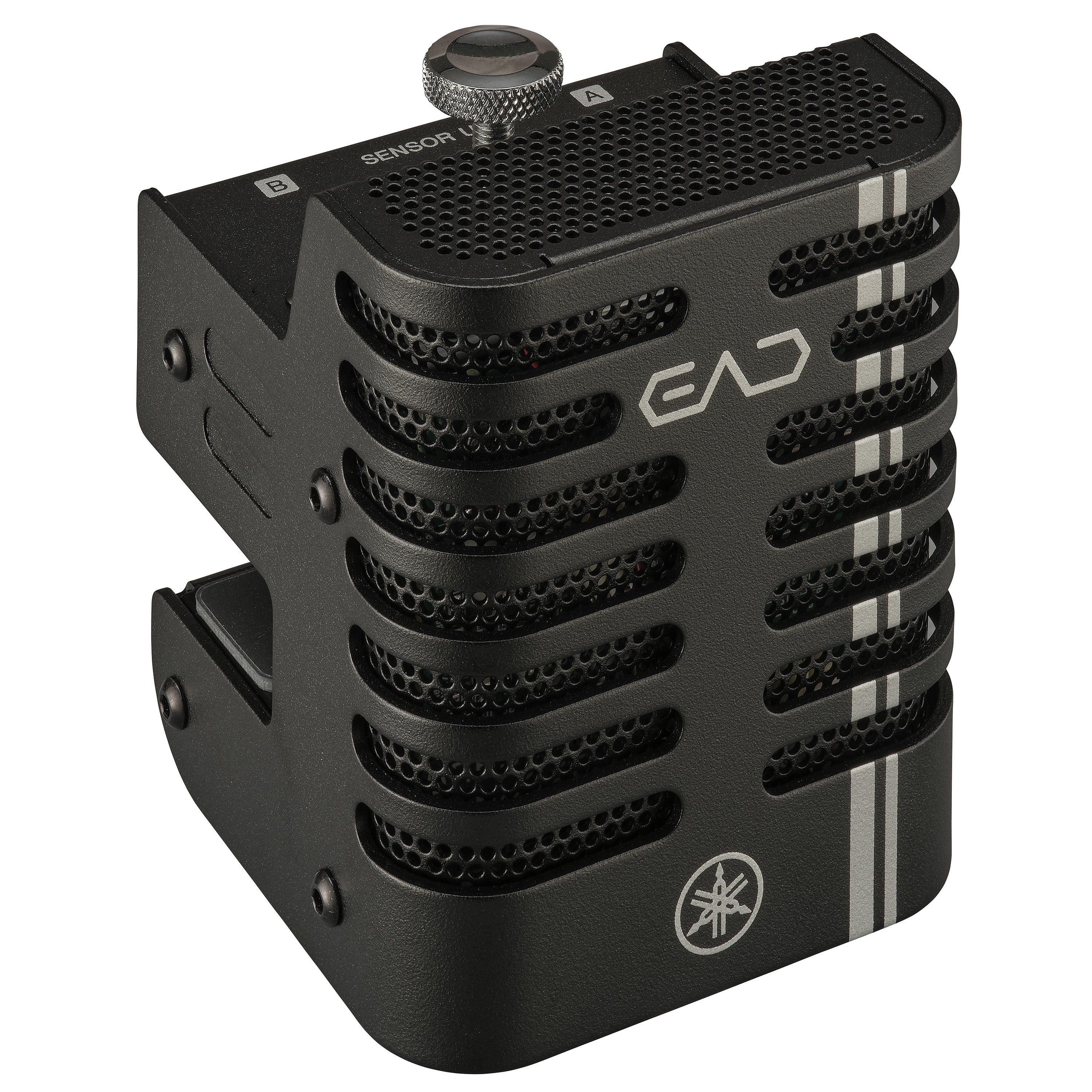

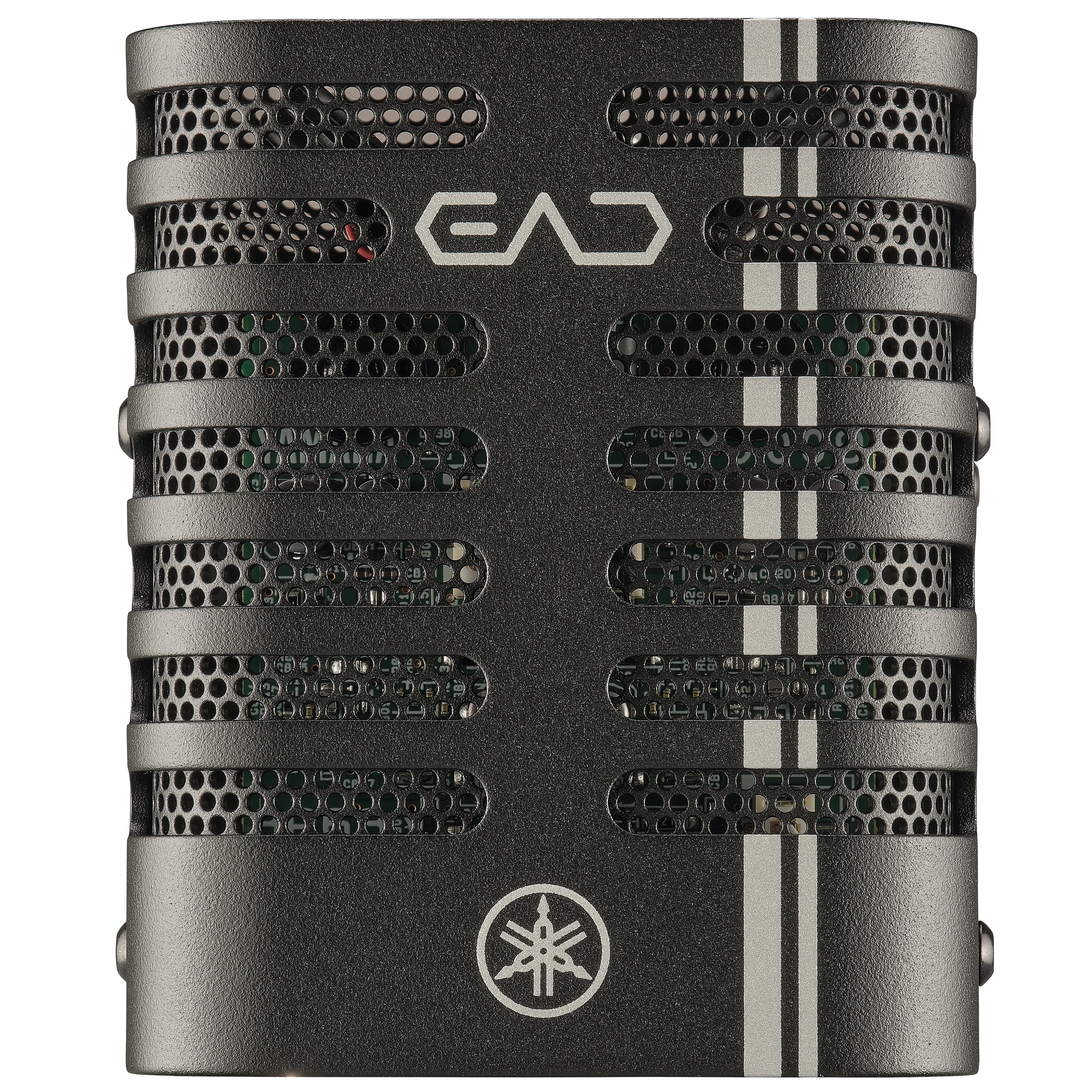

The sensor unit clamps onto virtually any acoustic bass drum hoop and pulls double duty. As a microphone it captures a clean stereo image of your entire kit, and as a trigger it turns every kick strike into a precise signal the module can read. That lets you layer electronic samples in perfect time with your acoustic playing, blending real and sampled sounds seamlessly. It is a genuinely clever piece of engineering that opens up hybrid drumming without committing to a full electronic conversion.
With six inputs onboard and room for up to nine triggers using splitters, the EAD20 grows alongside your setup as you add pads and cymbals. Its four additional splittable trigger inputs work with single-zone, dual-zone, three-zone, and multi-piezo pads, including gear from other brands, so you are not locked into one ecosystem. An 8-in/10-out USB audio interface sends multitrack audio straight to your computer, while MIDI out ties the module into your DAW of choice. Add USB Trigger Link for loading samples and backing up data, and this becomes the hub of a serious hybrid kit.

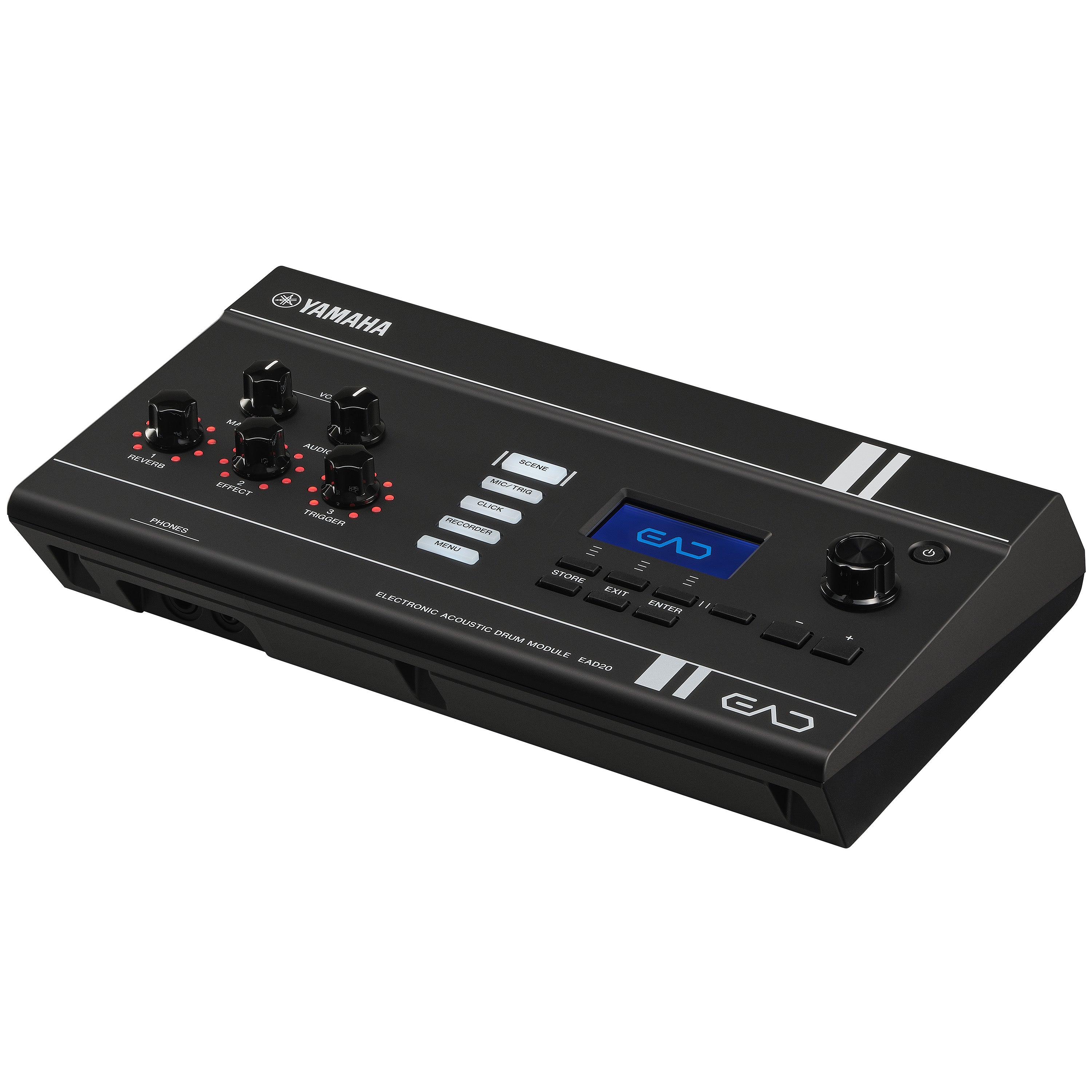

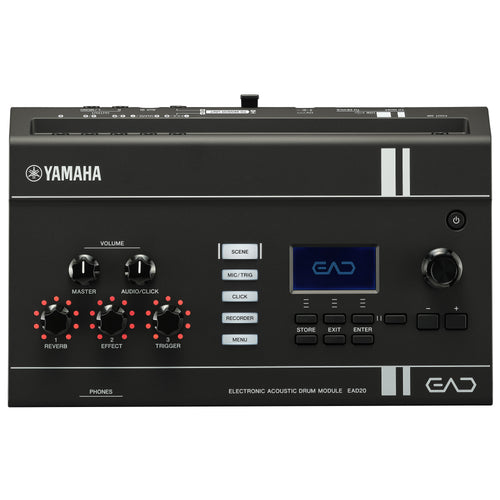

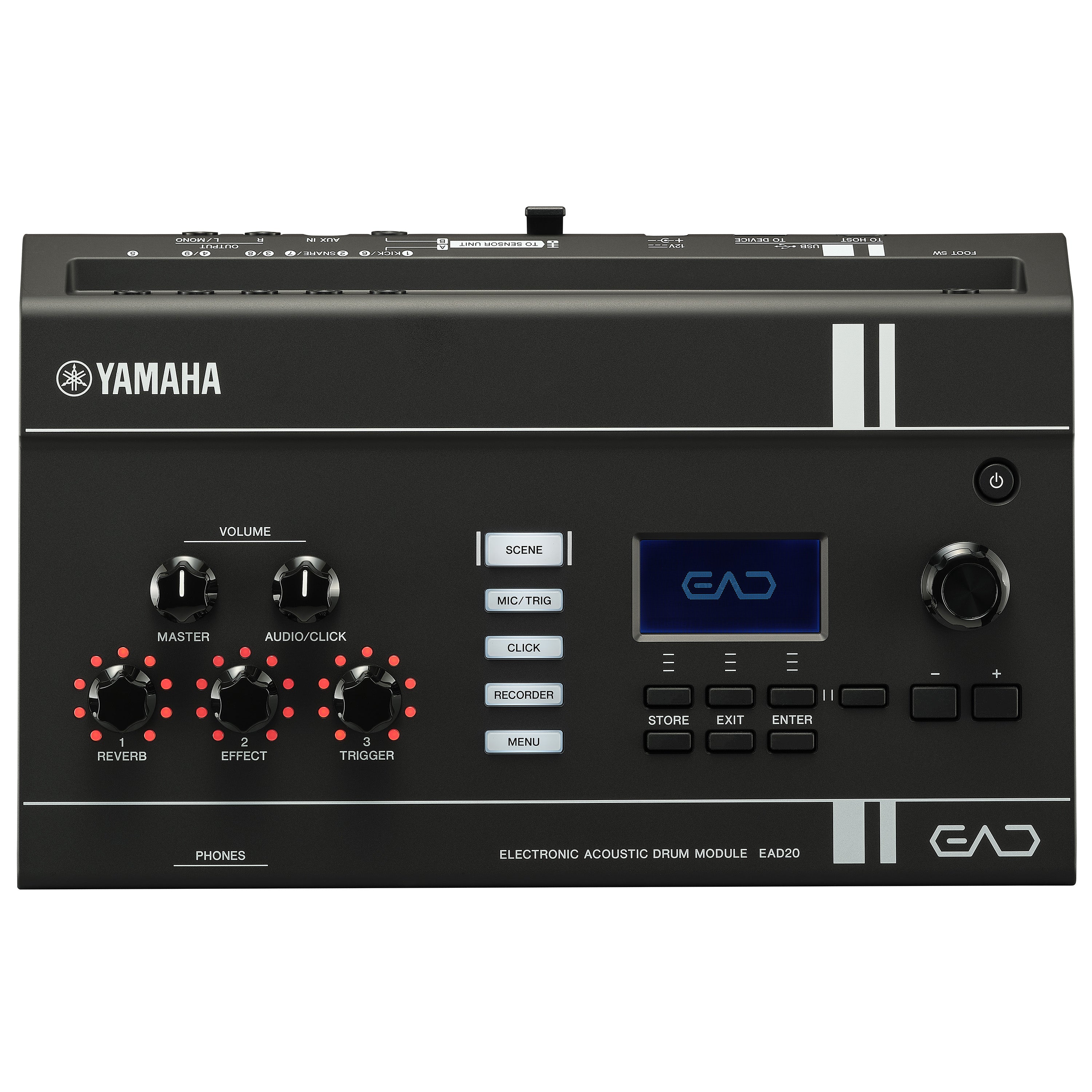

Assignable Kit Modifier knobs and LED rotary faders put reverb, gain, and effects right at your fingertips, so you can reshape your sound mid-song without stopping. The free EAD Touch app for iOS and Android extends that control to your phone or tablet, making deeper edits and data management quick and painless. Adjustments feel immediate and intuitive rather than buried in menus. It is the kind of hands-on control that keeps you focused on playing.
Onboard looper, sampler, and playback tools let you build layers and chase ideas right from the module. The free Rec'n'Share app makes it easy to shoot, edit, and upload videos of your performances to your favorite platforms. Combined with 251 scenes across 51 preset kits and 200 user slots, you have plenty of room to save your own creations and keep the ideas moving. For anyone building a content library or refining original material, these tools turn practice into publishable work.
The EAD20 is an electronic acoustic drum module that combines microphones, cables, and mixing into one easy setup, so you can mic your acoustic kit without the usual mess. A single sensor unit clips onto your bass drum hoop and captures a full stereo image of your kit while also acting as a kick trigger. It gives you clean recordings, amplified live sound, and access to thousands of electronic voices from one compact system.
It is designed for drummers who want to record, perform live, or create content without building a complicated mic setup. It fits players moving between studios, stages, virtual lessons, and home recording. If you want professional drum sound with minimal gear and setup time, it is built for you.
Both modules run the same SWX100 sound engine and share creative tools like the looper, sampler, and playback, so the core sound quality and feel are closely matched. The EAD50 is the higher-spec flagship module, offering more trigger inputs and multiple balanced XLR outputs that let you send separate drum and effect channels to a PA. The EAD20 delivers that same flagship sound engine and many of the features through 1/4" stereo outputs plus an 8in/10out USB audio interface for recording. The primary reason to step up to EAD-50 is the need for more physical inputs and outputs.
Both modules run the same SWX100 sound engine and share creative tools like the looper, sampler, and playback, so the core sound quality and feel are closely matched. The EAD50 is the higher-spec flagship module, offering more trigger inputs and multiple balanced XLR outputs that let you send separate drum and effect channels to a PA. The EAD20 delivers that same flagship sound engine through 1/4" stereo or mono outputs plus an 8in/10out USB audio interface, making it a streamlined choice for intermediate to advanced drummers focused on recording, practice, and performance in smaller venues.
Yes. It functions as an 8in/10out USB audio interface, letting you record sessions directly into your DAW without additional hardware. It also includes MIDI out for easy DAW integration and a USB Trigger Link function for loading samples and backing up your data.
The EAD20 lets you add up to nine total triggers using splitters, plus a foot trigger, giving you plenty of room to build a hybrid acoustic and electronic setup. The integrated trigger inputs work across a wide range of pads, including single-zone, dual-zone, three-zone, and multi-piezo types, even those from other brands. That means you can use the gear you already prefer without worrying about compatibility.
The module comes loaded with 2,203 voices and 252 digital effects, along with 512-note polyphony for rich, layered playing. It offers 251 scenes total, including 51 preset kits and 200 user kits you can customize. Built-in looper, sampler, and playback features open up new creative options for practice and performance.
Two free apps extend the module's capabilities. The Rec'n'Share app for iOS and Android lets you shoot, edit, and upload videos of your performances, making it easy to share your playing. The EAD Touch app simplifies editing settings and managing your data directly from a mobile device.
| Specification | Value |
|---|---|
| SKU | YAM-EAD20BP |
| Vendor | Yamaha |
| MPN | EAD20 |
| Number of Instrument Sounds | 2,203 Voices |
| Number of Drum Kits |
51 Preset Kits 200 User Kits |
| Trigger Inputs |
4 Splittable Trigger Inputs (expandable to 9 total triggers) Compatible with single-zone, dual-zone, three-zone & multi-piezo pads (including non-Yamaha) |
| Sequencer/Recording | Recorder, Looper, Sampler & Playback |
| Sampling | Yes |
| Audio Inputs |
Sensor Unit Input (Stereo Condenser Microphone + Kick Trigger) USB (8-in Audio Interface) |
| Audio Outputs |

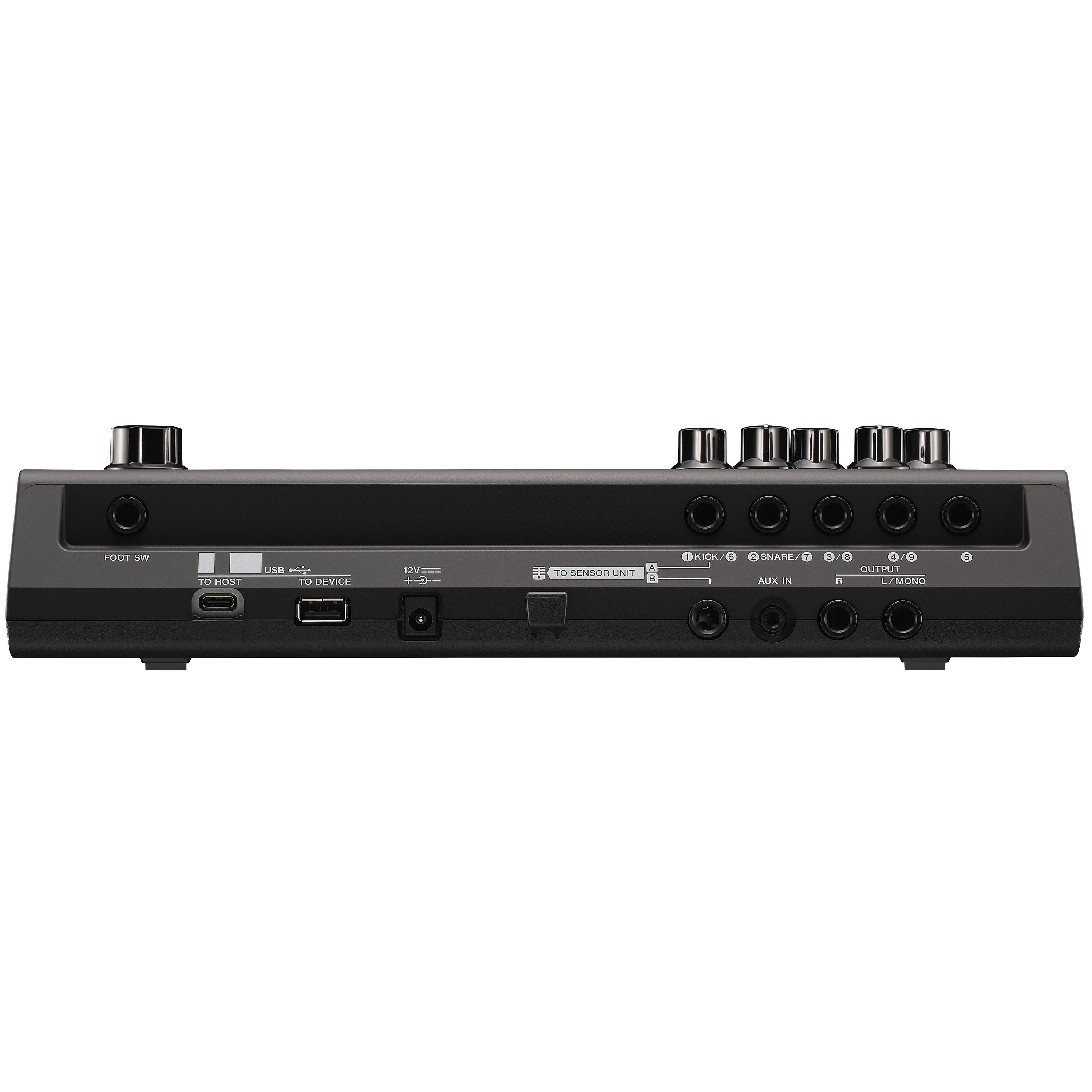

(2) 1/4" Outputs (Stereo L/R, or single Mono) MIDI Out USB (10-out Audio Interface) |
