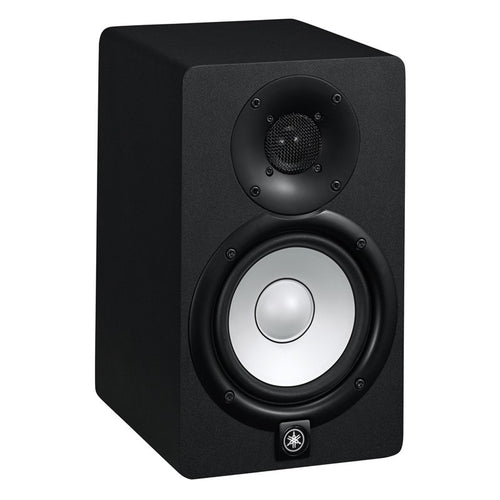

Yamaha HS5 5" Powered Studio Monitor Speaker

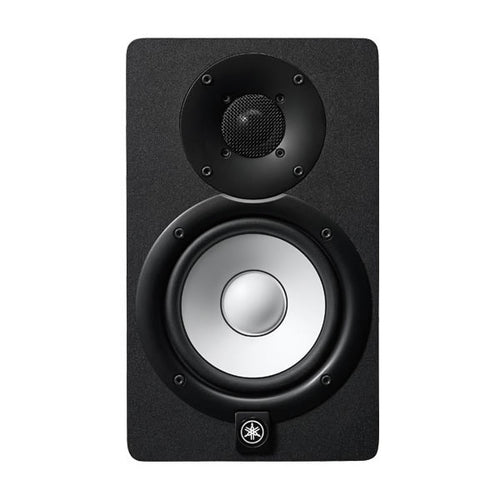

- 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
- 54Hz - 30kHz frequency response
- 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
- ROOM CONTROL and HIGH TRIM response controls

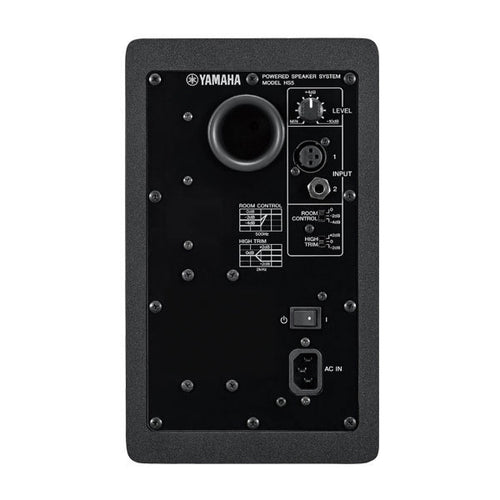

- XLR and TRS phone jack inputs accept balanced or unbalanced signals
Improving on the success of the original HS line launched in 2006, the completely redesigned HS series feature new transducers that achieve smooth response over a wide bandwidth and ensure the accuracy of signal reproduction throughout the audio spectrum. By upgrading to a 1" tweeter (from the previous 3/4" models) the new monitor series provides an extended frequency range and deliver superb high-resolution sound. Yamaha engineers have optimized the HS powered monitor and subwoofer monitor system for a variety of music production environments.
The HS5 (5" cone and 1" dome tweeter), HS7 (6.5" cone and 1" dome tweeter) and HS8 (8" cone and 1" dome tweeter) are housed in bass reflex-type cabinets and reproduce tight low-end and smooth, high frequency response. Two inputs, a balanced XLR and a 1/4" phone jack, can accommodate a wide range of balanced and unbalanced sources, including mixers, keyboards and audio interfaces.
Additionally, the new HS Series cabinets offer low resonance enclosure designs constructed from a dense, resilient MDF for a damped acoustic response that is perfectly suited for reference monitors. Each monitor and subwoofer is also equipped with a unique high performance amp unit, perfectly paired with each transducer. The coupled amp unit ensures that each HS Series speaker delivers high-resolution sound with exceptionally flat response across the spectrum.
Each monitor speaker employs leading edge noise reduction technology, controlling and reducing the vortex at either end of the speaker port that can generate air vibrations inside and cause unwanted noise in many studio monitors. To combat this, Yamaha adopted advanced noise reduction technology when designing the ports.
SKU | YAM-HS5 |
Vendor | Yamaha |
Active Passive | Active |
Included From Manufacturer | Power Cable |
MPN | HS5 |
Product Unique Features |
Bi-amplified Bass-Reflex Cabinet Upgraded 1" Tweeter |
Speaker Application | Full-Range |
Speaker Size Filterable | 5 |
Connectors | (1) XLR Balanced Input (1) 1/4" Balanced TRS Input |
Enclosure Material | MDF |
Equalization (EQ) | HIGH TRIM Switch ROOM CONTROL Switch |
Flyable | No |
Frequency Range | 54Hz - 30kHz |
Power | 70W (LF:45W, HF:25W) |
Product Weight | 11.7 lbs |
Protection Circuit | No |
Tweeter/Horn | 1" Dome Tweeter |
Width | 6.7" |
Depth | 8.7" |
Height | 11.2" |
Woofer/Low Frequency | 5" Cone Woofer |
Yamaha Music Production Limited Warranty
Thank you for selecting a Yamaha product. Yamaha products are designed and manufactured to provide a high level of defect-free performance. Yamaha Corporation of America ('Yamaha') is proud of the experience and craftsmanship that goes into each and every Yamaha product. Yamaha sells its products through a network of reputable, specially authorized dealers and is pleased to offer you, the Original Owner, the following Limited Warranty, which applies only to products that have been (1) directly purchased from Yamaha's authorized dealers in the fifty states of the USA and District of Columbia (the 'Warranted Area') and (2) used exclusively in the Warranted Area. Yamaha suggests that you read the Limited Warranty thoroughly, and invites you to contact your authorized Yamaha dealer or Yamaha Customer Service if you have any questions.
This warranty covers Yamaha synthesizers, mobile mini keyboards, monitor speakers, audio interfaces, MIDI controllers, wind MIDI controllers and music production accessories against defects in materials or workmanship for one (1) year. Yamaha Montage music synthesizers are covered by the same Limited Warranty for two (2) years.
Yamaha will, at its options, repair or replace the product covered by this warranty if it becomes defective, malfunctions or otherwise fails to conform with this warranty under normal use and service during the term of this warranty, without charge for labor or materials. Repairs may be performed using new or refurbished parts that meet or exceed Yamaha specifications for new parts. If Yamaha elects to replace the product, the replacement may be a reconditioned unit.
You will be responsible for any installation or removal charges and for any initial shipping charges if the product(s) must be shipped for warranty service. However, Yamaha will pay the return shipping charges to any destination within the USA if the repairs are covered by the warranty.
This warranty does not cover (a) damage, deterioration or malfunction resulting from accident, negligence, misuse, abuse, improper installation or operation or failure to follow instructions according to the Owner's Manual for this product; any shipment of the product (claims must be presented to the carrier); repair or attempted repair by anyone other than Yamaha or an authorized Yamaha Service Center; (b) any unit which has been altered or on which the serial number has been defaced, modified or removed; (c) normal wear, and any periodic maintenance; (d) deterioration due to perspiration, corrosive atmosphere or other external causes such as extremes in temperature or humidity; (e) damages attributable to power line surge or related electrical abnormalities, lightning damage or acts of God; or (f) RFI/EMI (Interference/noise) caused by improper grounding or the improper use of either certified or uncertified equipment, if applicable.
Any evidence of alteration, erasing or forgery of proof-of-purchase documents will cause this warranty to be void. This warranty covers only the Original Owner and is not transferable.
Warranty service will only be provided for defective products within the Warranted Area. Contact your local authorized Yamaha dealer who will advise you of the procedures to be followed. If this is not successful, contact Yamaha directly. Yamaha may request that you send the defective product to a local authorized Yamaha Servicer or authorize return of the defective product to Yamaha for repair. If you are uncertain as to whether a dealer has been authorized by Yamaha, please contact Yamaha's Service Department or check Yamaha's website.
Product(s) shipped for service should be packed securely and must be accompanied by a detailed explanation of the problem(s) requiring service, together with the original or a machine reproduction of the bill of sale or other dated, proof-of-purchase document describing the product, as evidence of warranty coverage. Should any product submitted for warranty service be found ineligible therefore, an estimate of repair cost will be furnished and the repair will be accomplished only if requested by you and upon receipt of payment or acceptable arrangement for payment.
Any implied warranties, including warranties of merchantability and fitness for a particular purpose shall be limited in duration to the applicable period of time set forth above. Yamaha shall not be responsible for incidental or consequential damages or for damages based upon inconvenience, loss of use, damage to any other equipment or other items at the site of use or interruption of performances or any consequences. Yamaha's liability for any defective product is limited to repair or replacement of the product, at Yamaha's option. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This is the only express warranty applicable to the product specified herein; Yamaha neither assumes nor authorizes anyone to assume for it any other express warranty.
