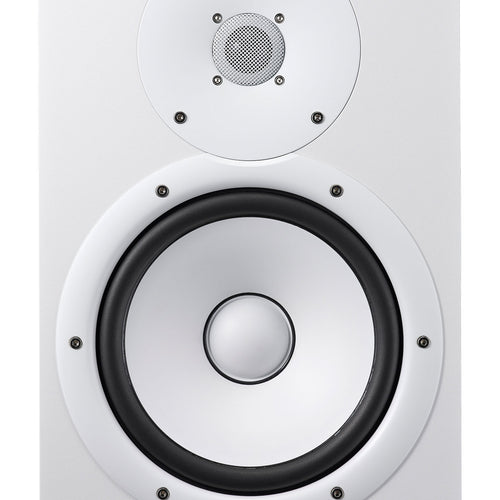

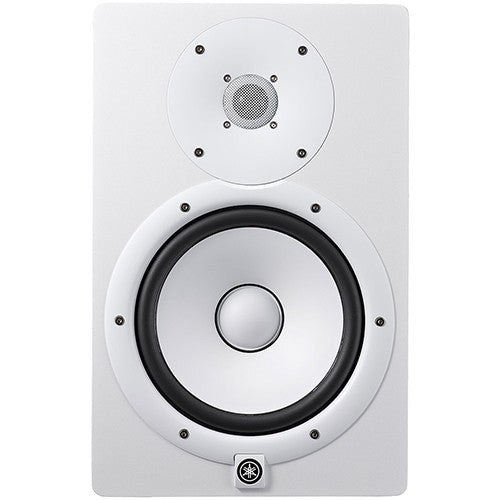

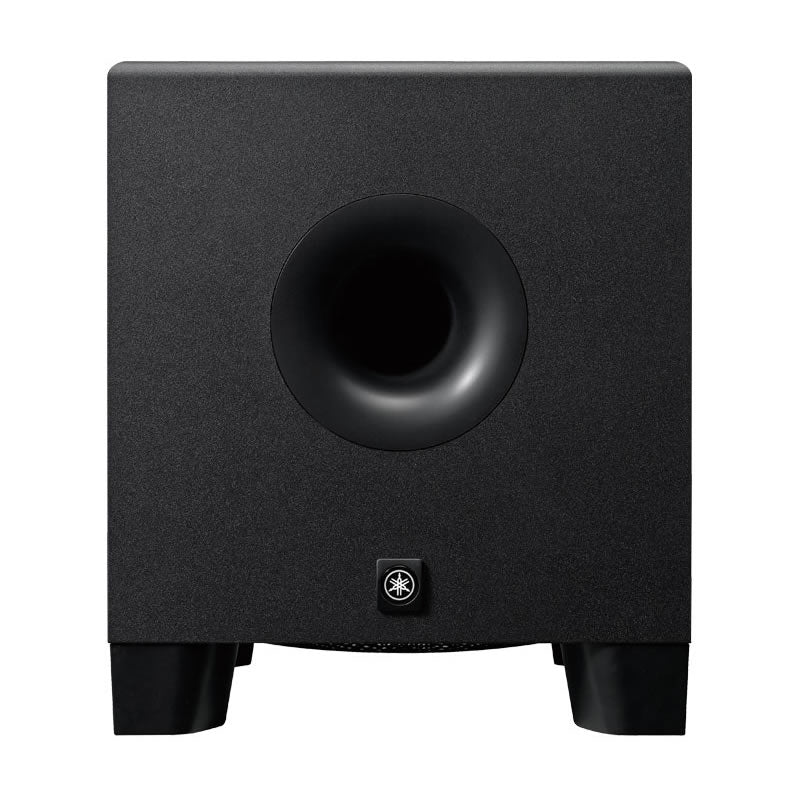

Improving on the success of the original HS line launched in 2006, the completely redesigned HS series feature new transducers that achieve smooth response over a wide bandwidth and ensure the accuracy of signal reproduction throughout the audio spectrum. By upgrading to a 1" tweeter (from the previous 3/4" models) the new monitor series provides an extended frequency range and deliver superb high-resolution sound. Yamaha engineers have optimized the HS powered monitor and subwoofer monitor system for a variety of music production environments.
The HS5 (5" cone and 1" dome tweeter), HS7 (6.5" cone and 1" dome tweeter) and HS8 (8" cone and 1" dome tweeter) are housed in bass reflex-type cabinets and reproduce tight low-end and smooth, high frequency response. Two inputs, a balanced XLR and a 1/4" phone jack, can accommodate a wide range of balanced and unbalanced sources, including mixers, keyboards and audio interfaces.
Additionally, the new HS Series cabinets offer low resonance enclosure designs constructed from a dense, resilient MDF for a damped acoustic response that is perfectly suited for reference monitors. Each monitor and subwoofer is also equipped with a unique high performance amp unit, perfectly paired with each transducer. The coupled amp unit ensures that each HS Series speaker delivers high-resolution sound with exceptionally flat response across the spectrum.
Each monitor speaker employs leading edge noise reduction technology, controlling and reducing the vortex at either end of the speaker port that can generate air vibrations inside and cause unwanted noise in many studio monitors. To combat this, Yamaha adopted advanced noise reduction technology when designing the ports.
| Specification | Value |
|---|---|
| SKU | YAM-HS8WHCA |
| Vendor | Yamaha |
| Active Passive | Active |
| Included From Manufacturer | (2) Power Cables |
| MPN | HS8WH |
| Product Unique Features |
Bi-amplified Bass-Reflex Cabinet Upgraded 1" Tweeter |
| Speaker Application | Full-Range |
| Speaker Size Filterable | 8 |

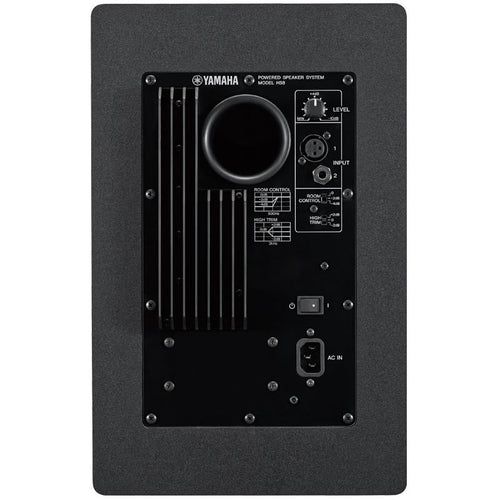

| Connectors |
(1) XLR Balanced Input (1) 1/4" Balanced TRS Input |
| Enclosure Material | MDF |
| Equalization (EQ) |
HIGH TRIM Switch ROOM CONTROL Switch |
| Flyable | No |
| Frequency Range | 38Hz - 30kHz |
| Power | 120W (LF:75W, HF:45W) |
| Product Weight | 22.5 lbs |
| Protection Circuit | No |
| Tweeter/Horn | 1" Dome Tweeter |
| Width | 9.8" |
| Depth | 13.1" |
| Height | 15.4" |
| Woofer/Low Frequency | 8" Cone Woofer |
This warranty covers Yamaha synthesizers, mobile mini keyboards, monitor speakers, audio interfaces, MIDI controllers, wind MIDI controllers and music production accessories against defects in materials or workmanship for one (1) year. Yamaha products are designed and manufactured to provide a high level of defect-free performance. Yamaha Corporation of America ('Yamaha') is proud of the experience and craftsmanship that goes into each and every Yamaha product. Yamaha sells its products through a network of reputable, specially authorized dealers and is pleased to offer you, the Original Owner, the following Limited Warranty, which applies only to products that have been (1) directly purchased from Yamaha's authorized dealers in the fifty states of the USA and District of Columbia (the 'Warranted Area') and (2) used exclusively in the Warranted Area. Yamaha suggests that you read the Limited Warranty thoroughly and invites you to contact your authorized Yamaha dealer or Yamaha Customer Service if you have any questions.
