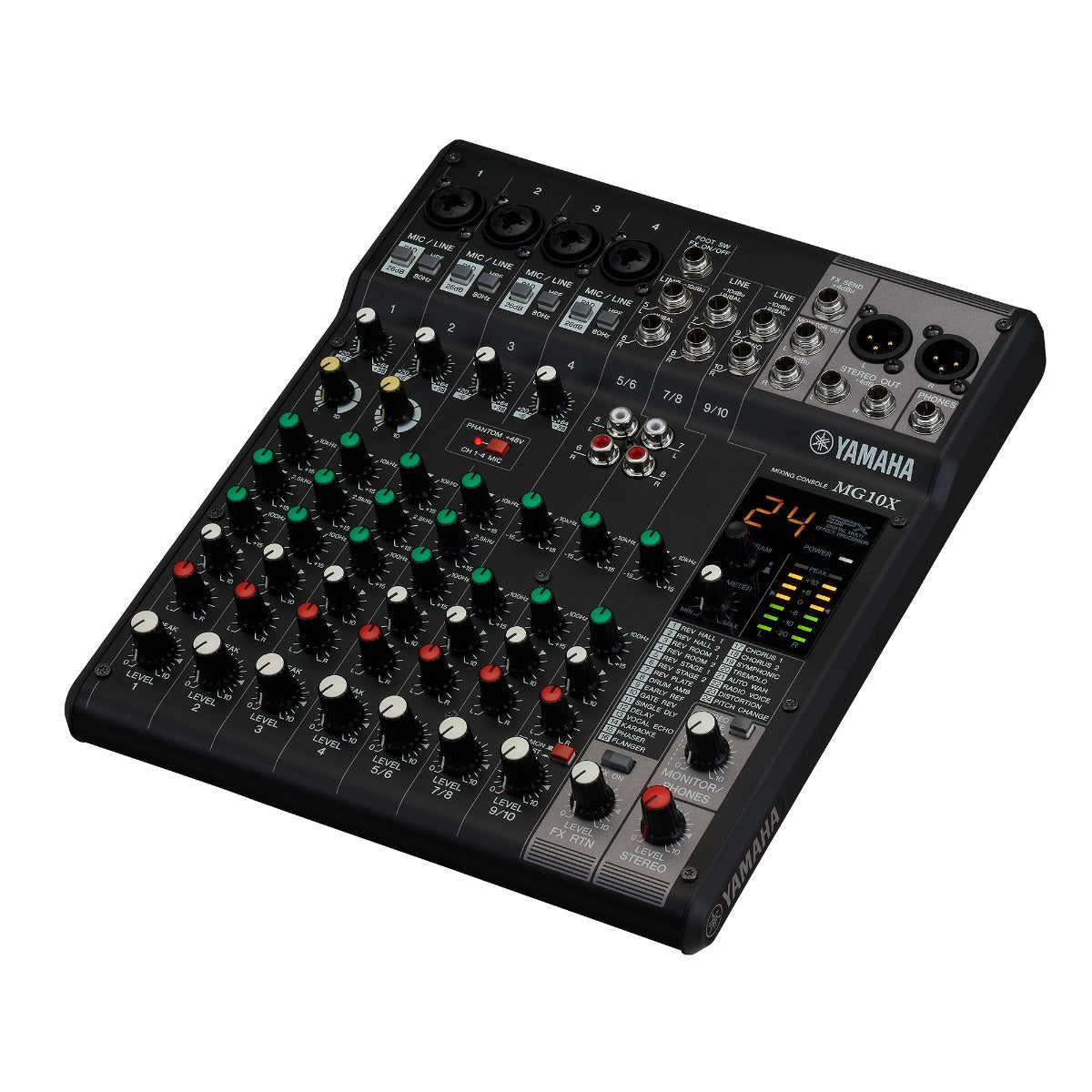

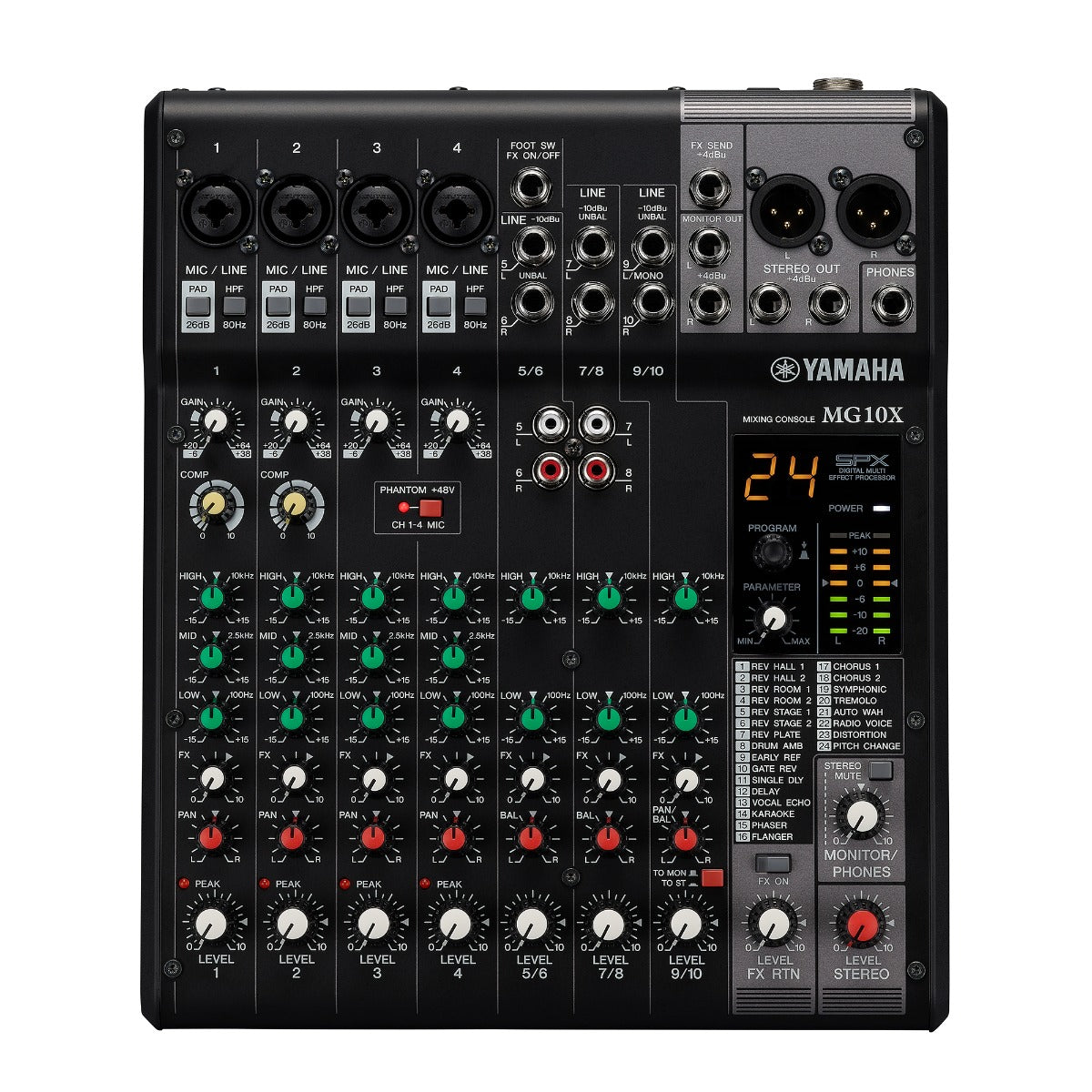

Housed in a rugged steel chassis, the MG10X can accommodate up to 10 inputs and offers a balanced stereo output. Featuring D-Pre discrete Class A microphone preamplifiers for pristine sound, it includes an Aux bus for the built-in SPX effect with 24 presets and 2 channels of single knob compression. The MG10X can accept XLR, ¼” Phone and RCA type pin jack inputs, and offers XLR and Phone outputs. The MG10X offers rotary controls instead of faders, reducing the footprint for discrete placement onstage or anywhere space is a premium. A footswitch input allows hands free effect muting.
| Specification | Value |
|---|---|
| SKU | YAM-MG10XCVPP |
| Vendor | Yamaha |
| Included From Manufacturer | PA-10 Power adapter |
| Mic Preamps | 4 |
| Mixer Channel Filterable | 10 |
| Mixer Type | Analog |
| MPN | MG10X CV |
| Simultaneous Inputs | 10 |
| Aux/Effect Sends | 1/4" FX Send |
| Channel EQ | High, Mid, Low |
| Effects | 24 effect programs |
| Number of Faders | 0 |
| Audio Inputs |
4 x 1/4" / XLR Combo 3 x Stereo 1/4" (L+R) |
| Audio Outputs |
Stereo Balanced XLR Stereo 1/4" 1/4" Headphones |
| Phantom Power | Switchable +48V (channel 1-4) |
| Product Weight | 4.63 lbs. |
| Rackmountable | No |
| Width | 9.6" |
| Depth | 11.6" |
| Height | 2.8" |
Yamaha products are designed and manufactured to provide a high level of defect-free performance. Yamaha Corporation of America ('Yamaha') is proud of the experience and craftsmanship that goes into each and every Yamaha product. Yamaha sells its products through a network of reputable, specially authorized dealers and is pleased to offer you, the Original Owner, the following Limited Warranty, which applies only to products that have been (1) directly purchased from Yamaha's authorized dealers in the fifty states of the USA and District of Columbia (the 'Warranted Area') and (2) used exclusively in the Warranted Area. Yamaha suggests that you read the Limited Warranty thoroughly, and invites you to contact your authorized Yamaha dealer or Yamaha Customer Service if you have any questions.
