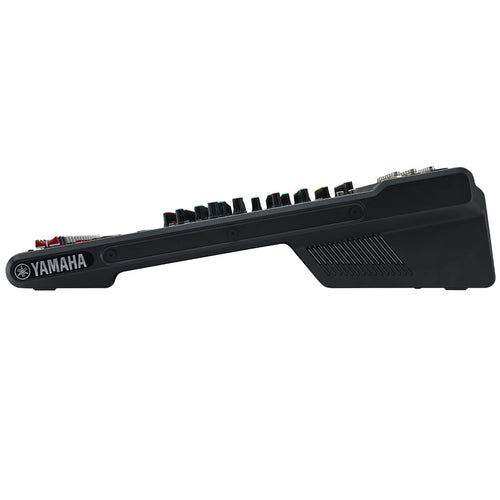

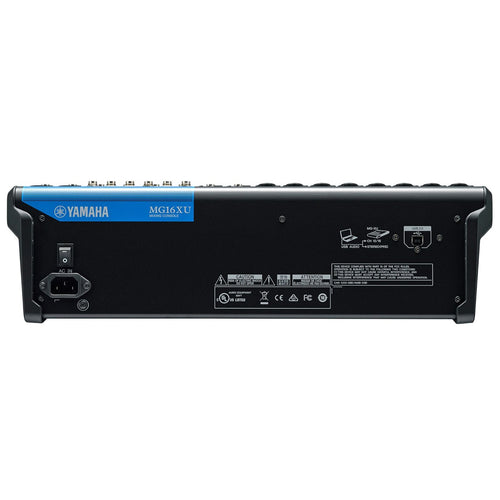

Yamaha MG16XU 16-Channel Stereo Mixer with USB Audio Interface
The MG16XU offers ten XLR channels, eight of which feature 3 band EQ, and 1-Knob Compression, as well as eight mono and four stereo line inputs. In addition to balanced main and headphone outputs, MG16XU also features one Monitor and four Aux(FX) Send outputs for added flexibility. Add to all of this a 24-bit USB Audio Interface and the powerful SPX Digital Multi Effect Processor, and the MG16XU packs a powerful punch for the price.
Optimized Steel Chassis
Starting with the chassis, you will see that quality is the heart of the matter. The steel powder-coated and impact resistant chassis offers a compact and contoured design, which optimizes the way heat is moved away from the components to lower operating temperatures. In this new layout the power supply is separated from analog circuit to reduce noise, which also extends the life of internal components. This all protects the upgraded glass-substrate circuit board, which increases flexibility, protecting circuit integrity under stress.
D-PRE Preamps
The preamp is where sound creation begins, and ultimately determines the character and quality of your overall mix. The importance of this critical first step inspired Yamaha to develop the most fat and warm sounding preamps possible—their newly refined D-PRE mic preamps. Initially intended for use with Yamaha's high-end recording gear, these studio-grade, discrete Class-A mic preamps employ an inverted Darlington circuit design that features multiple circuitry elements in a multi-layered configuration in order to deliver more power with lower impedance. This means all the character, depth and feel of your original signal will be delivered with fat, natural sounding bass and smooth, soaring highs. Rediscover a favorite mic or trusted instrument by capturing the full range of your musical expression with sound that you don't hear, so much as feel. With 48V phantom power for each channel and a sound that is incomparable in a compact mixer today, these studio-grade discrete Class-A mic preamps set the MGP apart, clearly defining a class all its own.
1-Knob Compressors
Originally a Yamaha innovation, 1-knob compression is now a popular feature on an increasing number of compact mixing consoles with good reason. These intelligent compressors add optimally set compression to a wide variety of input sources with the touch of a single control—minus the hassle of setting up and configuring complex outboard gear. The MG features Yamaha's newly upgraded 1-knob compressors that feature LED indicators allowing you to visually monitor when the compression "kicks in" on each channel.
| Specification | Value |
|---|---|
| SKU | YAM-MG16XU |
| Vendor | Yamaha |
| Audio Recording | Stereo over USB |
| Connectivity | USB |
| Included From Manufacturer | Power Cable |
| Mic Preamps | 10 |
| Mixer Channel Filterable | 16 |
| Mixer Type | Analog |
| MPN | MG16XU |
| Product Unique Features |
D-PRE Preamps 1-Knob Compression |
| Simultaneous Inputs | 12 |
| Aux/Effect Sends | Aux(FX) Send: (4) 1/4 |
| Channel EQ | 3-band (Ch. 1-6) |
| Effects | 16 SPX Presets |
| Number of Faders | (13) Channel Faders |
| Audio Inputs |
(10) XLR Microphone (8) Mono + (4) Stereo Line 1/4" |
| Audio Outputs |
Main: (2) 1/4", (2) XLR Bal Headphones: (1) 1/4" Monitor: (1) 1/4" |
| Phantom Power | 4 Channels, 48V |
| Product Weight | 14.99 lbs. |
| Rackmountable | Yes |
| Width | 17.48" |
| Depth | 19.68" |
| Height | 5.12" |
