Introducing the New Yamaha MODX M
The mobile, lightweight MODX M series of music synthesizers from Yamaha are built on the DNA o...

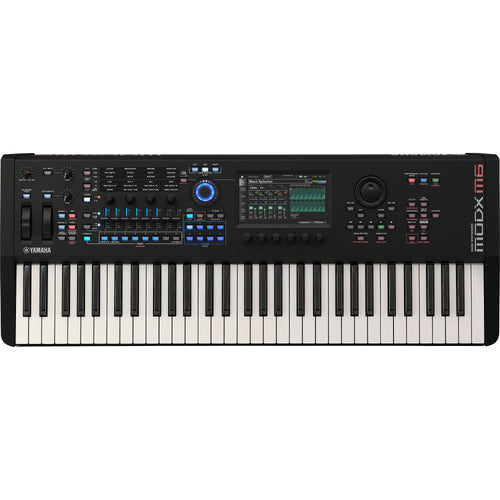

The Yamaha MODX M6 61-key synthesizer is perfect for synth enthusiasts who want a portable, powerful instrument. With semi-weighted FSB keys, three dynamic sound engines and intuitive performance controls, the M6 provides a full palette of modern synth sounds and layered textures for both creative studio work and live performance.
Key Features
- 61-Key Semi-Weighted FSB Keyboard: Responsive keyboard with a natural feel, balancing expressive playability and portability.
-
Three Sound Engines:
- AWM2: Ultra-realistic instrument voices, including piano, strings, and layered textures, with up to 128 elements per part.
- FM-X: Modern FM synth sounds with up to 128-note polyphony.
- AN-X: Vintage analog-style synths with oscillator and filter options, supporting up to 16-note polyphony.
- Multitimbral Capability: 16 internal parts plus audio input and USB parts for layered performances.
- Extensive Effects: 12 Reverb types, 88 Variation types, 88 Insertion types, 26 Master Effects, 83 A/D Part Insertions, plus 5-band master EQ and multi-band part EQs.
- Sequencer & Arpeggiator: 128 patterns, 16 tracks, Scene and Tempo tracks, plus 8-part arpeggiator with over 10,900 presets.

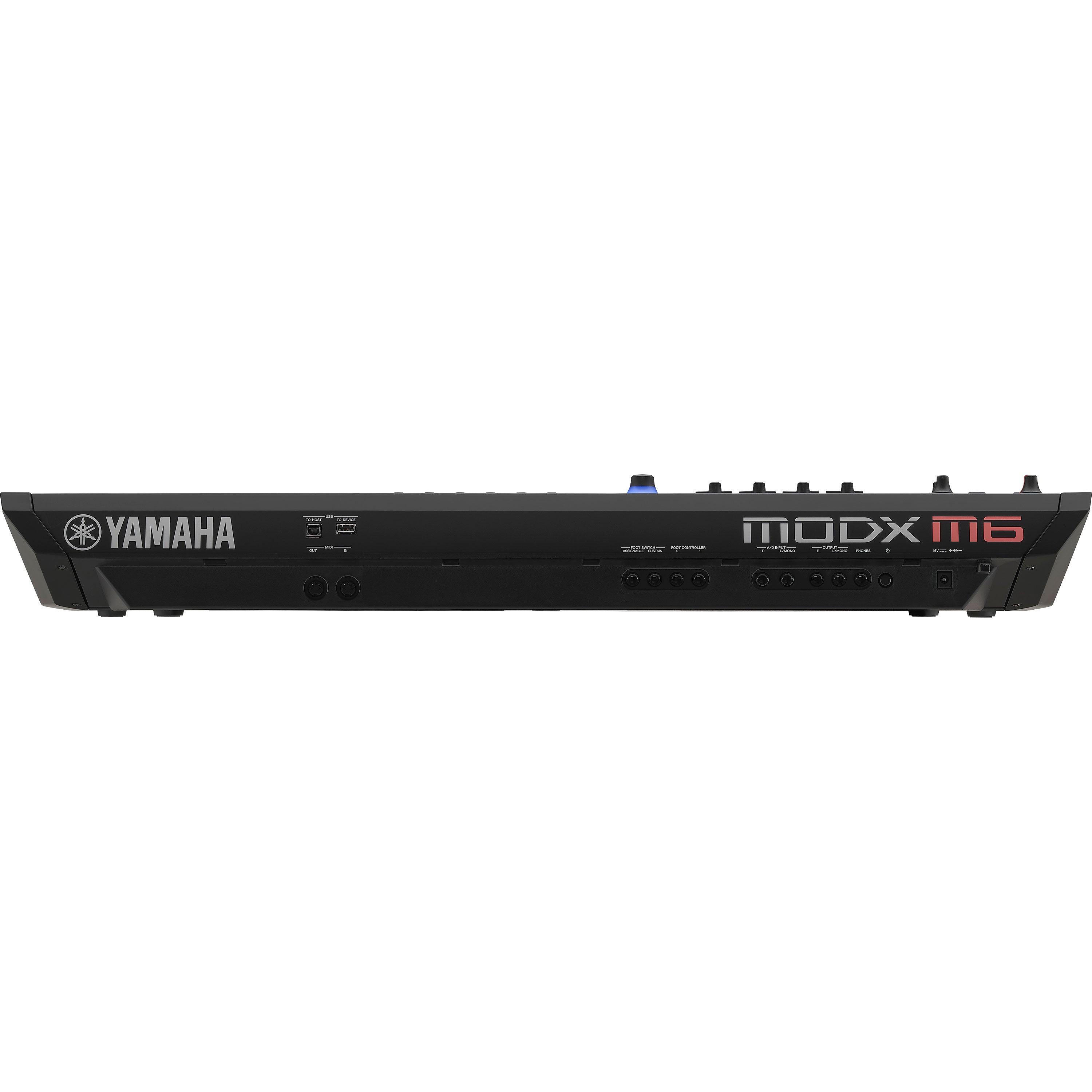

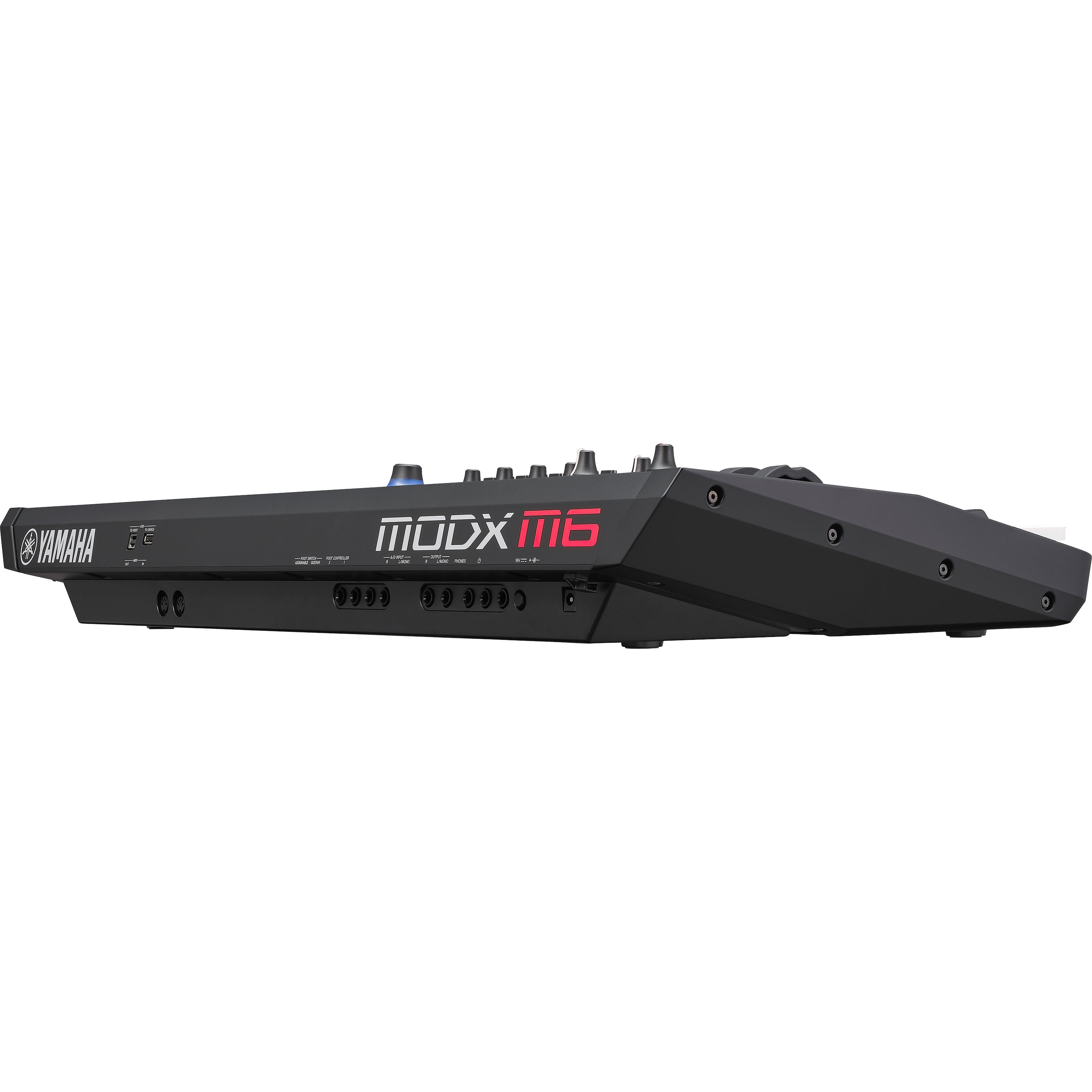

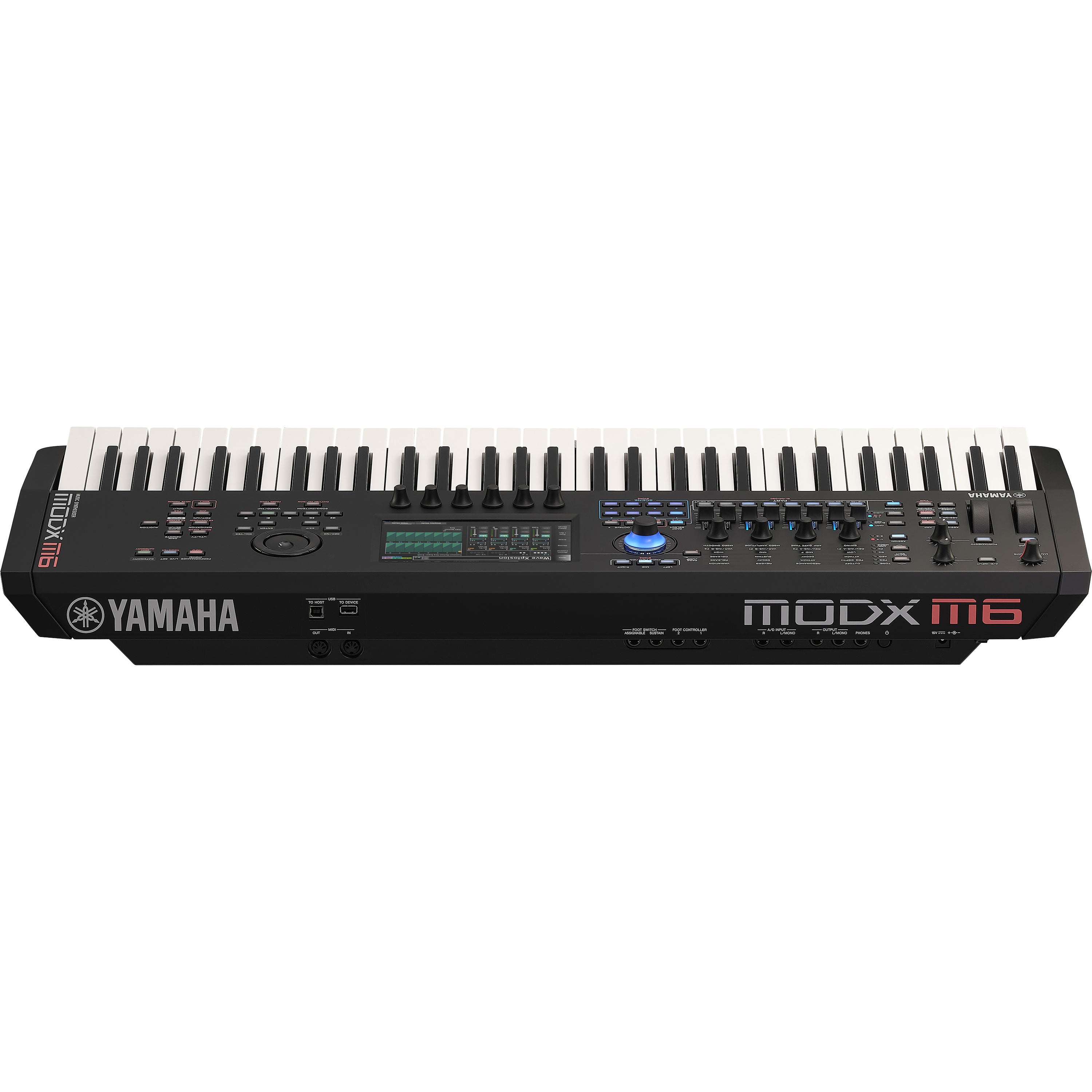

- Flexible Connectivity: Dual 1/4" stereo audio inputs/outputs, 1/4" stereo headphone output, USB MIDI/audio, sustain and assignable footswitch, and two expression pedal inputs.
- Onboard Controllers: Pitch bend wheel, modulation wheel, high-resolution Super Knob, 8 faders, and 4 multi-function knobs for performance, mixing, and editing.
- Compact & Portable: 34.75" W × 13.69" D × 4.63" H, weighing 14 lb 9 oz, easy to carry for stage or studio use.
- DAW Integration & Recording: Built-in 10-in/4-out USB audio interface allows direct multitrack recording and virtual instrument monitoring, while the Expanded Softsynth Plugin (ESP, available early 2026) replicates the MODX M in your DAW for full editing, mixing, and sound creation.
Compact Semi-Weighted Keyboard
The MODX M6 features a 61-note semi-weighted FSB keyboard, offering fast, responsive action for synth and lead players. Its lightweight design makes it ideal for tight studio spaces or gigging musicians on the move.
Blend Realistic & Synthetic Sounds
AWM2, FM-X, and AN-X engines give the MODX M6 the versatility to combine realistic instrument tones with modern FM and vintage-style analog synthesis, providing a wide palette of expressive sounds in a compact form.
Faster, More Intuitive Navigation

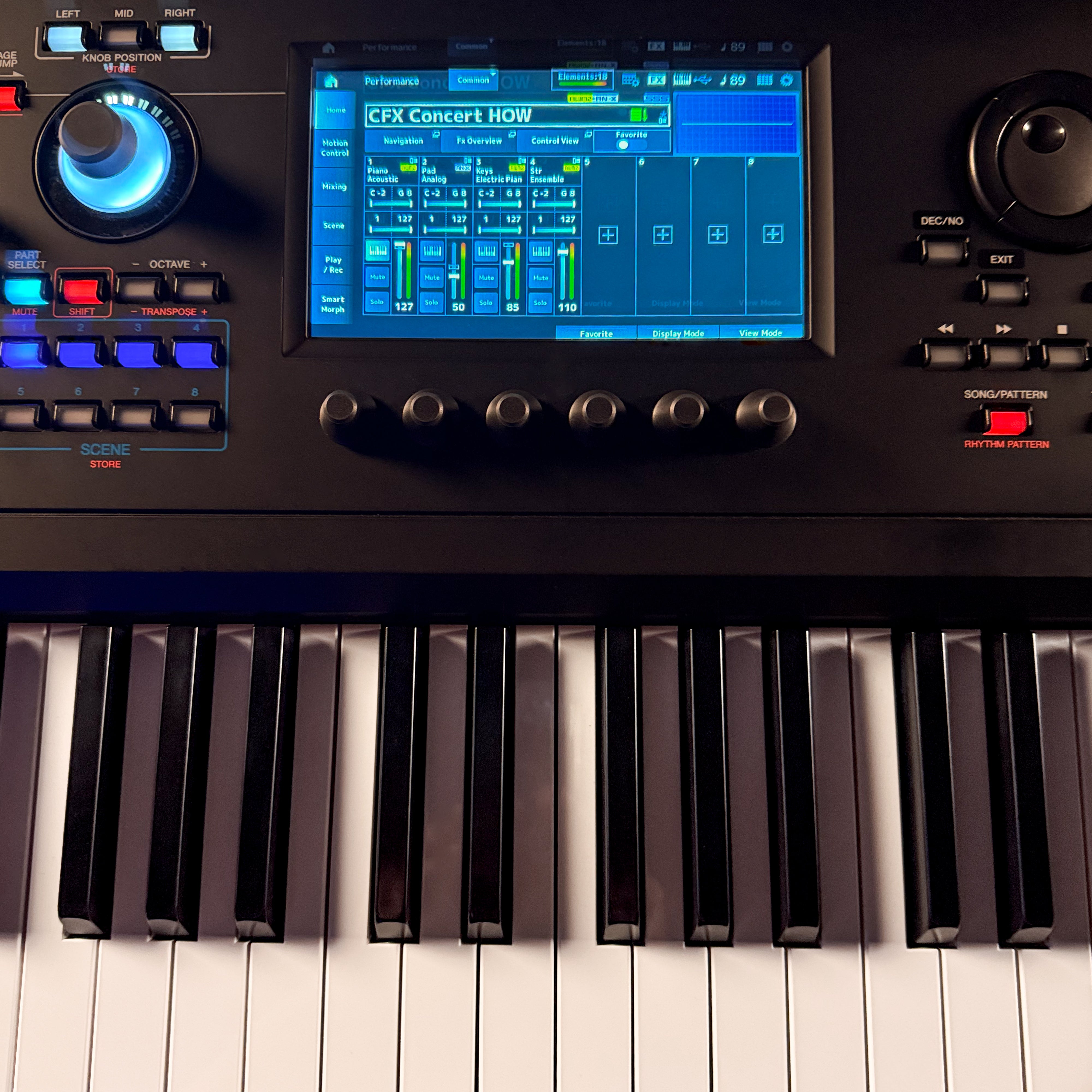

Access Performances, Parts, and engine parameters instantly with the improved touchscreen and interface. The MODX M6 allows quick sound editing and performance prep without slowing your creative process.
Record & Produce Efficiently
Record multitrack audio over USB with the 10-in/4-out interface and USB MIDI 2.0 support. Each part can be routed independently for fast and organized workflow in both studio and live environments.

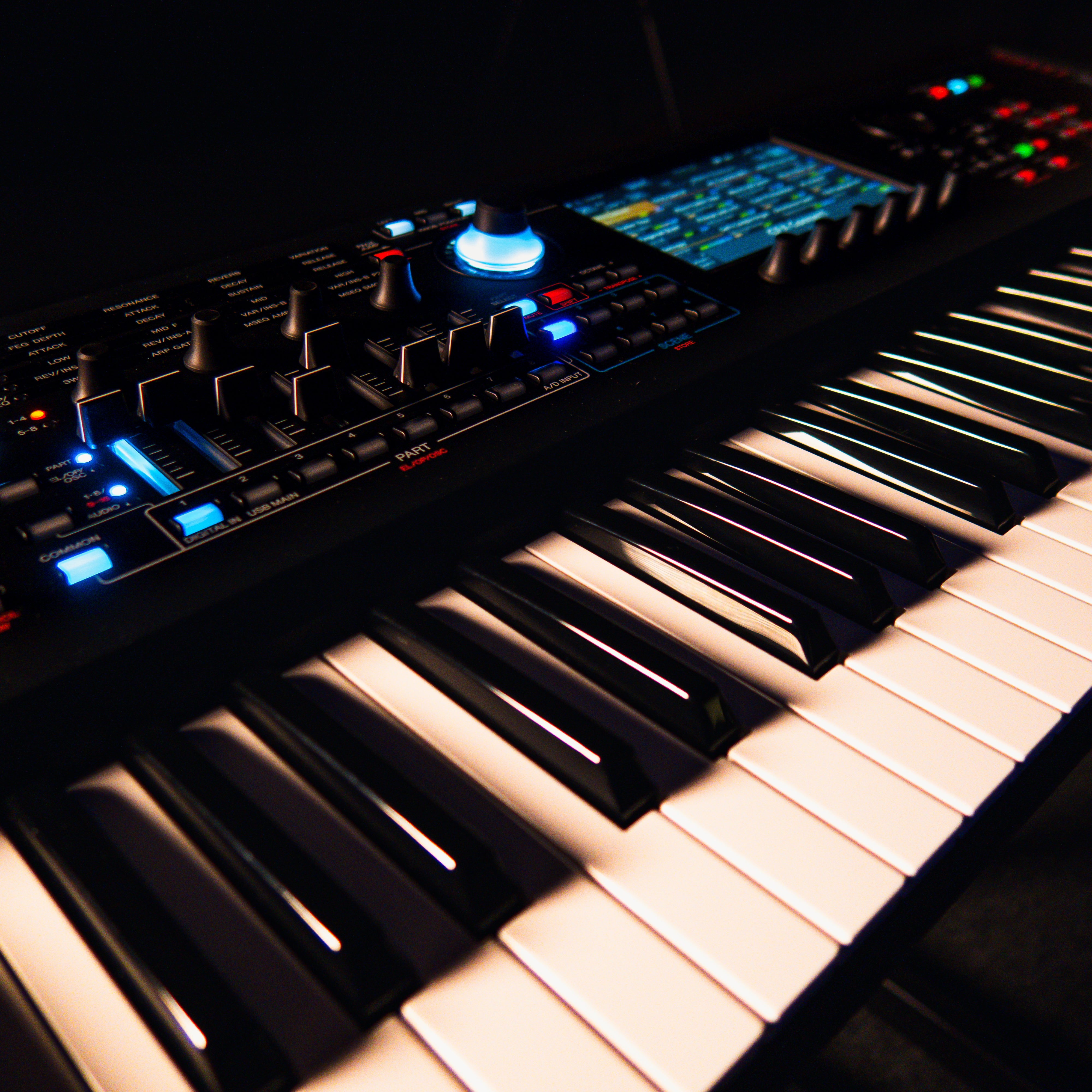

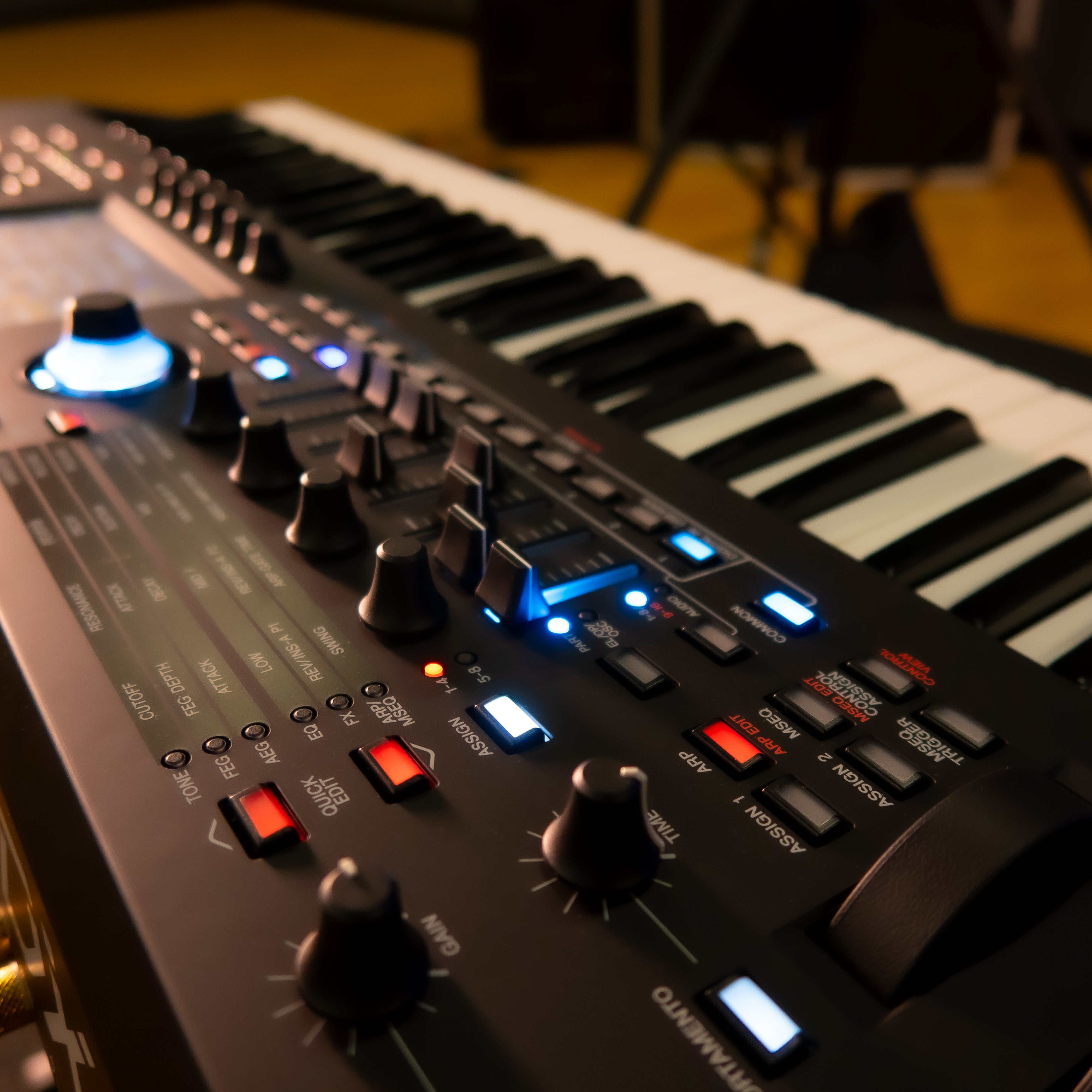

Hands-On Sound Control

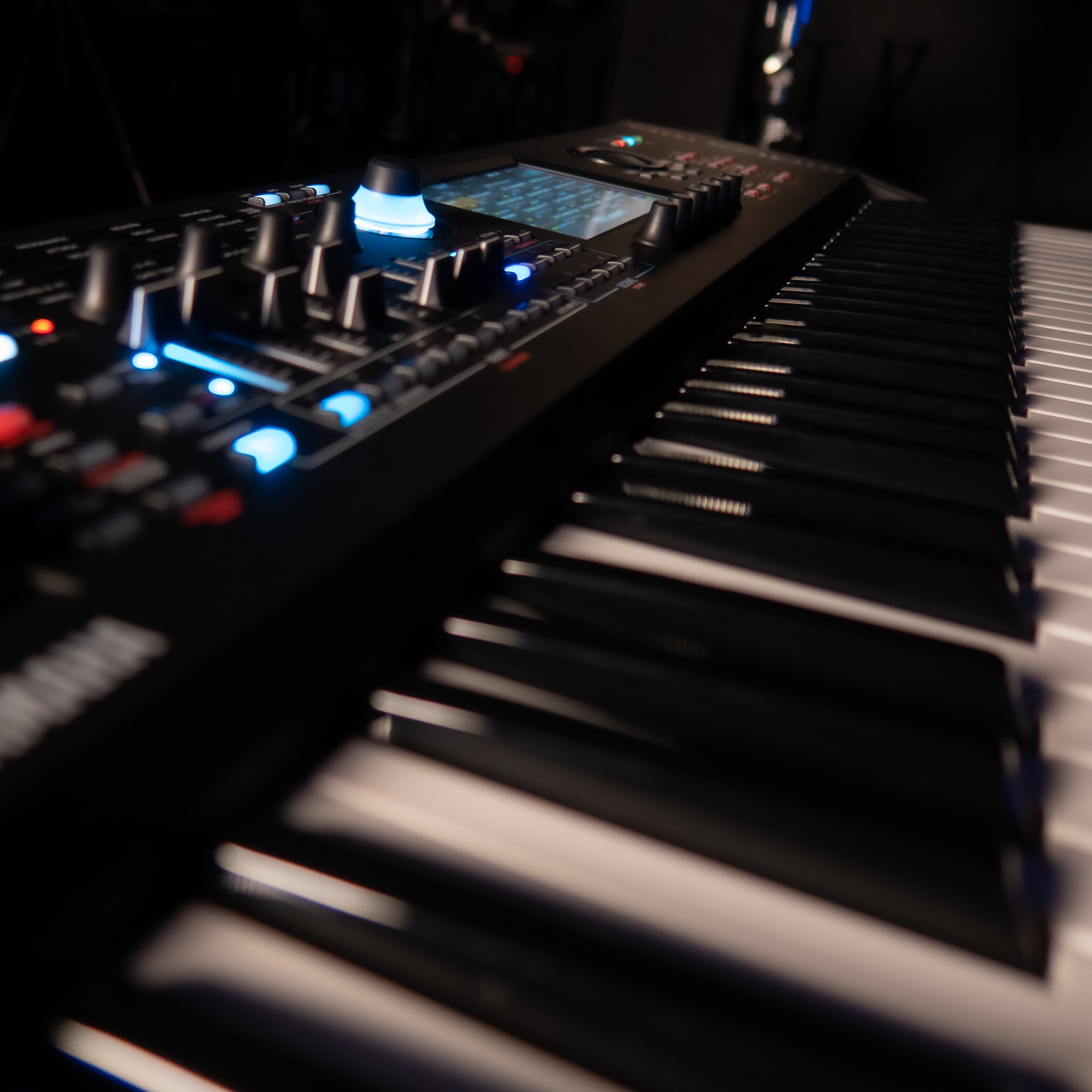

Eight faders, six assignable knobs, and the Super Knob provide intuitive, real-time sound shaping. Combined with the touchscreen, you get effortless control over layering, effects, and performance tweaks.
Frequently Asked Questions: Yamaha MODX M6
How many sounds does the MODX M6 include?
The Yamaha MODX M6 offers over 3,400 preset Performances, 128 preset Live Sets, and 2,048 user Live Sets, giving you a massive range of voices and layered sounds for complex performances, sound design, and music production.
What’s new in the Yamaha MODX M6 compared to the previous MODX 6?
The MODX M6 introduces the AN-X analog modeling engine, doubles AWM2 memory, and adds smoother, high-resolution controls along with upgraded navigation and a refined user interface for faster sound editing.
Can I record directly from the MODX M6 into my computer?
Yes. The MODX M6 features a built-in 10-in/4-out USB audio interface and USB MIDI 2.0 support, allowing direct multitrack recording and virtual instrument monitoring through a single cable.
Is the MODX M6 suitable for live performance?
Yes. Its semi-weighted FSB keyboard, real-time control faders, and intuitive Scene and Part selection buttons make it ideal for live players. Lightweight design and Kraft Music’s stage-ready bundles help streamline gigging setups.
Is the MODX M6 suitable for composing and arranging music?
Absolutely. With its 16-part multitimbral capability, advanced sequencer, arpeggiators, and Expanded Softsynth Plugin (ESP) integration, the MODX M6 provides all the tools needed for composing, arranging, and producing complex pieces directly from the keyboard.
| Specification | Value |
|---|---|
| SKU | YAM-MODXM6 |
| Vendor | Yamaha |
| Aftertouch | No |
| Analog Digital | Digital |
| Built In Speakers | No |
| Included From Manufacturer | Power supply |
| Weighted Keys | Semi-Weighted |
| Number of Keys | 61 |
| Key Size | Full Size Keys |
| MIDI | In, Out, and USB |
| Monophonic/Polyphonic | Polyphonic |
| MPN | MODX M7 |
| Product Unique Features |
|
| Key Action | 61-note semi-weighted FSB keyboard |
| Number of Patches/Programs |
|
| Voices of Polyphony |
|
| Oscillators per Voice | Varies by Sound Engine |
| Multitimbral Capability |
|
| Effects |
|
| Sequencer |
|
| Internal Storage Capacity |
|
| Arpeggiator |
|

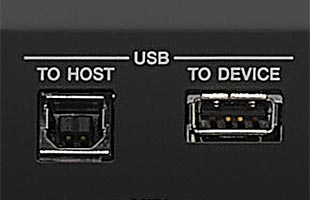

| USB Port (to Host) |
|
| USB Port (to Device) |
|
| Audio Inputs | Dual 1/4" stereo external audio input |
| Audio Outputs |
|
| Control Connections |
|
| Onboard Controllers |
|
| Width | 34.75" |
| Depth | 13.6875" |
| Height | 4.625" |
| Product Weight | 14 lb 9 oz. |
