October 14, 2025
Introducing the New Yamaha MODX M
The mobile, lightweight MODX M series of music synthesizers from Yamaha are built on the DNA o...

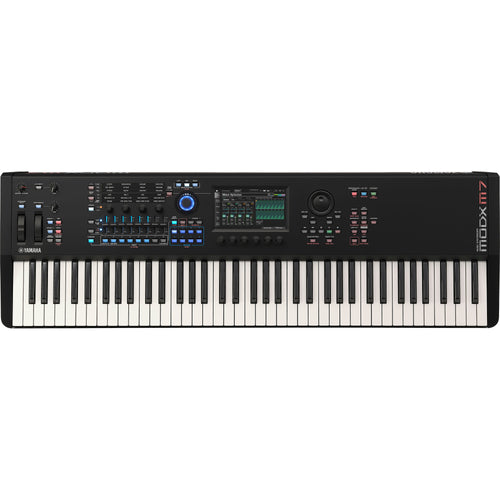

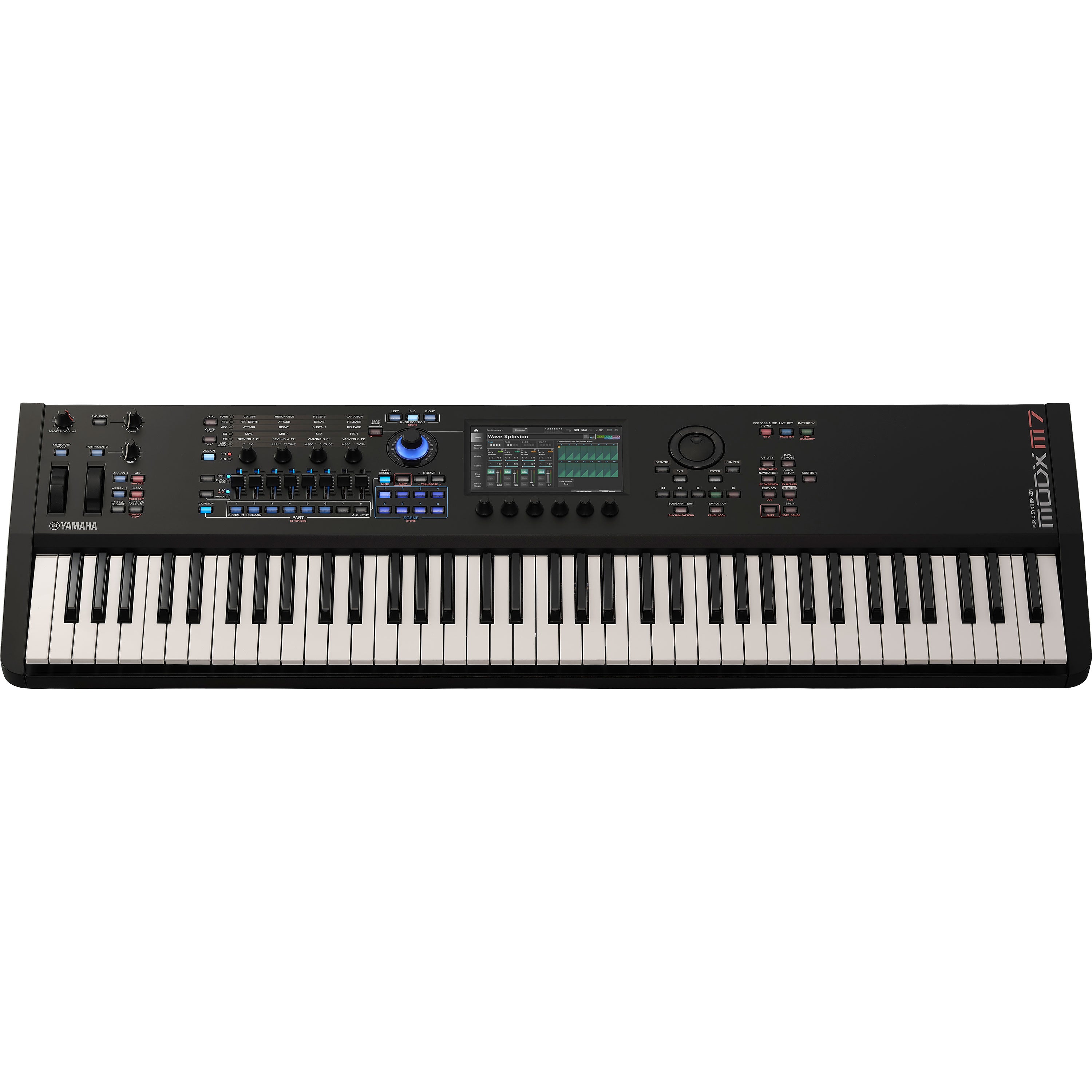

The Yamaha MODX M7 76-key synthesizer is designed for synth-focused players seeking a compact, versatile keyboard. Featuring semi-weighted FSB keys, three sound engines and flexible onboard controls, the M7 delivers modern synth tones, layered textures, and performance-ready features in a portable package for stage or studio use.
Key Features
- 76-Key Semi-Weighted FSB Keyboard: Responsive keys with a natural feel for expressive playability, balancing portability and performance.
-
Three Sound Engines:
- AWM2: Ultra-realistic instrument voices, including piano, strings, and layered textures, with up to 128 elements per part.
- FM-X: Modern FM synth sounds with up to 128-note polyphony.
- AN-X: Vintage analog-style synths with oscillator and filter options, supporting up to 16-note polyphony.
- Multitimbral Capability: 16 internal parts plus audio input and USB parts for layered performances.
- Extensive Effects: 12 Reverb types, 88 Variation types, 88 Insertion types, 26 Master Effects, 83 A/D Part Insertions, plus 5-band master EQ and multi-band part EQs.
- Sequencer & Arpeggiator: 128 patterns, 16 tracks, Scene and Tempo tracks, plus 8-part arpeggiator with over 10,900 presets.
- Flexible Connectivity: Dual 1/4" stereo audio inputs/outputs, 1/4" stereo headphone output, USB MIDI/audio, sustain and assignable footswitch, and two expression pedal inputs.
- Onboard Controllers: Pitch bend wheel, modulation wheel, high-resolution Super Knob, 8 faders, and 4 multi-function knobs for performance, mixing, and editing.
- Compact & Portable: 42.88" W × 13.69" D × 4.63" H, weighing 16 lb 12 oz, ideal for stage or studio setups where portability matters.
- DAW Integration & Recording: Built-in 10-in/4-out USB audio interface allows direct multitrack recording and virtual instrument monitoring, while the Expanded Softsynth Plugin (ESP, available early 2026) replicates the MODX M in your DAW for full editing, mixing, and sound creation.
Expressive Semi-Weighted Keyboard
The MODX M7 features a 76-note semi-weighted FSB keyboard, providing a responsive touch that balances speed and dynamic control. Perfect for synth-focused players who need expressive performance without the heavier graded hammer action of the 88-key model.
Layer & Morph Across Engines
Combine AWM2, FM-X, and AN-X engines to create rich, evolving sounds. The MODX M7 allows you to blend realistic instruments with cutting-edge FM and analog-style synths, offering flexible sound design for studio or stage performances.
Faster, More Intuitive Navigation
The MODX M7’s upgraded touchscreen and control layout provide immediate access to Performances, Parts, and engine parameters. Navigation is quicker and more intuitive, keeping your workflow smooth whether composing, recording, or performing live.
Record & Streamline Your Setup
Capture multitrack audio directly via the 10-in/4-out USB interface and USB MIDI 2.0. Send each part to its own track for efficient recording and mixing, perfect for both live setups and home studios.
Real-Time Performance Control
Use eight faders, six assignable knobs, and the Super Knob to manipulate sounds instantly. Combined with the color touchscreen, you get precise, hands-on control over every part of your performance.
Frequently Asked Questions: Yamaha MODX M7
How many sounds does the MODX M7 include?
The Yamaha MODX M7 offers over 3,400 preset Performances, 128 preset Live Sets, and 2,048 user Live Sets, giving you a massive range of voices and layered sounds for complex performances, sound design, and music production.
What’s new in the Yamaha MODX M7 compared to the previous MODX 7?
The MODX M7 introduces the AN-X analog modeling engine, doubles AWM2 memory, and adds smoother, high-resolution controls along with upgraded navigation and a refined user interface for faster sound editing.
Can I record directly from the MODX M7 into my computer?
Yes. The MODX M7 features a built-in 10-in/4-out USB audio interface and USB MIDI 2.0 support, allowing direct multitrack recording and virtual instrument monitoring through a single cable.
Is the MODX M7 suitable for live performance?
Yes. Its semi-weighted FSB keyboard, real-time control faders, and intuitive Scene and Part selection buttons make it ideal for live players. Lightweight design and Kraft Music’s stage-ready bundles help streamline gigging setups.
Is the MODX M7 suitable for composing and arranging music?
Absolutely. With its 16-part multitimbral capability, advanced sequencer, arpeggiators, and Expanded Softsynth Plugin (ESP) integration, the MODX M7 provides all the tools needed for composing, arranging, and producing complex pieces directly from the keyboard.
| Specification | Value |
|---|---|
| SKU | YAM-MODXM7 |
| Model Name | MODX M7 |
| Vendor | Yamaha |
| Analog Digital | Digital |
| Included From Manufacturer | Power supply |
| Keys Weighted | Semi-Weighted |
| Number of Keys | 76 |
| Key Size | Full Size Keys |
| Midi | In, Out, and USB |
| Mono Poly | Polyphonic |
| MPN | MODX M7 |
| Product Unique Features |
|
| Key Action | 76-note semi-weighted FSB keyboard |
| Number of Patches/Programs |
3,427 preset Performances 128 preset Live Sets 2,048 user Live Sets |
| Voices of Polyphony |
AWM2: 256 (maximum; stereo/mono waveforms) FM-X: 128 (maximum) AN-X: 16 (maximum) |
| Oscillators per Voice | Varies by Sound Engine |
| Multitimbral Capability |
16 internal parts Audio input parts: A/D, USB |
| Effects |
12 Reverb types 88 Variation types 88 Insertion types 26 Master Effect types 83 A/D Part Insertion types Preset settings for parameters of each effect type are provided as templates 5-band master EQ 3-band 1st part EQ 2-band 2nd part EQ |
| Sequencer |
Sequencer: 128 patterns 16 sequence tracks Tempo track Scene track Realtime replace, realtime overdub, realtime punch in/out |
| Internal Storage Capacity |
10.7GB preset (when converted to 16-bit linear format) 1.9GB user |
| Arpeggiator |
8 Parts simultaneous (maximum) 10,922 Preset types 256 User types |
| USB Port (to Host) |
MIDI Audio Editor/Librarian/Patch Manager |
| USB Port (to Device) |
Audio Recording Song File Playback Program/Preset Storage Sample Import System Updates |
| Audio Inputs | Dual 1/4" stereo external audio input |
| Audio Outputs |
Dual 1/4" stereo output 1/4" stereo headphone output |
| Control Connections |
1/4" sustain footswitch input 1/4" assignable footswitch input 2 × 1/4" expression pedal inputs |
| Onboard Controllers |
Pitch bend wheel Modulation wheel Assignable, multi-parameter Super Knob with visual feedback 8 physical faders for performance, mixing and editing 4 multi-function control knobs |
| Width | 42.876" |
| Depth | 13.6875" |
| Height | 4.625" |
| Product Weight | 16 lb 12 oz. |
Yamaha Synthesizer, Stage Keyboard & Stage Piano Products Limited Warranty
Yamaha products are designed and manufactured to provide a high level of defect-free performance. Yamaha Corporation of America ('Yamaha') is proud of the experience and craftsmanship that goes into each and every Yamaha product. Yamaha sells its products through a network of reputable, specially authorized dealers and is pleased to offer you, the Original Owner, the following Limited Warranty, which applies only to products that have been (1) directly purchased from Yamaha's authorized dealers in the fifty states of the USA and District of Columbia (the 'Warranted Area') and (2) used exclusively in the Warranted Area. Yamaha suggests that you read the Limited Warranty thoroughly, and invites you to contact your authorized Yamaha dealer or Yamaha Customer Service if you have any questions.
- CK Series Stage Keyboards: 1 Year
- CP Series Stage Pianos: 3 Years
- MODX+ / MODX Music Synthesizers: 1 Year
- Montage / Montage M Music Synthesizers: 2 Years
- MX Music Synthesizers: 1 Year
- Reface Mobile Mini Keyboards: 1 Year
- Synthesizer Accessories: 1 Year
- YC Series Stage Keyboards: 3 Years
