Audient ASP880 is an audio powerhouse designed with expandability in mind, making it the perfect addition to your audio interface. Upgrade your current setup with 8 channels of Audient Console mic preamps, 8 line inputs/outputs, 8 insert points, class leading converters and two JFET DIs – all in a compact 1RU package.
- 8 × Audient microphone preamps
- 8 × ADC line inputs / insert points
- 2 × JFET instrument inputs
- ADAT and AES + S/PDIF digital outputs
- 60dB gain range: clean, quiet and punchy
- Phantom power: give your mics the power they need
- -10dB pad: maintain headroom on loud sources
- Polarity reverse: make sure everything is in phase
Expand via ADAT: more channels, more possibilities
ASP880 is the perfect tool for expanding your existing interface. Add 8 channels of Audient mic pre via ADAT and transform your current setup into a complete recording rig.
Audient Console mic pres: the professional sound you deserve
Tackle any project with the renowned Audient Console mic preamp, the same all-discrete high grade op amp circuit design found in the renowned ASP8024-HE recording console. Designed to deliver ultra-low noise and low distortion with a touch of classic analog warmth, ASP880's eight Audient Console mic pres will give you the professional sound you deserve.
ADC insert points: integrate your outboard
Easily integrate outboard effects such as EQ and compression before the analog-to-digital converter. ASP880 makes it easy to record using your favorite outboard gear.
Class-leading converters: clarity where you need it
Confidently capture your microphones and line level instruments with ASP880's class-leading converter technology. By providing the cleanest signal path possible, ASP880 makes sure you capture every nuance, every detail of your audio, letting you focus on getting the most from your session.
Use as a standalone converter: more than meets the eye
ASP880 lets you bypass the mic pres and converters in your current interface and achieve the same audio excellence as the top studios. Using the ADC inputs, ASP880 can also operate as a standalone A-D converter, allowing you to feed the ADC from other sources such as alternative mic pres.
JFET instrument input: plug and play
As well as offering you 8 channels of Audient mic pres, ASP880 has two harmonically rich JFET DI inputs. Designed to replicate the input stage of a classic valve amplifier, you can plug your guitar, bass, keyboard or drum machine straight in and start recording instantly.
Variable impedance and HPF: versatile simplicity
Variable impedance enables you to match the impedance of the mic pre to your favorite ribbon mic, letting you retain the punch and frequency response the mic was born with. It also works on your other mics, just more subtly. Take control of your signal with the variable high pass filter: remove unwanted low frequencies, prevent proximity effect and tighten up your low end with a range of 25Hz to 250Hz. The result is a clean, ready-to-record signal.

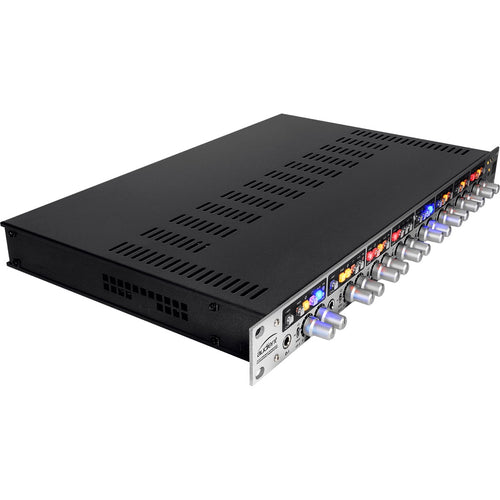

All-metal construction: built to last
ASP880 has been designed to last. Its all-metal construction and hand-milled aluminum knobs will stand up to countless late nights in the studio and days on the road. All this in 1RU!
| Specification | Value |
|---|---|
| SKU | ADN-ASP880 |
| Vendor | Audient |
| Bus Power | No |
| Included From Manufacturer | Power cord |
| Max Sample Bit | 96 kHz / 24-bit |
| Mic Preamps | 8 |
| MPN | ASP880 |
| Product Unique Features |
Audient Console microphone preamps from ASP8024-HE recording console 60dB gain range -10dB pad Polarity reverse All-metal design |
| Simultaneous Inputs | 10 |
| Digital Conversion | 96 kHz / 24-bit |

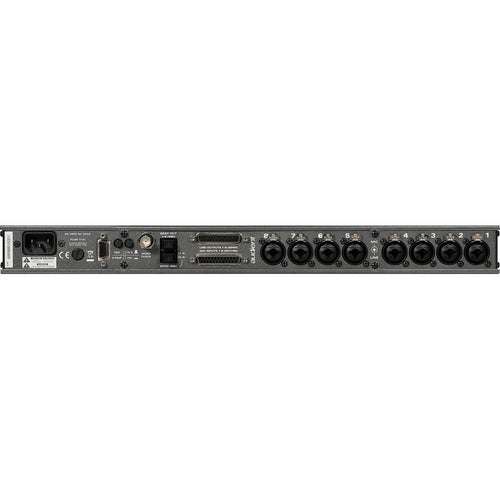

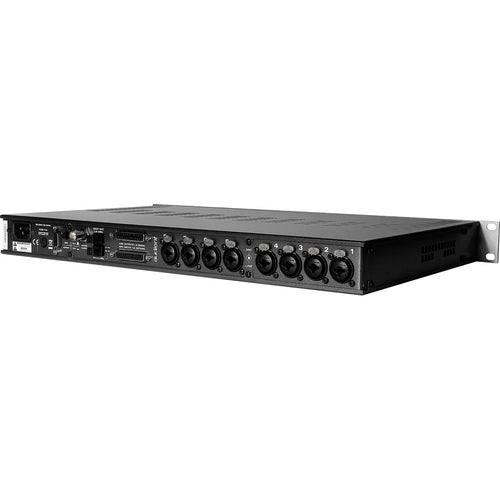

| Audio Inputs |
8 × XLR / 1/4" combo mic/line inputs 2 × 1/4" JFET instrument inputs 8 × ADC line / insert return inputs on DB25 connector |
| Audio Outputs |
ADAT output AES + S/PDIF output 8 × insert send outputs on DB25 connector |
| Phantom Power | Switchable 48V (±4V) phantom power rated at 10mA/channel |
| Product Weight | 8.82 lb |
| Rackmountable | Yes |
| Width | 18.97" |
| Depth | 11.02" |
| Height | 1.75" |
Audient products are covered by Audient Ltd's limited 3-year warranty. Audient products are designed and built to the highest standards, using premium components designed to deliver years of reliable performance. In the event of a manufacturing defect becoming apparent during the 3-year limited warranty period, Audient will ensure the product is repaired free of charge. Audient Ltd's liability is limited to the repair or replacement, at our option, of any defective product and shall not include incidental or consequential damages. Audient Ltd reserves the right to replace a discontinued model with a comparable model. For more information please visit www.audient.com.
