The HAMMOND B-3 organ and its siblings such as the C-3 and A-100 have been the single most influential keyboard instruments in musical history, perhaps apart from the acoustic piano. When paired with the spinning Leslie speaker, the HAMMOND's sonic versatility defined the electrified keyboard sound of genres from rock to soul to Gospel to jazz. This sound is as sought after today as ever. This system is for touring musicians who want the sounds and appearance B-3, but in a more portable, versatile instrument.
- Four full sets of Harmonic Drawbars plus pedal drawbars, just like on original Hammond console organs including the B-3.
- 12 additional virtual tone wheels are devoted to harmonically complex pedal tones (i.e. more than just 16' and 8' sine waves), as found on Hammonds beginning in 1945.
- Custom tone wheel profiles available via download.
- The best-ever Digital Leslie effect. Anything else is just a "rotary simulator."
- Continuously variable Digital Leslie speed if desired.
- Dedicated octave shift / transpose buttons.
- Improved DSP-based overdrive complemented by vacuum tube preamp.
- Improved vibrato-chorus.
- Dedicated on/off buttons and amount knobs for reverb, overdrive, and assignable multi-FX.
- Lower B drawbars can alternately control 9 MIDI CC messages for external gear.
- Left and right 1/4" outs can be used at the same time as Leslie output, for running the XK-5 through a real Leslie in parallel to stationary speakers, a subwoofer, or house P.A.
- More key-triggering modes for pedal-to-lower coupler (Manual Bass function).
- Firmware updatable via USB flash drive or directly from computer.

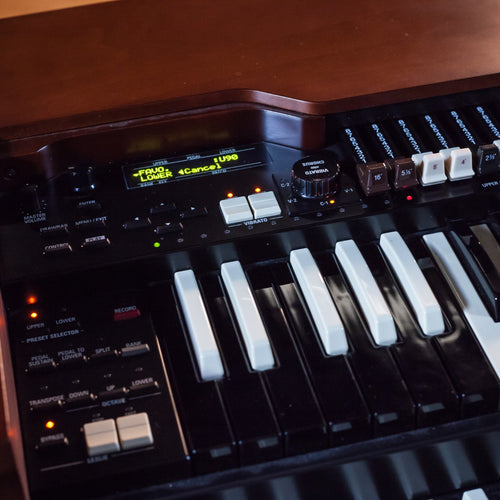

- Crisp new OLED display is more readable under different lighting conditions

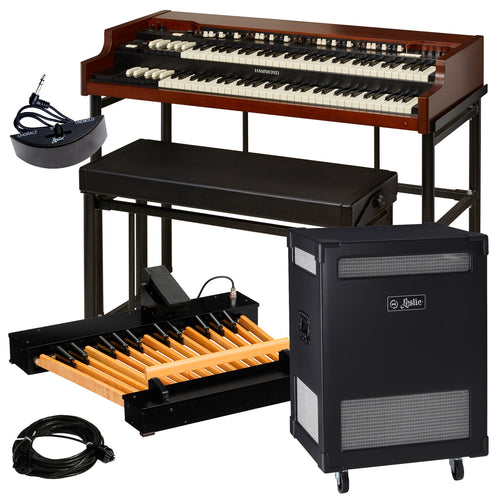

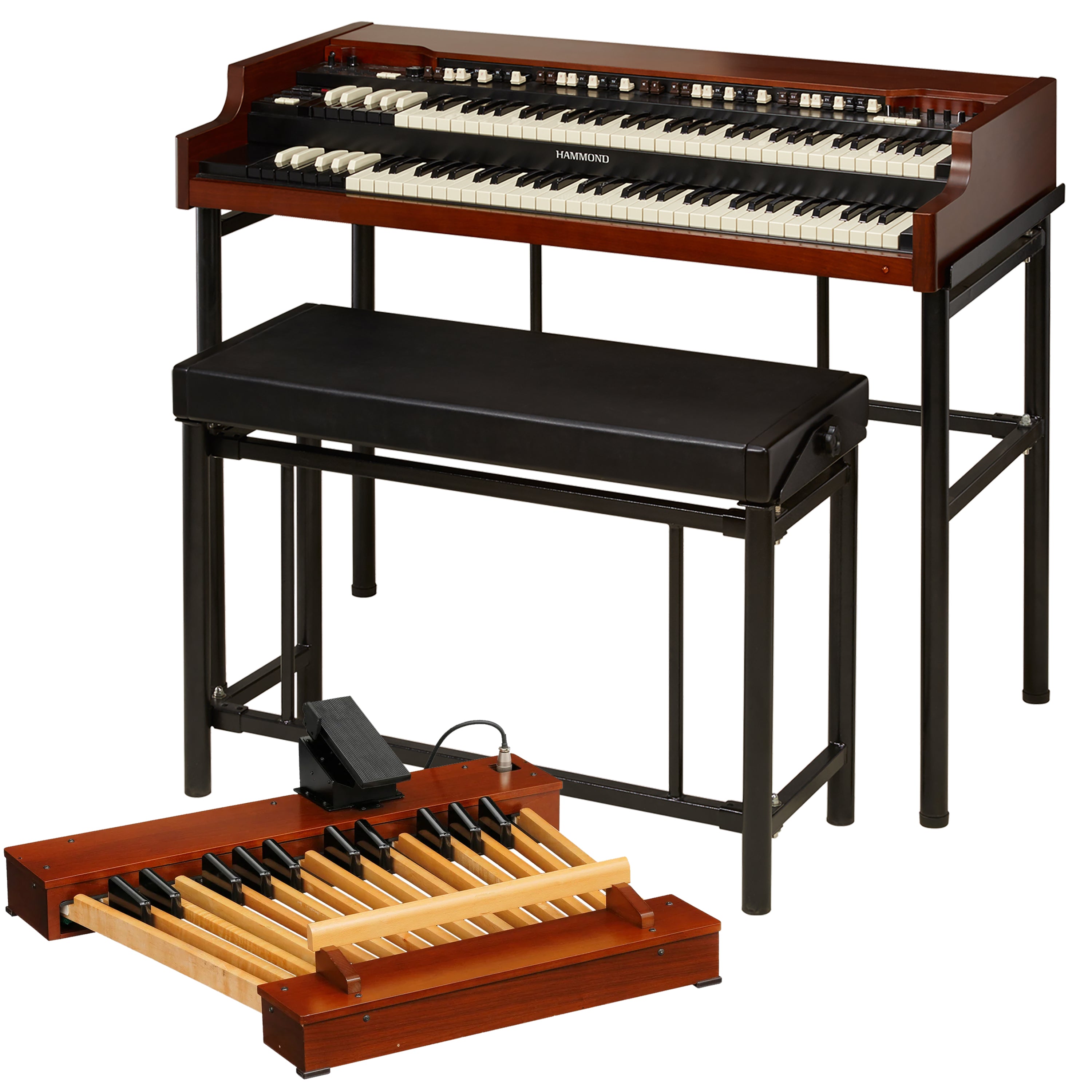

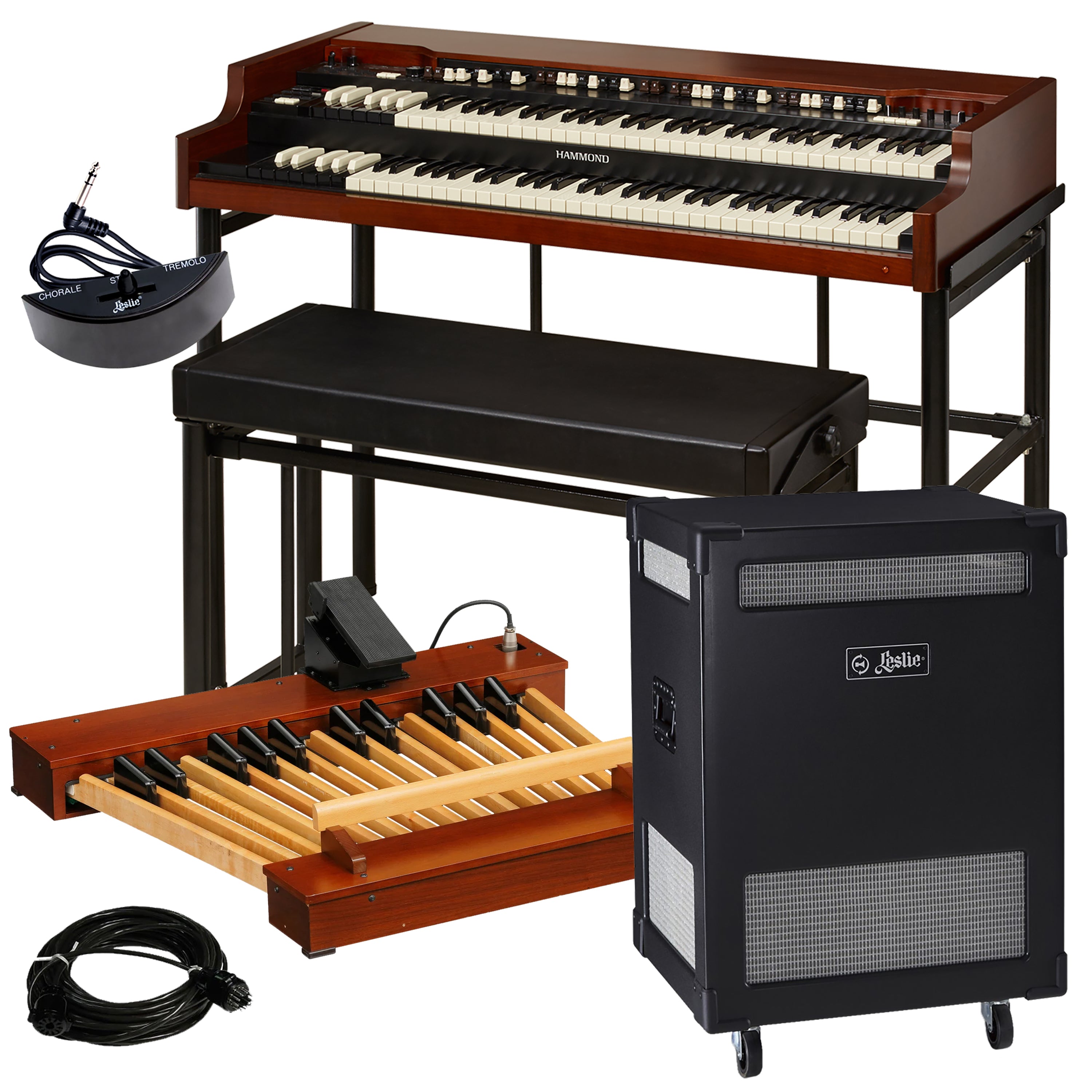

Hammond XK-5 Drawbar Organ

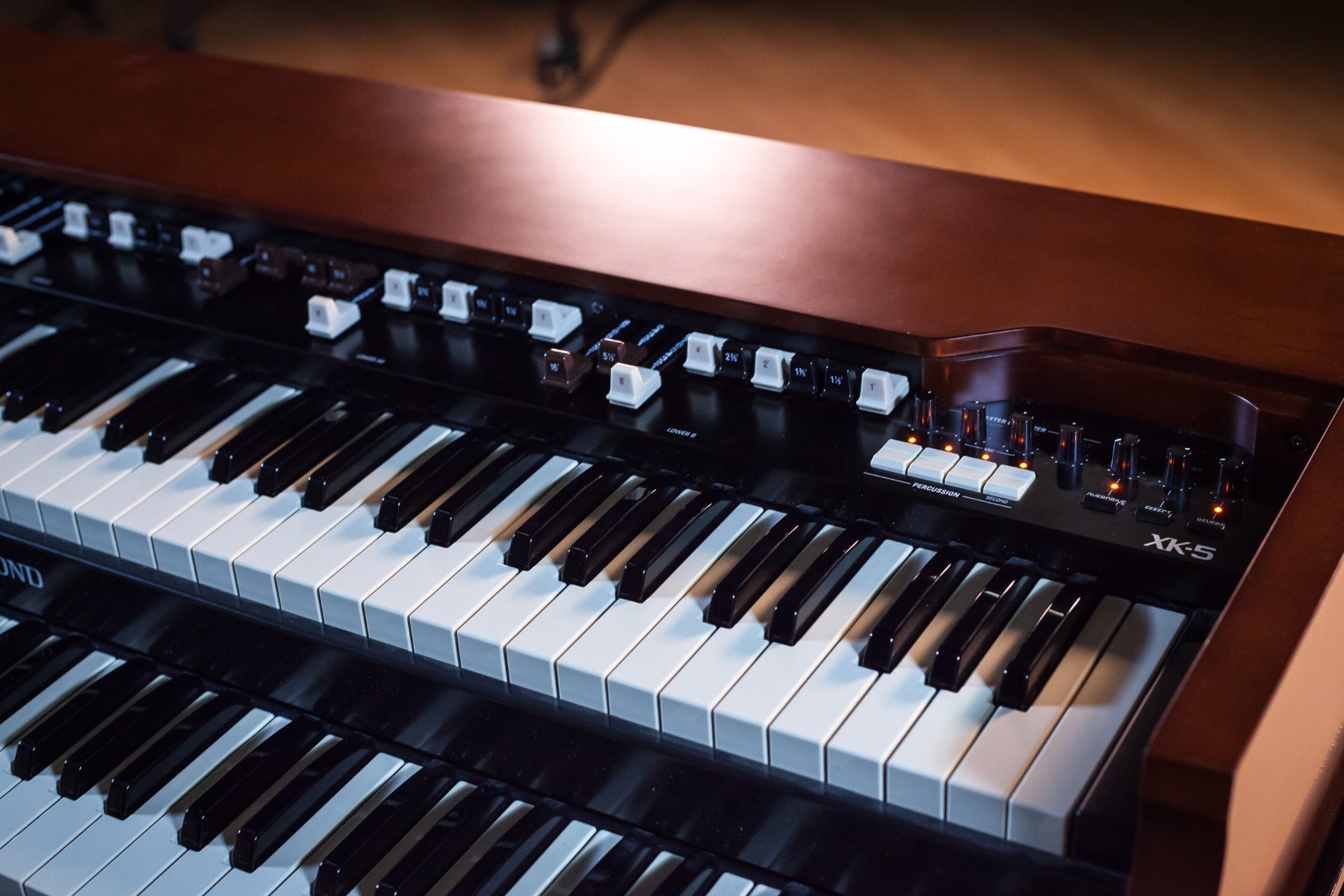

The most versatile organ/keyboard anywhere. For all practical purposes, the XK-5 is the “Upper Manual" of a B-3. All the familiar ingredients are there. Reverse Presets, Chorus- Vibrato on the left, Percussion on the right. A 2-tube preamp, and full MIDI controller capability are just a few of the features of this beast. The nameplate says "XK-5" but play it, and you’ll think "B-3".

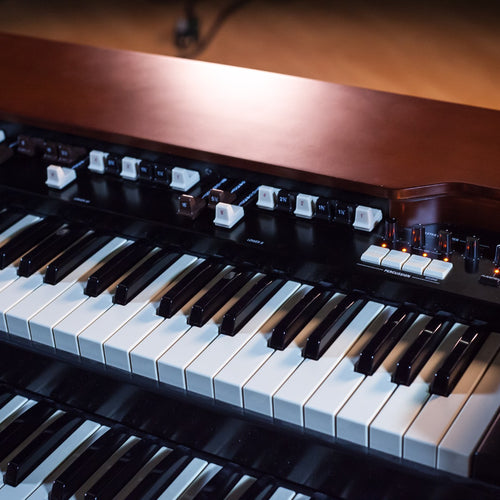

A-3 Lower Manual

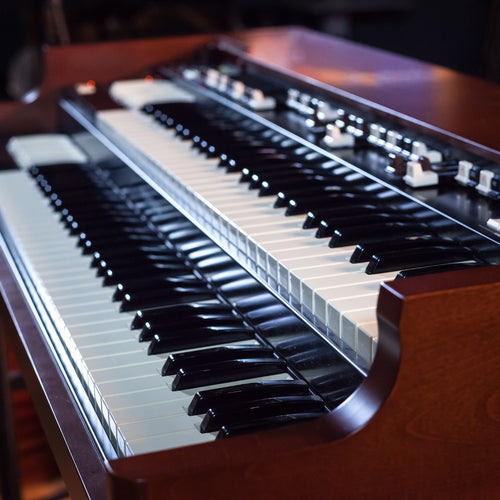

The A-3 lower manual uses the same key-bed and multi-contact system as the XK-5. It features the same high-quality cabinetry, with vertically extended side panels designed to cradle your XK-5. Remove the existing side panels from the main unit (a quick and simple operation), slide it into place, and you have an integrated dual-manual rig with a seamless appearance.

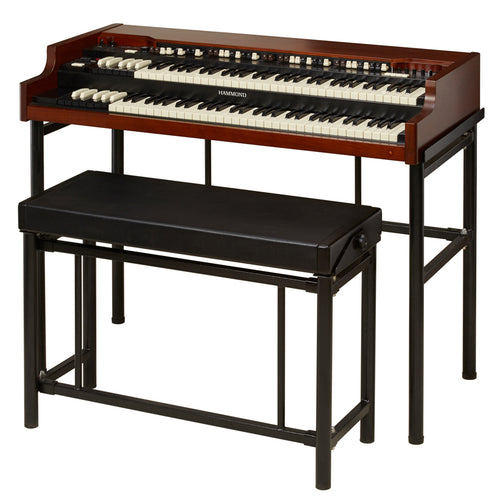

XK Pro Stand (Black)
Sturdy and well built, this stand holds the XK-5 and lower manual at an appropriate height for comfortable and ideal play.

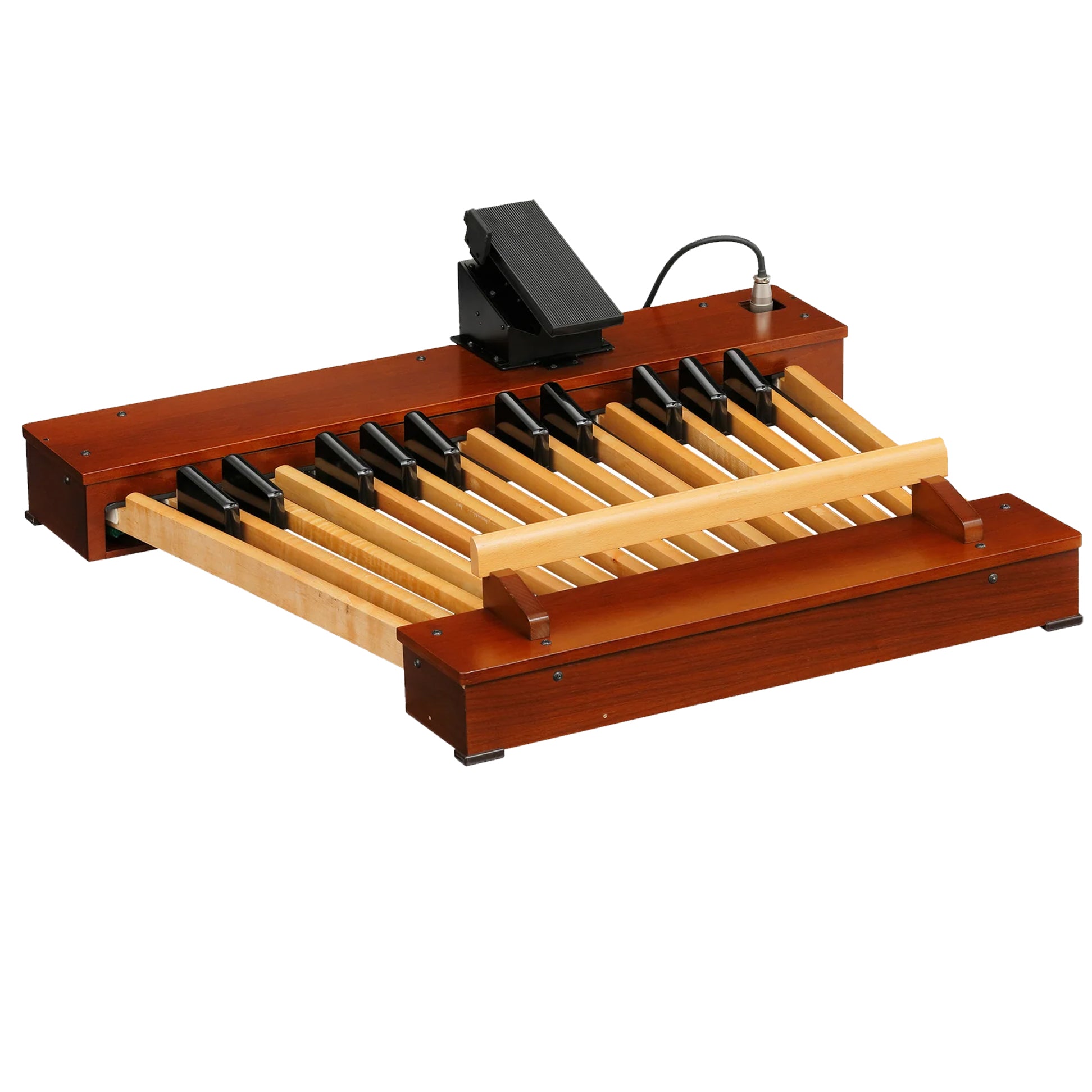

XPK-250BK 25-Note Pedal Board (Black)
For players who kick bass, the XPK-250 two-octave radiating pedalboard is included to provide you with a 25-note pedal board, and an on-board EXP-250 expression pedal.
Pro XK-System Bench (Black)
Sit comfortably at the correct level with this collapsable bench. Made out of the same materials used on the other components to match the style. Dimensions: Width 36", Depth 14-1/2", Height 23" , Weight 30 lbs
|Built In Speakers||No|
|Drawbar Sets||4 Sets|
|Included From Manufacturer||
XLK5 Pro Lower Manual
XK Pro Stand
XPK-250BK Pedal Board
Pro XK-System Bench
|Number of Keys||61 x 2 (Dual Manual)|
|Midi||In and Out|
|Mpn||XK-5 Heritage Pro System|
|Control Connections|| (2) Foot Controller
(1) Expression Pedal (EXP-100)
|Onboard Controllers|| (2 x 9) Upper Drawbars
(2 x 9) Lower Drawbars
(2) Pedal Drawbars
|Effects||Vibrato/Chorus, Tube Preamp, Overdrive, Multi Effects, Equalizer, Internal Leslie, Reverb, Master Equalizer|
|Half Moon Switch Input||Yes|
|Audio Outputs|| Dual 1/4" (L/Mono + R)
11-pin Leslie Connector
|Number of MIDI Control Zones||6|
|Pedal Board Input||H-BUS, 5-Pin MIDI|
|Programs/Presets|| 100 Factory Patches
100 User Patches
|Reverse Key Presets||Yes|
|Number of Songs||N/A|
|Number of Tracks||N/A|
|USB Flash Drive Port (to Device)||Program/Preset Storage|
|USB Port (to Host)||MIDI;Audio;System Updates;File Transfer|
|Voices of Polyphony|| 61 for Manuals
5 for Pedals
Hammond USA Limited 1-Year Warranty
Hammond-Suzuki, LTD. ('Hammond') warrants to the original consumer/purchaser that this product shall be free from any defect in material and workmanship for a period of one year from the date of purchase for an authorized Hammond dealer.
If a defect covered by this warranty occurs during this one-year warranty period, you should return the product within such one year to:
A. The dealer from whom you purchased it, together with a copy of your sales slip or similar proof-of purchase, and the dealer will repair the defective unit without charge for parts or labor.
B. The nearest Hammond Authorized Service Center together with a copy of your sales slip or similar proof-of-purchase, and the authorized service will repair the defective unit without charge for parts or labor.
The warranty does not cover damage or malfunction resulting from improper handling or abuse, accident, misuse, failure of electrical power, battery leakage, use on improper voltage or current, failure to follow normal procedures outlined in the User’s Manual, use with other products not manufactured or approved by Hammond, alteration, damage while in transit for repairs, repairs attempted by any unauthorized person or agency or any other reason not due to defects in materials or workmanship. This warranty is void if the serial number (if any) has been altered, defaced, or removed.
Any implied warranties arising out the sale of this hardware product, including but not limited to the implied warranties or merchantability and fitness for a particular purpose, are limited in duration to above one-year period. Liability is limited solely to the repair or replacement of the defective product in Hammond's sole discretion, and in no event shall include damages for loss of use or other incidental or consequential costs, expenses or damages incurred by the purchaser, including, without limitation, any data or information which may be lost or rendered inaccurate, even if Hammond has been advised of the possibility of such damages.
Hammond shall have no obligation to enhance or update any product once manufactured.
Some states do not allow limitations on how long any implied warranty lasts or the exclusion of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. (Available in USA only.)
To receive the protection of the limited one-year warranty, you must return your registration card within 10 days after the date of purchase.
