The HAMMOND B-3 organ and its siblings such as the C-3 and A-100 have been the single most influential keyboard instruments in musical history, perhaps apart from the acoustic piano. When paired with the spinning Leslie speaker, the HAMMOND's sonic versatility defined the electrified keyboard sound of genres from rock to soul to Gospel to jazz. This sound is as sought after today as ever. This system is for touring musicians who want the sounds and appearance B-3, but in a more portable, versatile instrument.
- Four full sets of Harmonic Drawbars plus pedal drawbars, just like on original Hammond console organs including the B-3.
- 12 additional virtual tone wheels are devoted to harmonically complex pedal tones (i.e. more than just 16' and 8' sine waves), as found on Hammonds beginning in 1945.
- Custom tone wheel profiles available via download.
- The best-ever Digital Leslie effect. Anything else is just a "rotary simulator."
- Continuously variable Digital Leslie speed if desired.
- Dedicated octave shift / transpose buttons.
- Improved DSP-based overdrive complemented by vacuum tube preamp.
- Improved vibrato-chorus.
- Dedicated on/off buttons and amount knobs for reverb, overdrive, and assignable multi-FX.
- Lower B drawbars can alternately control 9 MIDI CC messages for external gear.

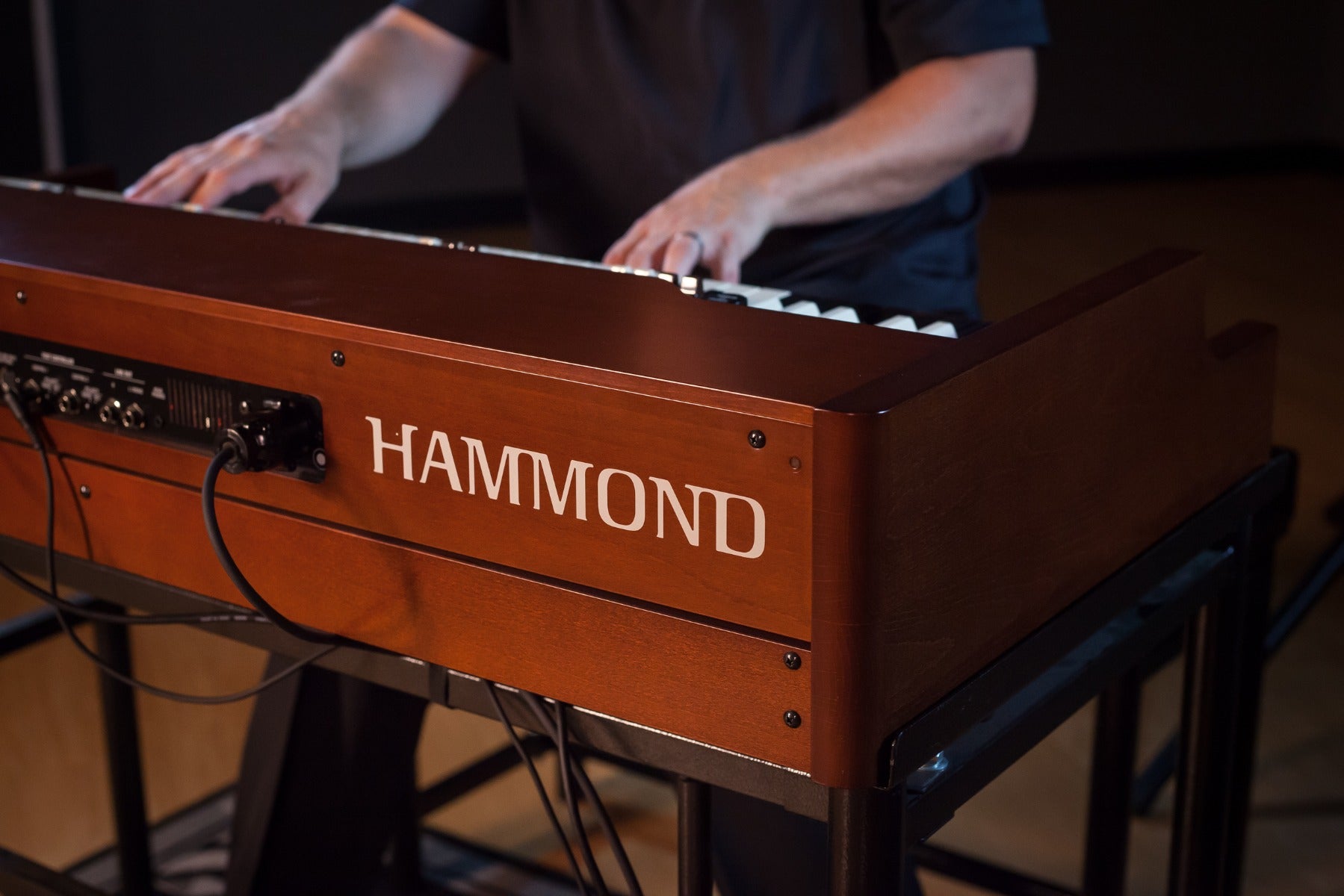

- Left and right 1/4" outs can be used at the same time as Leslie output, for running the XK-5 through a real Leslie in parallel to stationary speakers, a subwoofer, or house P.A.
- More key-triggering modes for pedal-to-lower coupler (Manual Bass function).
- Firmware updatable via USB flash drive or directly from computer.

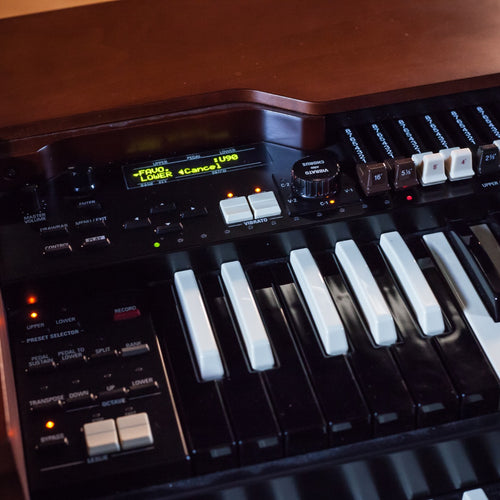

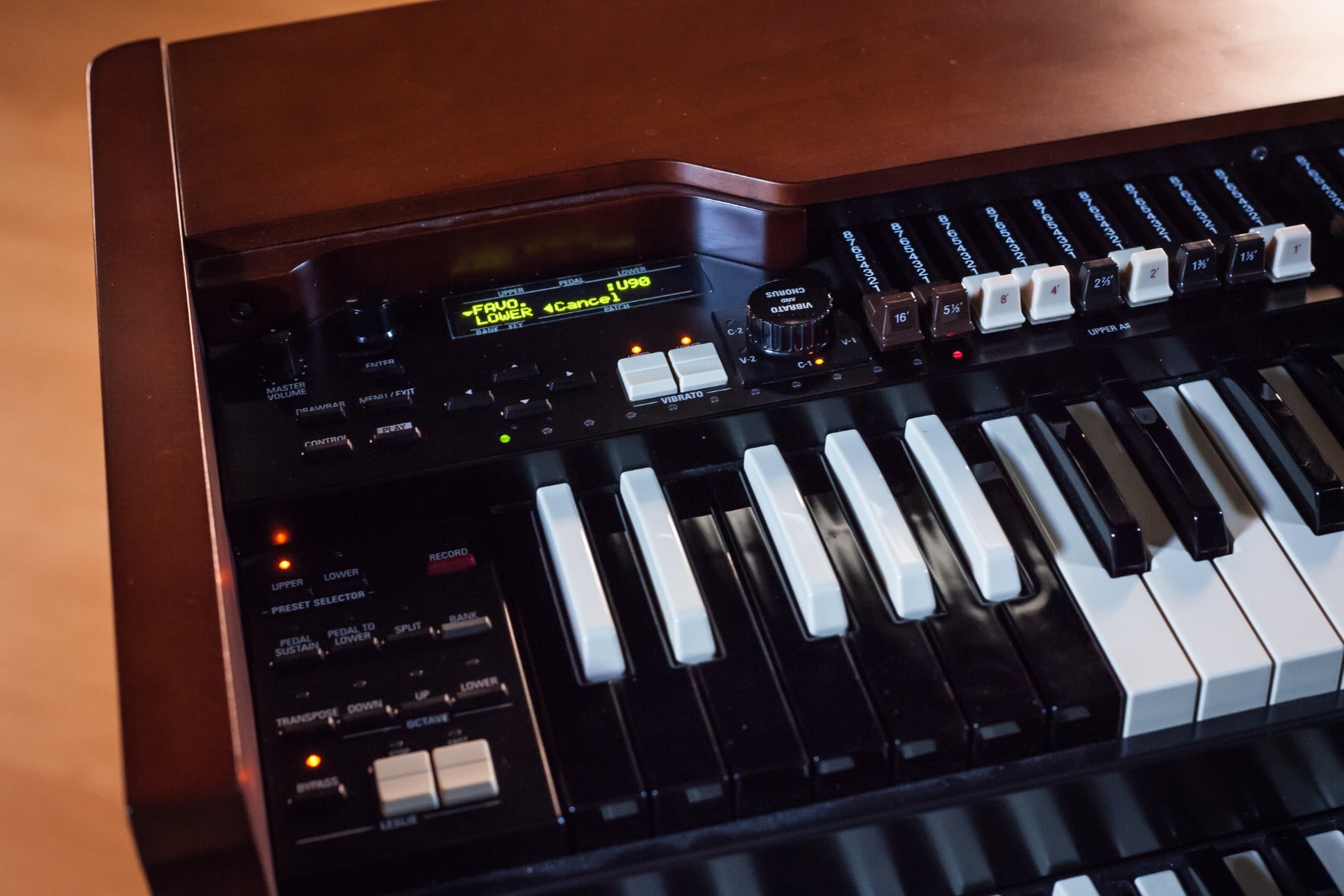

- Crisp new OLED display is more readable under different lighting conditions
Hammond XK-5 Drawbar Organ

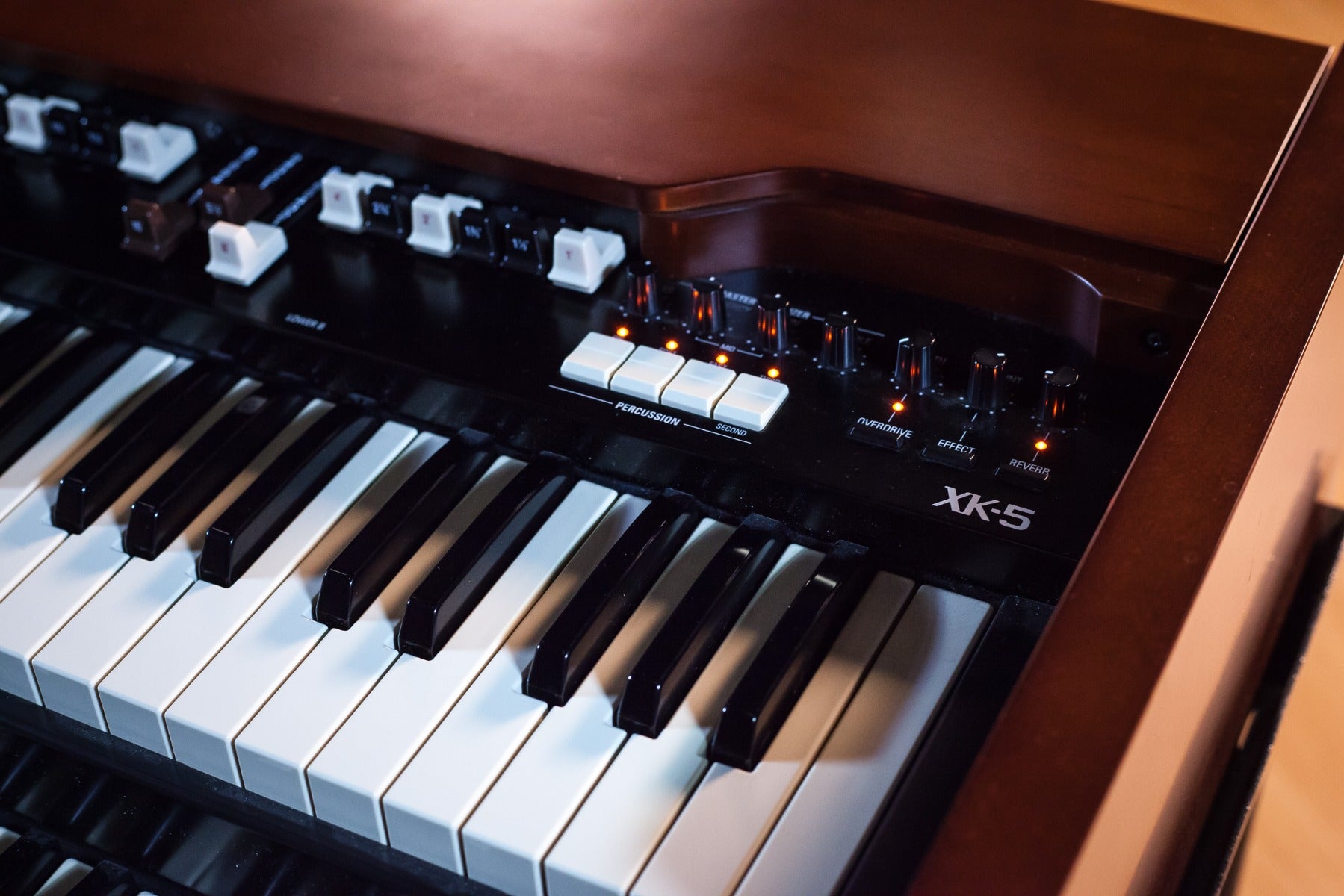

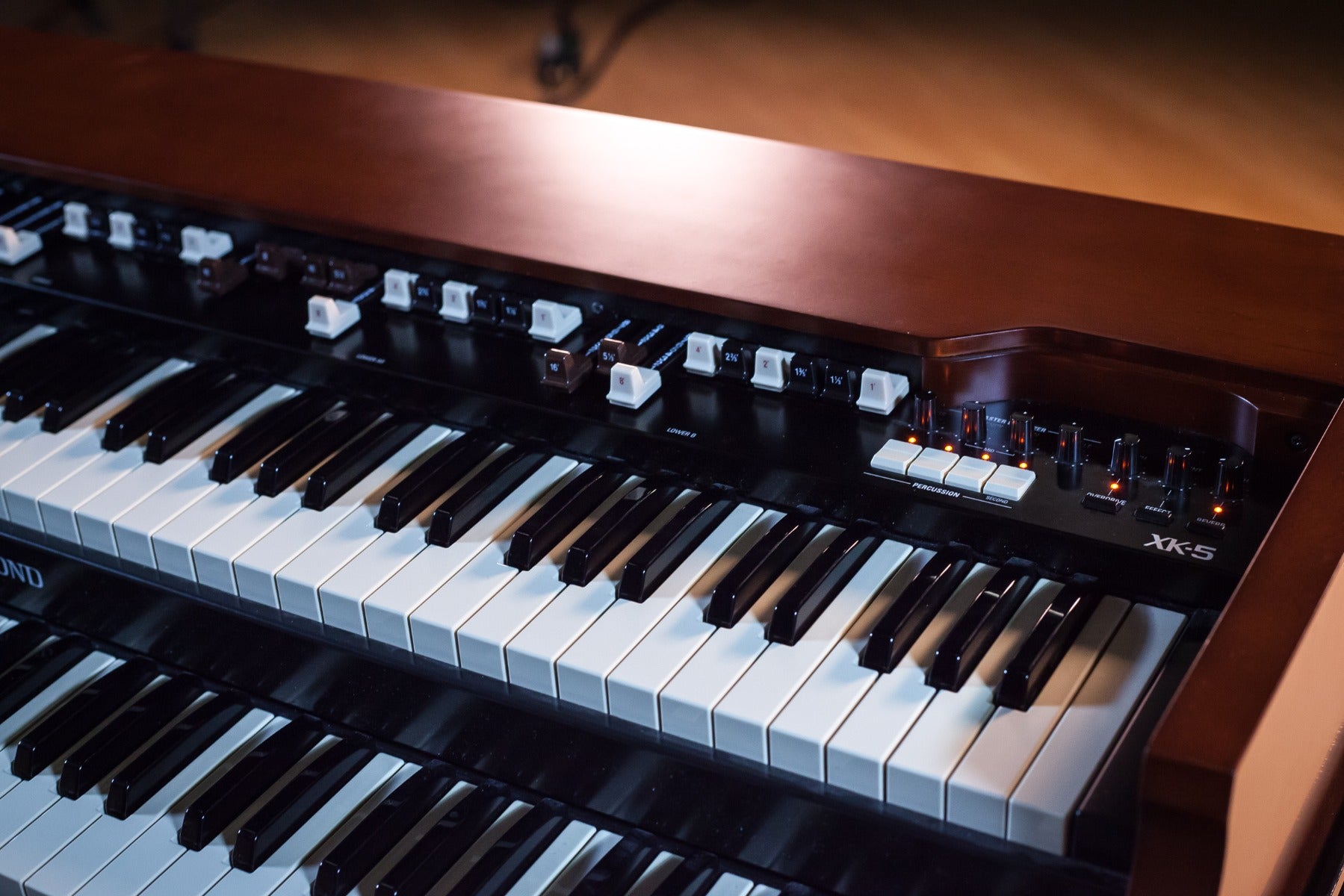

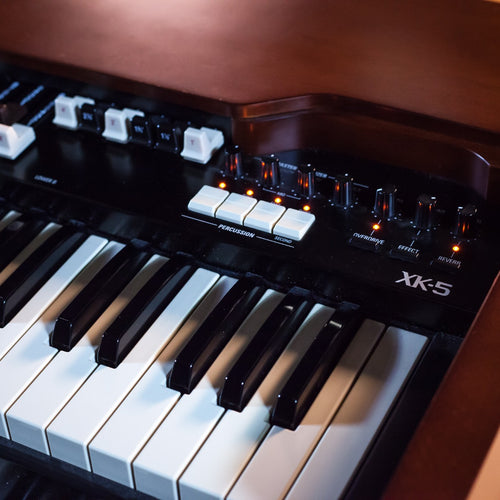

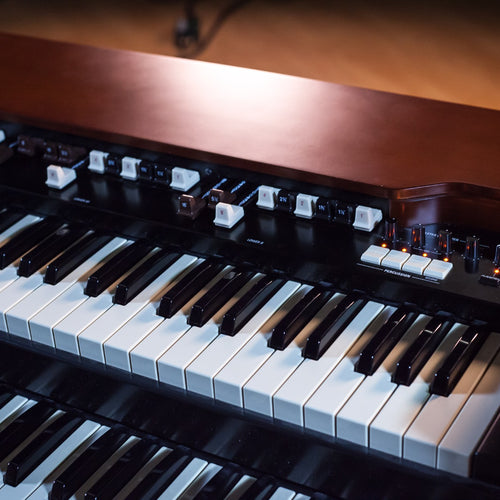

The most versatile organ/keyboard anywhere. For all practical purposes, the XK-5 is the “Upper Manual" of a B-3. All the familiar ingredients are there. Reverse Presets, Chorus- Vibrato on the left, Percussion on the right. A 2-tube preamp, and full MIDI controller capability are just a few of the features of this beast. The nameplate says "XK-5" but play it, and you’ll think "B-3".

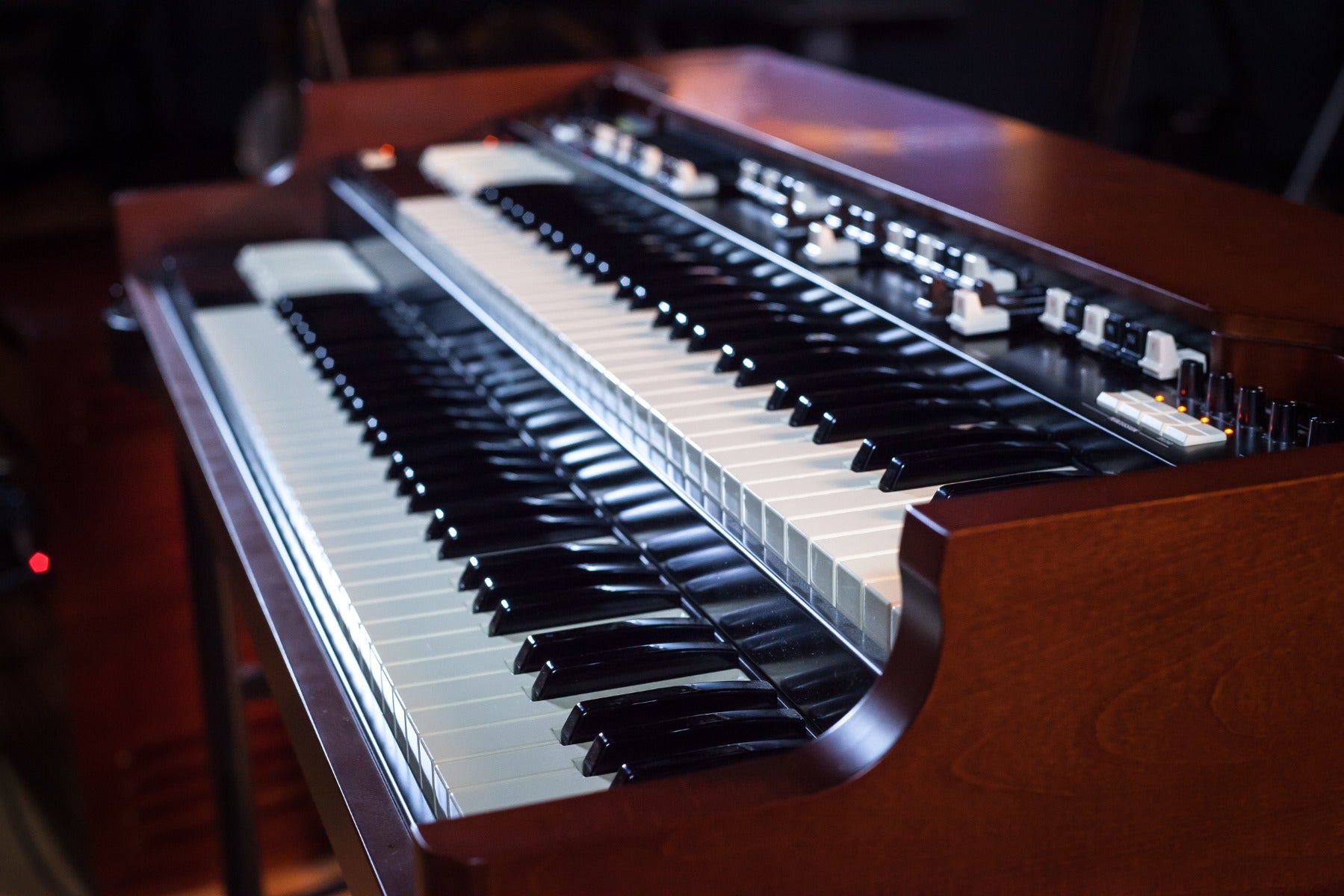

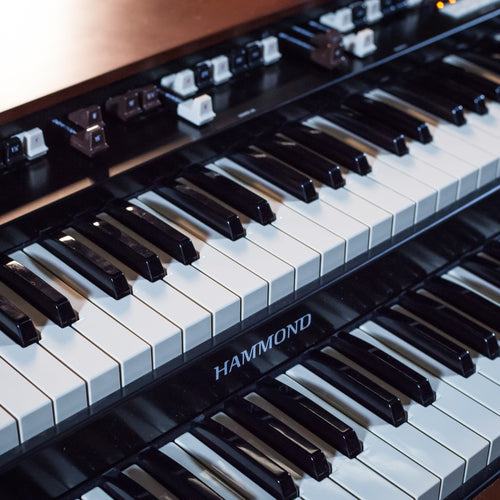

XLK-5 Lower Manual

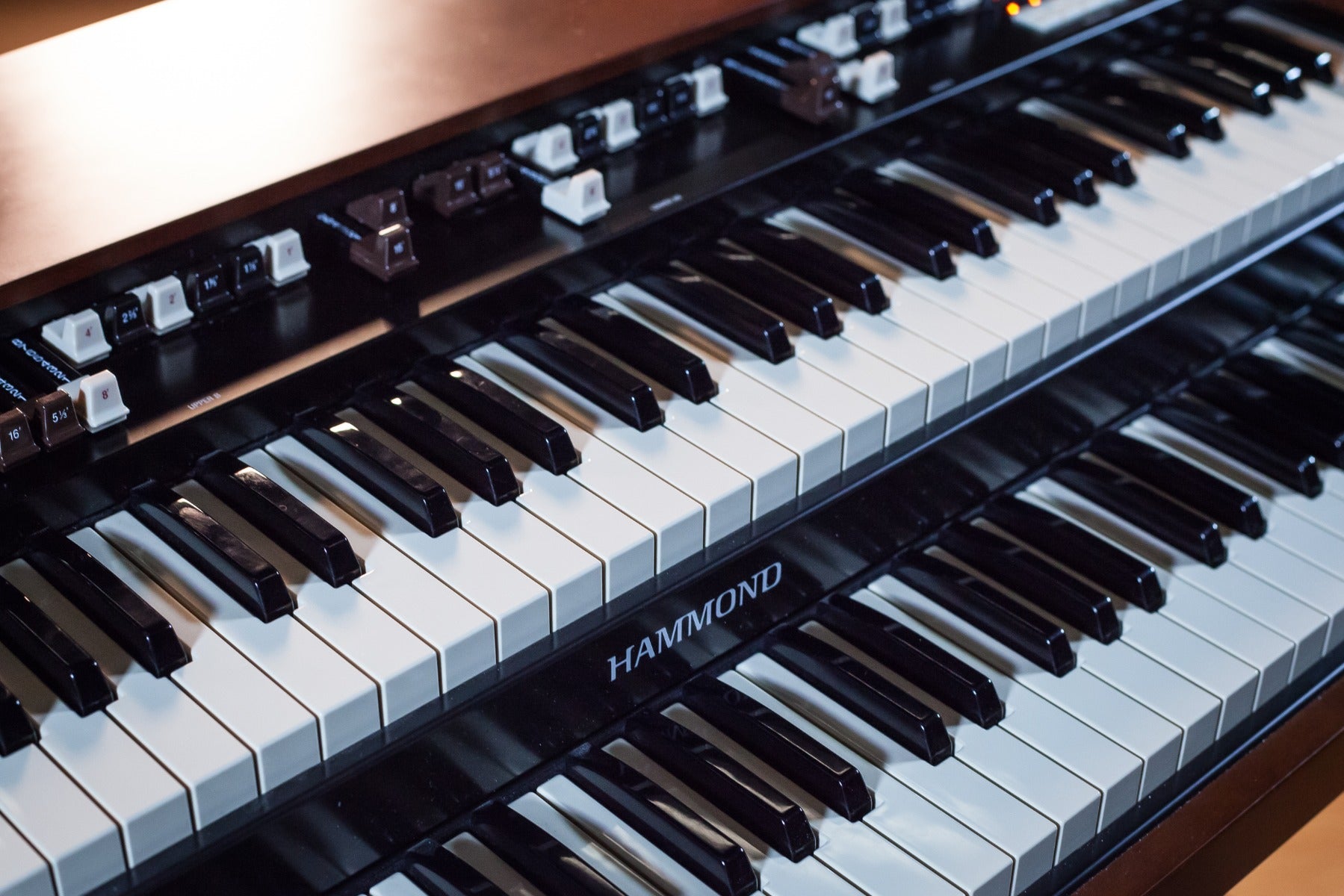

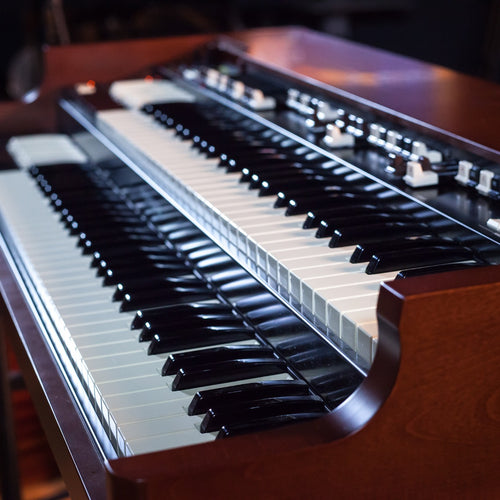

The XLK-5 lower manual uses the same key-bed and multi-contact system as the XK-5. It features the same high-quality cabinetry, with vertically extended side panels designed to cradle your XK-5. Remove the existing side panels from the main unit (a quick and simple operation), slide it into place, and you have an integrated dual-manual rig with a seamless appearance.
XK Pro Stand (Black)
Sturdy and well built, this stand holds the XK-5 and lower manual at an appropriate height for comfortable and ideal play.

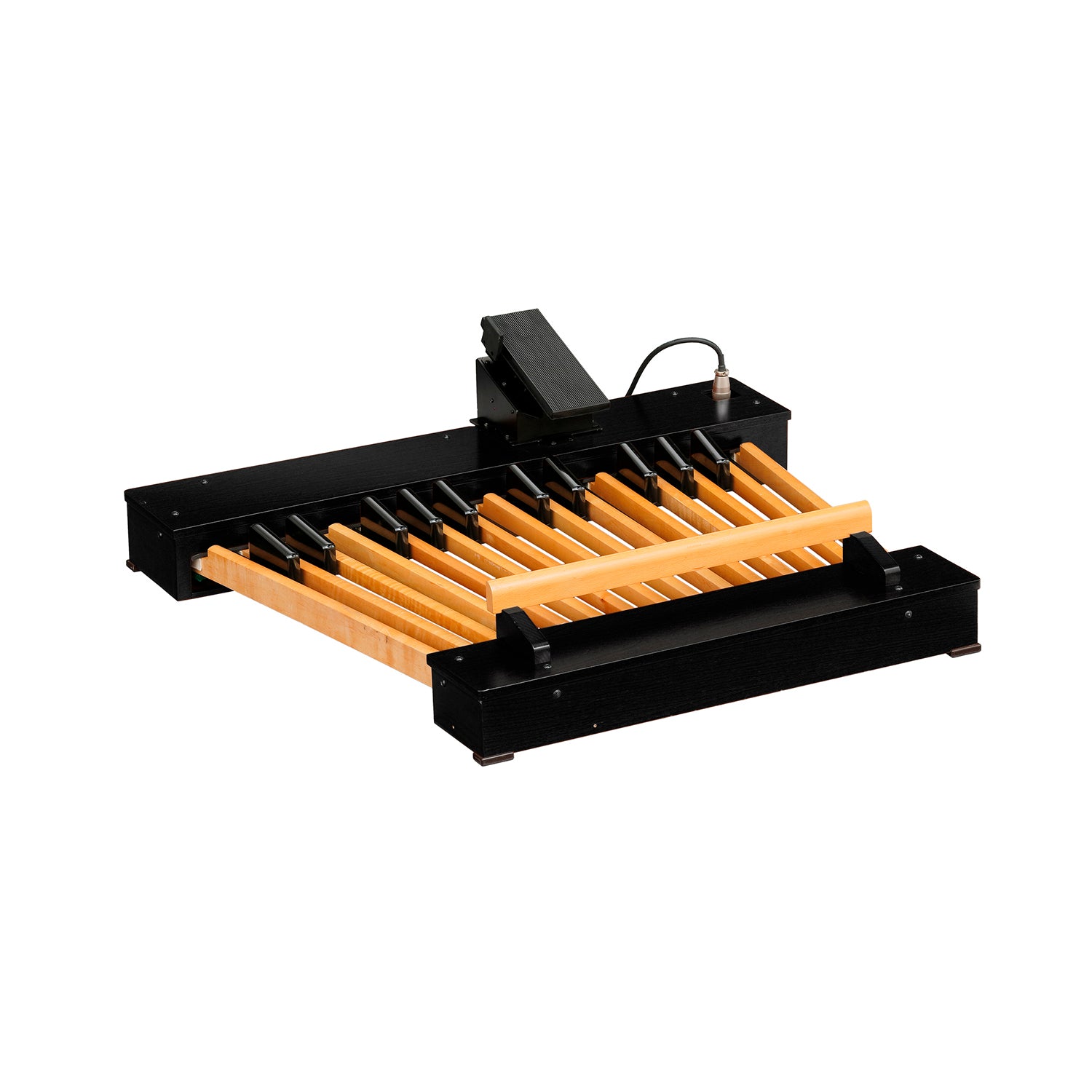

XPK-250BK 25-Note Pedal Board (Black)
For players who kick bass, the XPK-250 two-octave radiating pedalboard is included to provide you with a 25-note pedal board, and an on-board EXP-250 expression pedal.

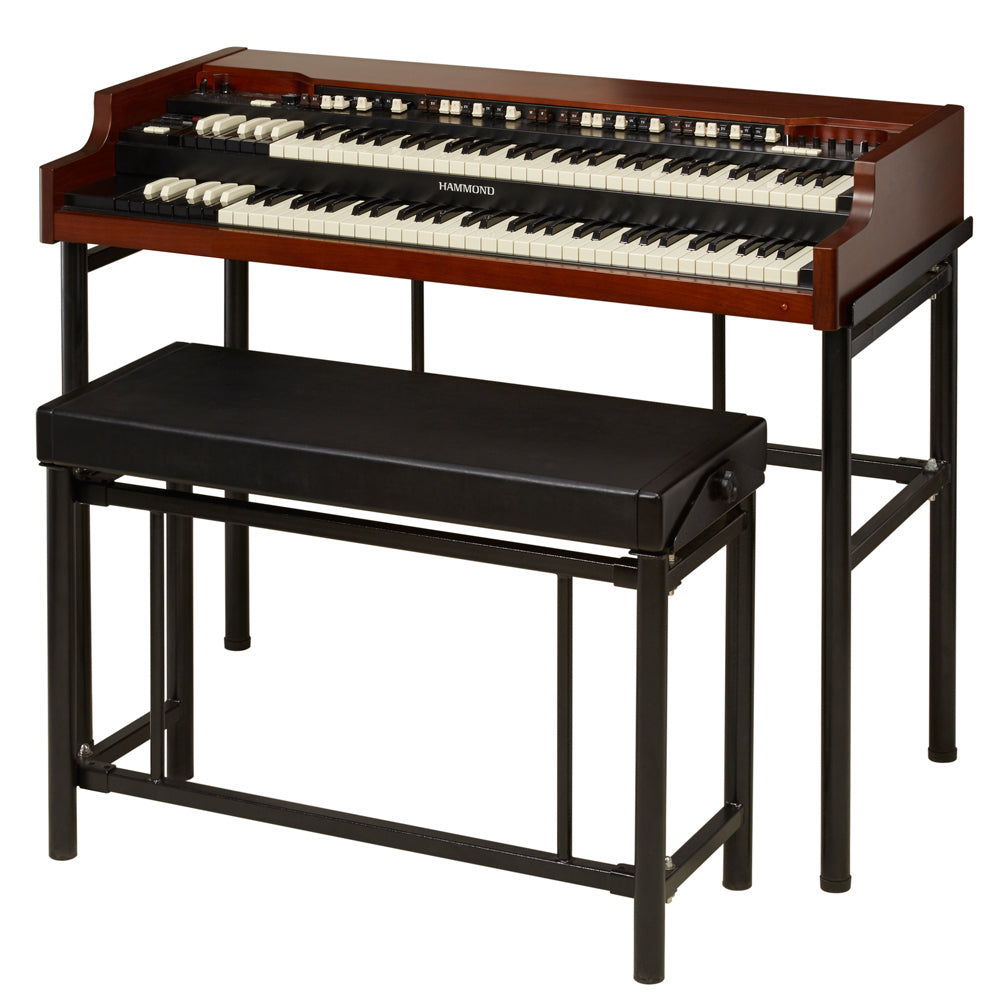

Pro XK-System Bench (Black)
Sit comfortably at the correct level with this collapsable bench. Made out of the same materials used on the other components to match the style. Dimensions: Width 36", Depth 14-1/2", Height 23" , Weight 30 lbs
| Specification | Value |
|---|---|
| SKU | HAM-XK5HPROSYS |
| Vendor | Hammond |
| Built In Speakers | No |
| Drawbar Sets | 4 Sets |
| Drawbar Style | Physical |
| Included From Manufacturer |
XK-5 Organ XLK5 Pro Lower Manual XK Pro Stand XPK-250BK Pedal Board Pro XK-System Bench |
| Keys Weighted | No |
| Number of Keys | 61 x 2 (Dual Manual) |
| Midi | In and Out |
| MPN | XK-5 Heritage Pro System |
| Accompaniments | No |
| Control Connections |
(2) Foot Controller (1) Expression Pedal (EXP-100) |
| Onboard Controllers |
(2 x 9) Upper Drawbars (2 x 9) Lower Drawbars (2) Pedal Drawbars |
| Duet Mode | No |
| Effects | Vibrato/Chorus, Tube Preamp, Overdrive, Multi Effects, Equalizer, Internal Leslie, Reverb, Master Equalizer |
| Half-Damper Support | No |
| Half Moon Switch Input | Yes |
| Audio Outputs |
Dual 1/4" (L/Mono + R) 11-pin Leslie Connector 1/4" Headphones |
| Key Action | Waterfall |
| Layer Feature | No |
| Leslie Output | 11-Pin |
| Metronome | No |
| Number of MIDI Control Zones | 6 |
| Organ Models | Tonewheel;Transistor;Pipe |
| Pedal Board Input | H-BUS, 5-Pin MIDI |
| Pedal Drawbars | Yes |
| Programs/Presets |
100 Factory Patches 100 User Patches |
| Reverse Key Presets | Yes |
| Rhythm Patterns | N/A |
| Rotary Simulation | Yes |
| Number of Songs | N/A |
| Split Feature | Yes |
| Number of Tracks | N/A |
| Transpose Feature | Yes |
| USB Flash Drive Port (to Device) | Program/Preset Storage |
| USB Port (to Host) | MIDI;Audio;System Updates;File Transfer |
| Voices of Polyphony |
61 for Manuals 5 for Pedals |
Hammond products are covered by a limited 1 (one) year warranty. Hammond-Suzuki, LTD warrants to the original consumer/purchaser that this product shall be free from any defect in material and workmanship for a period of one year from the date of purchase for an authorized Hammond dealer. For more information please visit www.hammondorganco.com
