Name: Modal Electronics Carbon8M Experimental Digital Synth Module CABLE KIT
Brand: Modal Electronics
Price: 979.0 USD
Availability: PreOrder

Back To Synthesizers

New

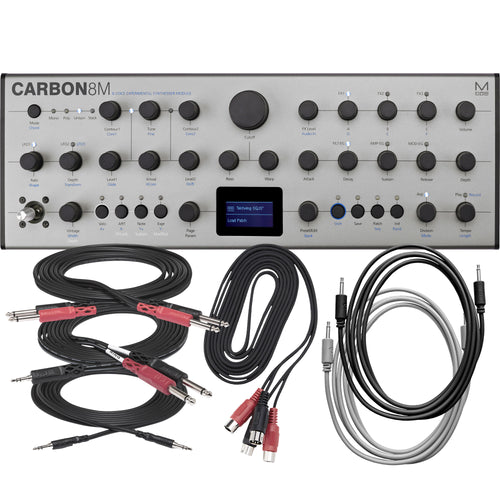

Collage showing components in Modal Electronics Carbon8M Experimental Digital Synth Module CABLE KIT

Modal Electronics Carbon8M Experimental Digital Synth Module View 2

Modal Electronics Carbon8M Experimental Digital Synth Module View 3

Modal Electronics Carbon8M Experimental Digital Synth Module View 4

Modal Electronics Carbon8M Experimental Digital Synth Module View 1

7 items included

$979.00 ~~$1,047.78~~

You Save $68.78

Modal Electronics Carbon8M Experimental Digital Synth Module CABLE KIT

Quantity

Pre-order to reserve yours today - we'll contact you with the latest ETA

Authorized Dealer

This Kraft Music Bundle Includes

$979.00 ~~$1,047.78~~

You Save $68.78

Click on a product to view more details and upgrade options.

Hosa CPP-203 Stereo Interconnect Dual 1/4" TS to 1/4" TS - 10'

Sells separately for $16.95

Includes 1

In Stock

This dual 1/4" cable is designed to connect your instrument to any unit with right and left channels. Great for keyboards, mixing consoles, PA systems, or other sound reinforcement or recording applications.

View Full Details

Upgrade Bundle Item

Hosa CPP-203 Stereo Interconnect Dual 1/4" TS to 1/4" TS - 10'

---

In Stock
Hosa CPP-204 Stereo Interconnect Dual 1/4" TS to 1/4" TS - 13'

+$3.00

In Stock
Hosa HPP-010X2 Dual REAN 1/4" TS Cable - 10'

+$15.00

In Stock

Hosa MID-203 Dual MIDI Cable - 10'

Sells separately for $19.95

Includes 1

In Stock

This convenient dual cable carries both MIDI in and out signals.

View Full Details

Upgrade Bundle Item

Hosa MID-203 Dual MIDI Cable - 10'

---

In Stock
Hosa MID-204 Dual MIDI Cable - 13'

+$3.00

In Stock

Modal Electronics Carbon8M introduces radical new ways to create, experiment with and perform next-generation synth sounds. Carbon8M's sound engine, twice as complex as in Modal's acclaimed Argon8 and Cobalt8 series, embeds complex waveform algorithms and wavetables into an 8-voice superior synth engine with outstanding filter technology and exciting LFO capabilities.

8-voice polyphonic with two independent high-resolution digital oscillators per voice
56 complex waveforms per oscillator including 18 digital algorithms and 38 wavetables
Advanced XCore modifiers including waveshape, wave fold, phase distortion and others
Extended oscillator drift and 'vintage' parameter
34 resonant filter types including morphable and static filters
Filter cutoff scaling with two distinctive modes
Three dedicated envelope generators that can be accessed independently simultaneously
Three audio-rate LFOs (two poly, one global) with tempo sync and over 15 different shapes
Eight assignable modulation slots and four additional fixed modulation routings
12 modulation sources and 55 modulation destinations
Polyphonic realtime sequencer with 512 notes and four recordable/editable parameter animations
Polyphonic step sequencer with 64 steps, 8 notes per step, 4 lanes of parameter lock-style animation
Built-in 32-step programmable arpeggiator with rest capability and up to 2,048 steps before repeating
Three independent and user-configurable stereo effects engines with 26 effects algorithms
500 patch memories, all fully editable and pre-populated with 300 factory programs
100 sequencer presets that can be linked to any patch for quickly loading arrangements
8 quick recall slots accessible from the panel for quickly loading your favorite patches
Four-axis joystick that can be assigned to a huge range of modulation destinations and virtually 'locked'
Multiple keyboard modes including mono, poly, unison and stack
Glide/portamento with both legato and staccato modes
1.54" OLED display for instant visual feedback at all times of playing/editing

Raw and bold sound sources

Modal Carbon8M provides two oscillators with 56 cores each. They generate a series of unique high-resolution algorithms or wavetables for exceptional sounds that range from aggressive and bold to ear-pleasing soft and lush tones. Each patch can contain a combination of any two algorithms or wavetables. Only one parameter is required to contour sonic sweet spots for further sound explorations and shaping.

Mangle and tweak

Carbon8M provides a wide range of exciting and sophisticated XCore oscillator modifiers, such as phase distortion, wavefolding and wave-shaping, that allow sculpting characterful sound variations for new, innovative synth sounds to be dialed in to taste. The massive filter section contains a wide selection of 34 different filter types. The available collection includes reminiscences of vintage filter models and modern Modal filter adaptations to carve or boost the crucial frequencies in your patch. Some models also offer drive and morph parameters to rough up the sonic spectrum or mangle sound in the most peculiar and spectacular ways.

Reshape and modulate

Three LFOs with variable pulse widths, variable slope triangles, dual rate ramps and more highlight Carbon8M's modulation section. Three envelope generators allow detailed editing to modulate pitch, filter and amp. Twelve modulation routes offer various ways to mangle the audio shapes and outputs.

Bring in some movement

The integrated 512-note realtime/step sequencer with four powerful animation lanes invites you to compose massive and complex melodic patterns. The polyphonic step sequencer mode enables easy step input for note and animation values. Multiple sequencer trigger modes coupled with the powerful onboard arpeggiator (programmable up to 32 steps) and features such as chord hold, inversions, transpose and sustain latch unleash powerful moving patterns for live and studio performances.

Desktop or rack

Carbon8M's rugged steel and aluminum enclosure underlines the synth's professional approach. The desktop design fits on every producer's table, while the included brackets help to mount Carbon8M into a live or studio rack. For direct access of the parameters, Carbon8M features 13 switched encoders, 13 encoders, 9 buttons and an X/Y joystick for pitch or modulation. MPE support offers new ways of creative expression for sophisticated performers.

Studio-grade effects included

Bring your sounds to perfection with the onboard 3-slot stereo effects engine. To round up your synth tone creations, 26 studio-grade effects algorithms add character and depth, including rich reverbs, warm chorus effects, swirling phasers and flangers, tremolo, lo-fi, rotary speaker, wide delays, equalizer, compressor and more.

Looking to connect

Carbon8M has all the physical connections required to embed the instrument in any studio, production or live performance environment. Control the synth using USB, monitor with headphones or dedicated line outputs, sync with external gear using 5-pin MIDI in and out or the 1/8" sync I/O, and take control of your sound using the built-in sustain and expression inputs. By poly-chaining any two Carbon8M devices, the number of voices is easily doubled to 16.

Modal Patch Library and ModalApp

The Modal Patch library hosts hundreds of sound banks and individual sounds, from classic synth tones from the past to new contemporary textures. All sound banks in the library are free and easily imported through the free ModalApp companion software. ModalApp brings the comfort of screen-based editing on your computer or mobile device. Available as a standalone app for macOS, Windows, iOS, iPadOS or Android systems and in VST3 and AU plug-in formats, it is the perfect companion for synth enthusiasts looking to deep dive into all sound forming and performance parameters to create their signature sounds and to backup and manage patches and sequences.

SKU	MOD-CARBON8MCK
Model Name	Carbon8M
Vendor	Modal Electronics
Aftertouch	Yes
Analog Digital	Digital
Built In Speakers	No
Included From Manufacturer	Rack ears for 19" rackmount installation USB-B to USB-A cable Power supply
Number of Keys	None
Midi	In, Out, and USB
Mono Poly	Polyphonic
MPN	CARBON8M
Product Unique Features	ModalApp editor and patch librarian available as standalone app, Audio Unit or VST plug-in
Arpeggiator	Yes
Control Connections	1/8" sync input 1/8" sync output
Onboard Controllers	4-axis assignable modulation joystick
Effects	3 × independent stereo effects engines Chorus, phaser, flanger, tremolo, lo-fi, rotary, stereo delay, ping-pong delay, x-over delay and reverb
Audio Inputs	1/8" stereo external audio input
Audio Outputs	Dual 1/4" stereo output 1/4" stereo headphone output
Oscillators per Voice	2
Product Weight	4.63 lb
Programs/Presets	500 patch storage locations, all fully editable Ships with 300 factory programs
Sequencer	Realtime 512-step sequencer with quantize 4 × recordable/editable parameter automation lanes
USB Port (to Host)	MIDI;System Updates;Editor/Librarian/Patch Manager
Voices of Polyphony	8
Width	15.1"
Depth	5"
Height	3.2"
