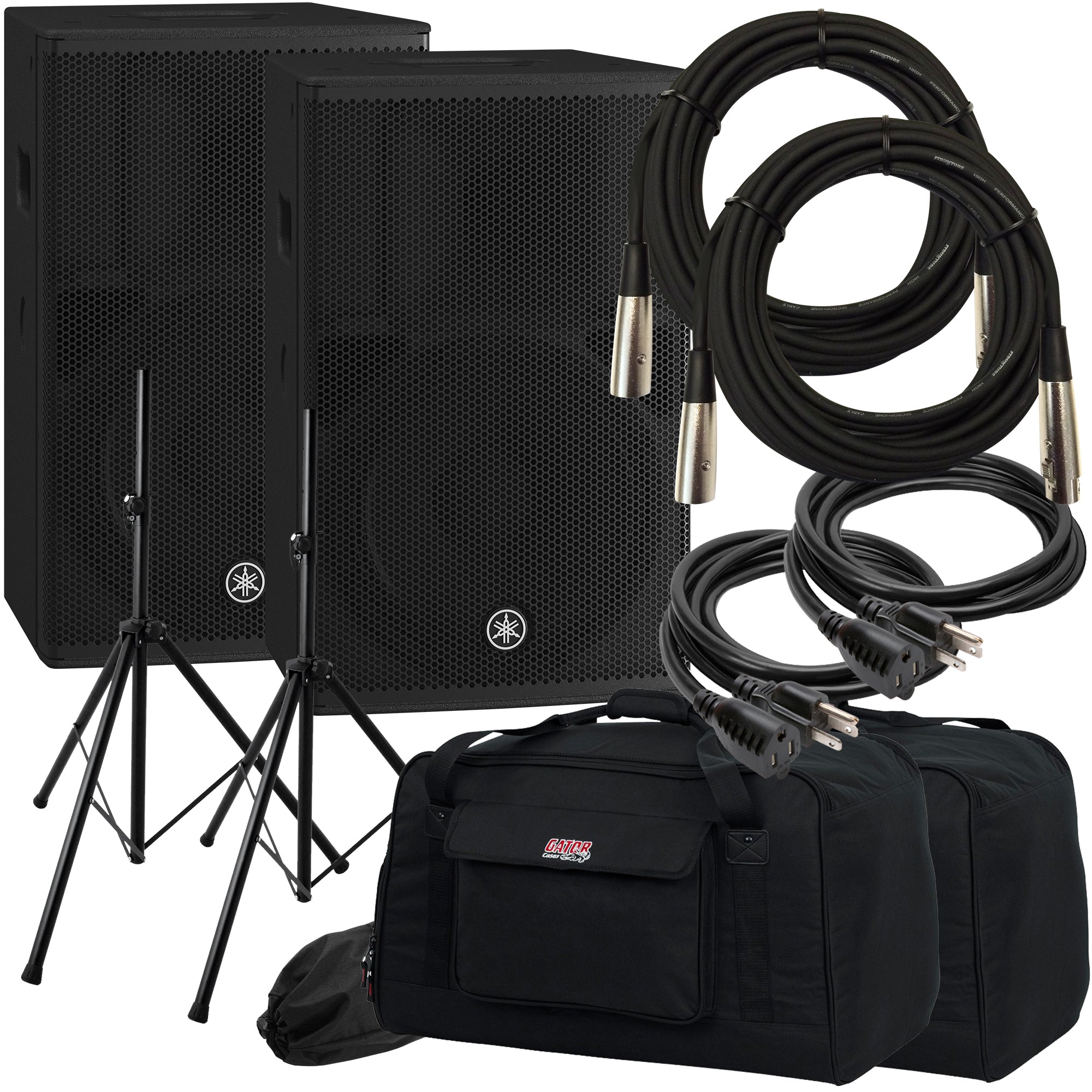

The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class. The DHR12 is suitable for fixed installation and utilities, featuring custom transducers driven by a DSP-equipped class-D power amplifier to deliver stunning sound quality and clarity.
- 12" powered loudspeaker with 1000W of class-D power
- Compact and portable yet capable of high SPL for a wide range of applications
- 1.4" HF compression driver mated to a rotatable 90 x 60 degree CD horn
- Maximum output of 130dB SPL and wide frequency response range of 48Hz-20kHz
- Ultra-Precise 48bit DSP processing for clear high-definition sound and built-in D-Contour intelligent dynamic control
- Durable polyurea coated compact plywood enclosure
- Dual pole sockets to allow straight 0° placement or a 7° downtilt to cover your audience's needs
- Optional UB-DXRDHR12 wall mount bracket
High-Efficiency 1000W Class-D Amplifier
The DHR12M’s lightweight, high performance Class-D amplifier is capable of producing up to 1000W of power, achieving an SPL of 130dB, delivered with remarkable clarity and dynamic characteristics.
Custom Designed Transducer
The high power output woofers deliver well- defined, powerful bass with minimal distortion, while the 1.4" precision compression driver produces accurate mid-range and high frequencies.
A Rugged, Highly Portable Cabinet
Like Yamaha's acclaimed DZR loudspeakers, the DHR Series feature plywood enclosures that deliver outstanding durability and acoustic performance.
Easy-to-use Onboard 2-Channel Mixer
DHR12 has two input channels. CH1 has a combo jack which accepts either an XLR or TRS Phone, at mic or line level allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a pair of RCA pin Jacks for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.
| SKU | YAM-DHR12AE |
| Vendor | Yamaha |
| Active Passive | Active |
| Battery Powered | No Battery Power |
| MPN | DHR12 |
| Speaker Application | Full-Range |
| Speaker Size Filterable | 12 |
| System Power | 1000 Watts |
| Enclosure Material | Premium plywood cabinet finished with tough polyurea coating |
| Woofer/Low Frequency | 12" Cone |
| Tweeter/Horn | 1.4" diaphragm, 1" throat |
| Frequency Range | 48 Hz–20 kHz |
| Power | 1000W |
| Sensitivity | INPUT1 : LINE= 0dBu / MIC= -32dBu, INPUT2= 0dBu |
| Connectors | INPUT1: Combo x1 INPUT2: Combo x1 + RCA-pin x2 (Unbalanced) OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
| Pole Mount | Yes (Φ35 mm x2 (0° or -7°)) |
| Flyable | Yes |
| Height | 22.8" |
| Width | 14.1" |
| Depth | 13.4" |
| Product Weight | 42.3 lbs |
Yamaha products are designed and manufactured to provide a high level of defect-free performance. Yamaha Corporation of America ('Yamaha') is proud of the experience and craftsmanship that goes into each and every Yamaha product. Yamaha sells its products through a network of reputable, specially authorized dealers and is pleased to offer you, the Original Owner, the following Limited Warranty, which applies only to products that have been (1) directly purchased from Yamaha's authorized dealers in the fifty states of the USA and District of Columbia (the 'Warranted Area') and (2) used exclusively in the Warranted Area. Yamaha suggests that you read the Limited Warranty thoroughly, and invites you to contact your authorized Yamaha dealer or Yamaha Customer Service if you have any questions.
- DBR series powered loudspeakers: seven (7) years
- DSR series powered loudspeakers: seven (7) years
- DXR series powered loudspeakers: seven (7) years
- DXS series powered subwoofers: seven (7) years
- BR series passive loudspeakers: three (3) years
- CBR series passive loudspeakers: three (3) years
- Club series passive loudspeakers: three (3) years
- P series power amplifiers: three (3) years
- MSR series powered loudspeakers: three (3) years
- MG series mixers: one (1) year
- EMX series powered mixers: one (1) year
- STAGEPAS series PA system: one (1) year
- SPX/Q signal processors: one (1) year
- Loudspeaker accessories: one (1) year
- Other Yamaha live sound products: one (1) year
