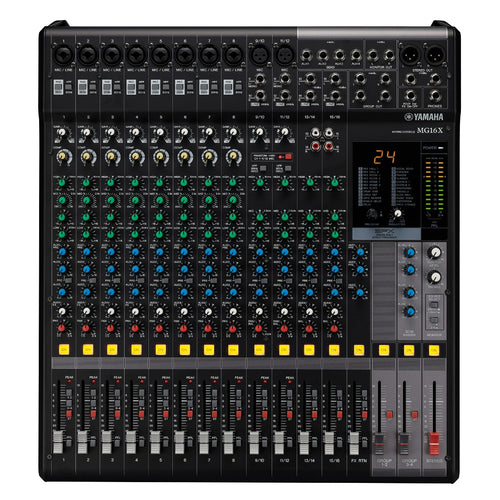

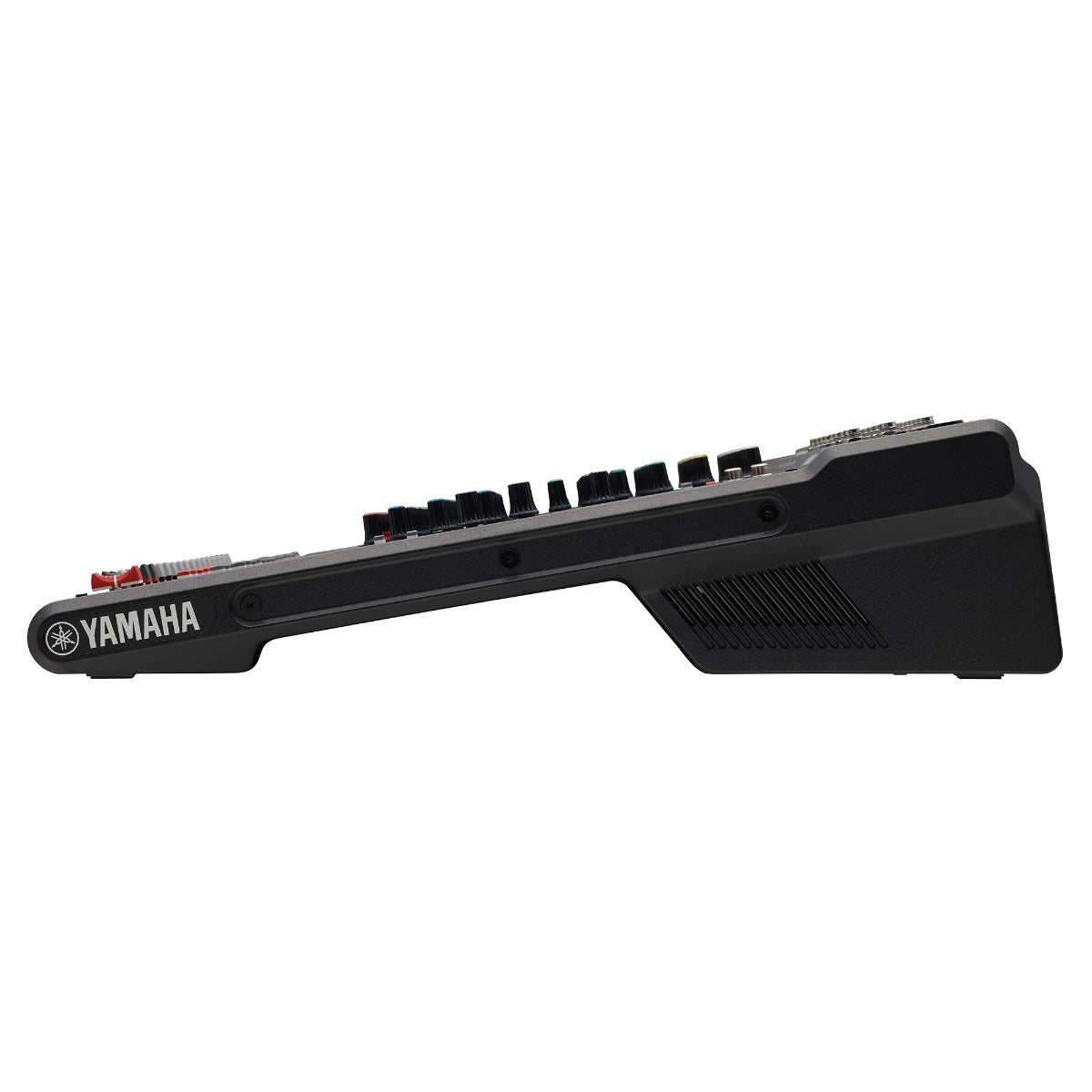

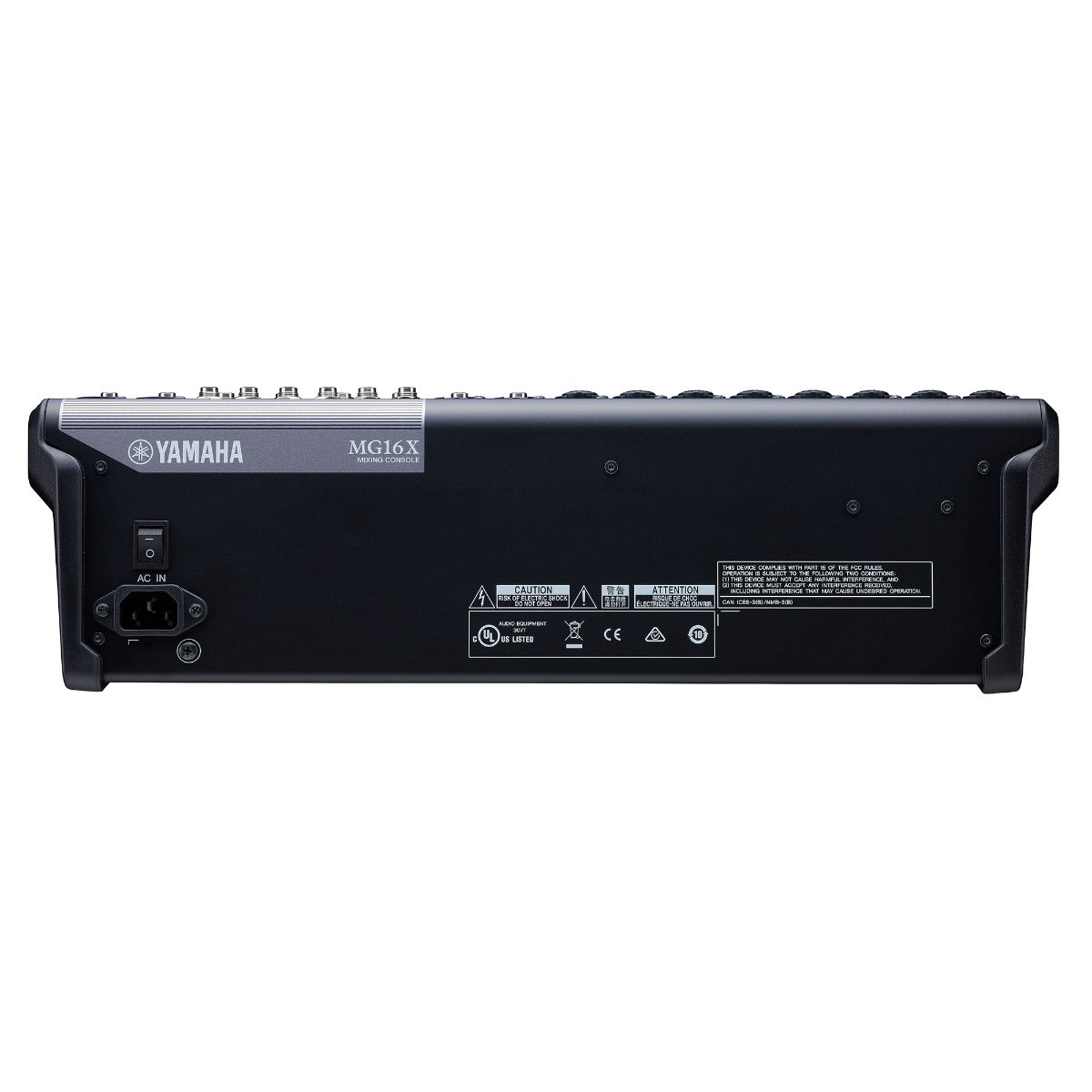

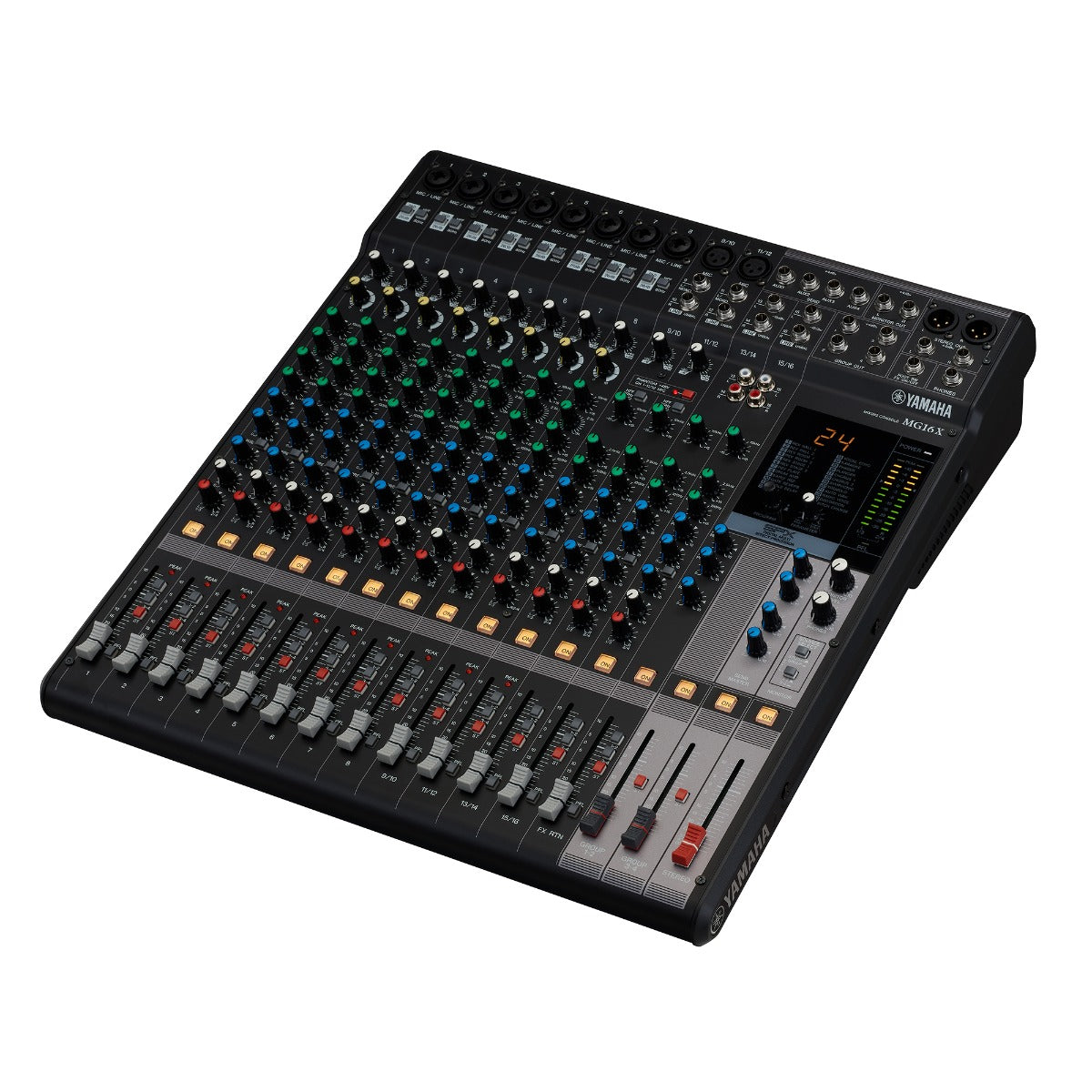

Yamaha MG16X 16-Input Stereo Mixer with Effects
Housed in a rugged steel chassis, the MG16X can accommodate up to 16 inputs and offers a balanced stereo output. Featuring D-Pre discrete Class A microphone preamplifiers for pristine sound, it includes Aux busses for the built-in SPX effect with 24 presets and three more are available. Eight channels of single-knob compression are available. The MG16X can accept XLR, ¼” Phone and RCA type pin jack inputs, and offers XLR and Phone outputs. The MG16X offers faders, and lit channel on/off switches for easy visual indication of settings. A footswitch input allows hands free effect muting. The MG16X can be rack mounted (12RU) with the included rack ears.
- Rugged, Powder-coated steel chassis for superior durability
- Discrete Class-A microphone preamps
- Built-in SPX digital effects with 24 programs
- Switchable +48V Phantom power
- Color coded controls offer easy operation
| Specification | Value |
|---|---|
| SKU | YAM-MG16XCV |
| Vendor | Yamaha |
| Included From Manufacturer |
PA-10 power adapter Rack ears |
| Mic Preamps | 4 |
| Mixer Channel Filterable | 16 |
| Mixer Type | Analog |
| MPN | MG16X CV |
| Simultaneous Inputs | 16 |
| Aux/Effect Sends | 4 Aux Sends |
| Busses/Groups | 4 |
| Channel EQ | High, Mid, Low |
| Effects | 24 effect programs |
| Number of Faders | 16 |
| Audio Inputs |
8 x 1/4" / XLR Combo 2 x XLR 4 x Stereo 1/4" (L+R) |
| Audio Outputs |
Stereo Balanced XLR 2 x Stereo 1/4" 1/4" Headphones 4 x 1/4" Group Out |
| Phantom Power | Switchable +48V (channel 1-11/12) |
| Product Weight | 15.0 lbs. |
| Rackmountable | Yes |
| Width | 17.5" |
| Depth | 19.7" |
| Height | 5.1” |
Yamaha products are designed and manufactured to provide a high level of defect-free performance. Yamaha Corporation of America ('Yamaha') is proud of the experience and craftsmanship that goes into each and every Yamaha product. Yamaha sells its products through a network of reputable, specially authorized dealers and is pleased to offer you, the Original Owner, the following Limited Warranty, which applies only to products that have been (1) directly purchased from Yamaha's authorized dealers in the fifty states of the USA and District of Columbia (the 'Warranted Area') and (2) used exclusively in the Warranted Area. Yamaha suggests that you read the Limited Warranty thoroughly, and invites you to contact your authorized Yamaha dealer or Yamaha Customer Service if you have any questions.
- DBR series powered loudspeakers: seven (7) years
- DSR series powered loudspeakers: seven (7) years
- DXR series powered loudspeakers: seven (7) years
- DXS series powered subwoofers: seven (7) years
- BR series passive loudspeakers: three (3) years
- CBR series passive loudspeakers: three (3) years
- Club series passive loudspeakers: three (3) years
- P series power amplifiers: three (3) years
- MSR series powered loudspeakers: three (3) years
- MG series mixers: one (1) year
- EMX series powered mixers: one (1) year
- STAGEPAS series PA system: one (1) year
- SPX/Q signal processors: one (1) year
- Loudspeaker accessories: one (1) year
- Other Yamaha live sound products: one (1) year
