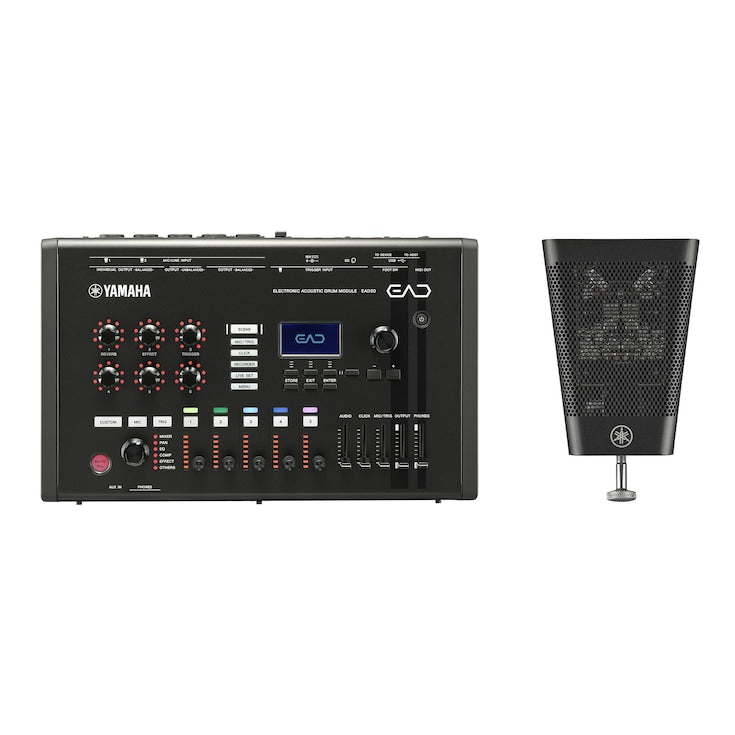

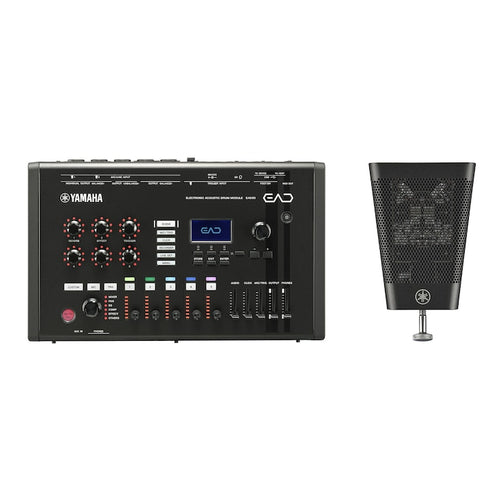

The EAD50 Electronic Acoustic Drum Microphone System simplifies the traditionally complex process of miking drums by combining microphones, triggers, mixing, and routing into one powerful, easy-to-use solution. Designed for drummers who want fast setup without sacrificing sound quality, the EAD50 delivers a detailed, studio-ready sound while offering the flexibility and expansion needed for modern hybrid and acoustic drum setups.
Key Features
- Quick setup solution for miking any acoustic drum kit, combining features of professional digital mixing boards and electronic drums
- High-quality sound engine with DSU50 stereo sensor delivers a detailed, professional image of your entire kit
- Eight balanced 1/4" outputs for independent routing of drums and effects
- Two balanced XLR master outputs for clear, noise-resistant connection to PA systems
- Live Set features for recalling kits, tempos, and audio files with one touch
- 270 scenes (70 preset kits, 200 user kits), 2,317 sounds, and 252 digital effects
- Import and save up to 200 customizable metronome click sounds
- 8-in/10-out USB audio interface for multitrack recording
- Five XLR/TRS combo inputs for additional microphones or DSU50 units
- Five splitable trigger inputs supporting up to ten triggers, plus two foot trigger inputs
- Compatible with a wide range of single-zone, dual-zone, three-zone, and multi-piezo pads
- USB Trigger Link for MIDI-based trigger inputs
- MIDI Out for DAW integration
- SD card playback for backing tracks without a computer
- Bluetooth connectivity for smartphones and tablets
- USB A to device and USB C to computer connections
- LED rotary faders and assignable Kit Modifier knobs for on-the-fly control
- Looper, sampler, and playback features for expanded creativity
- Free iOS/Android Rec’n’Share app and EAD Touch app for recording, editing, and data management

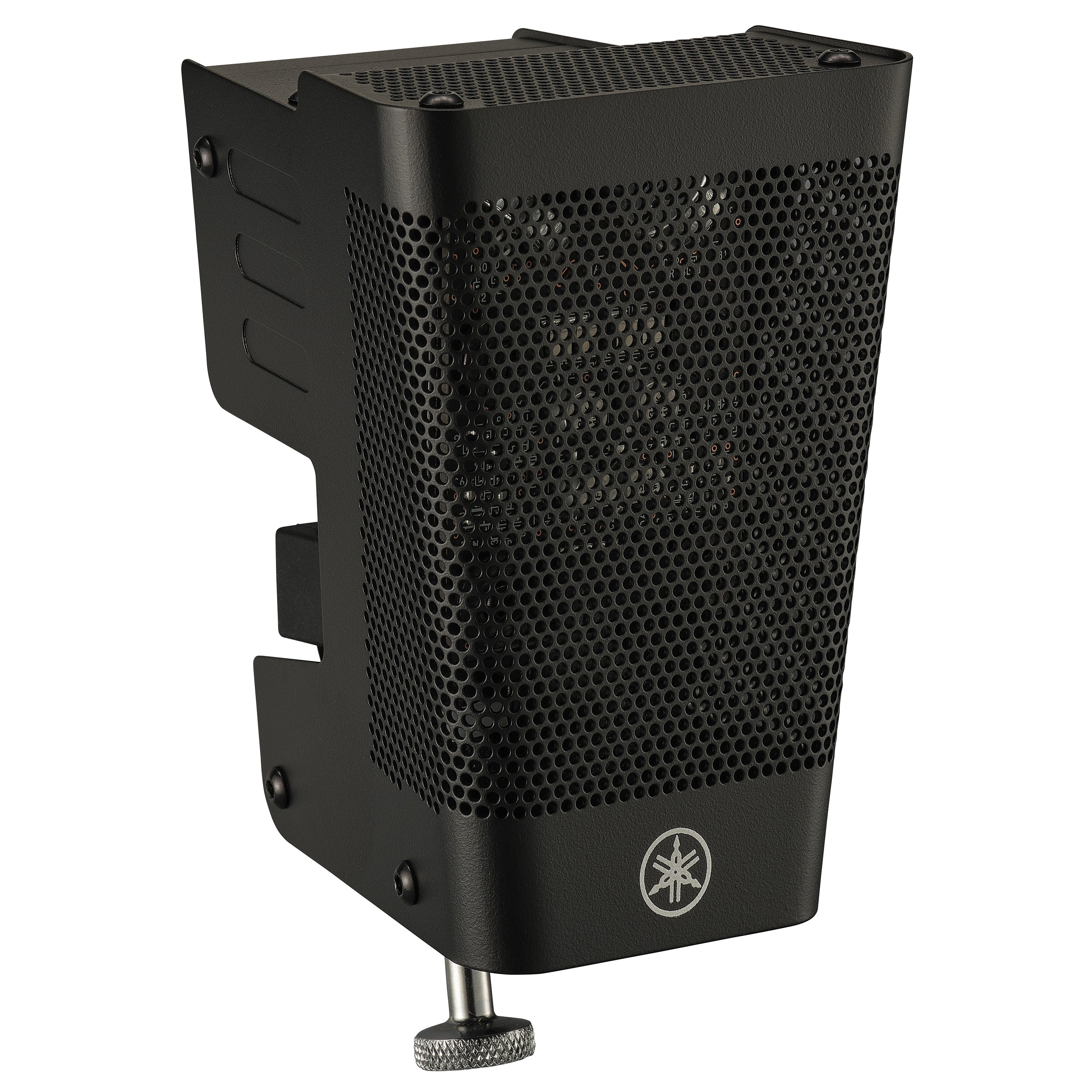

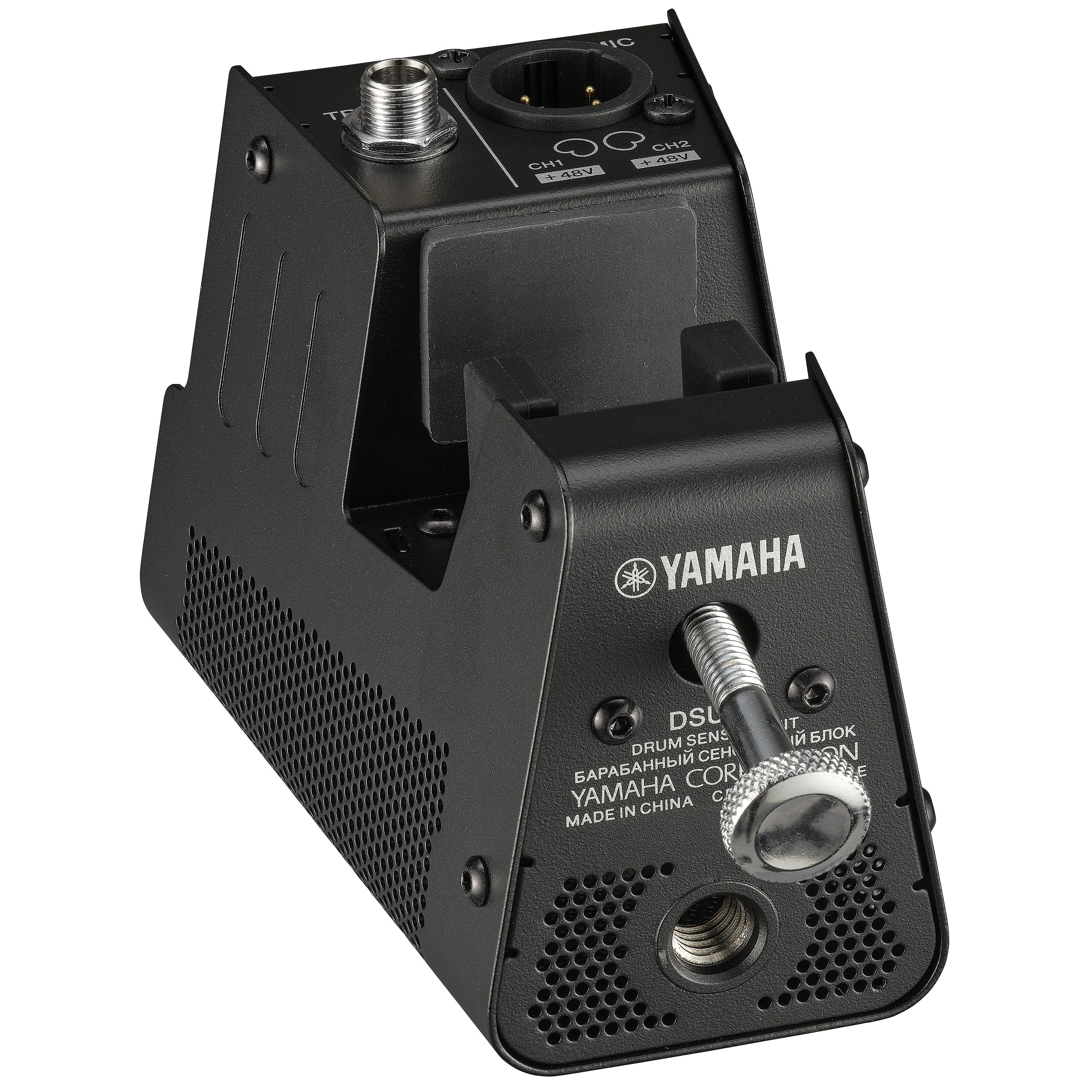

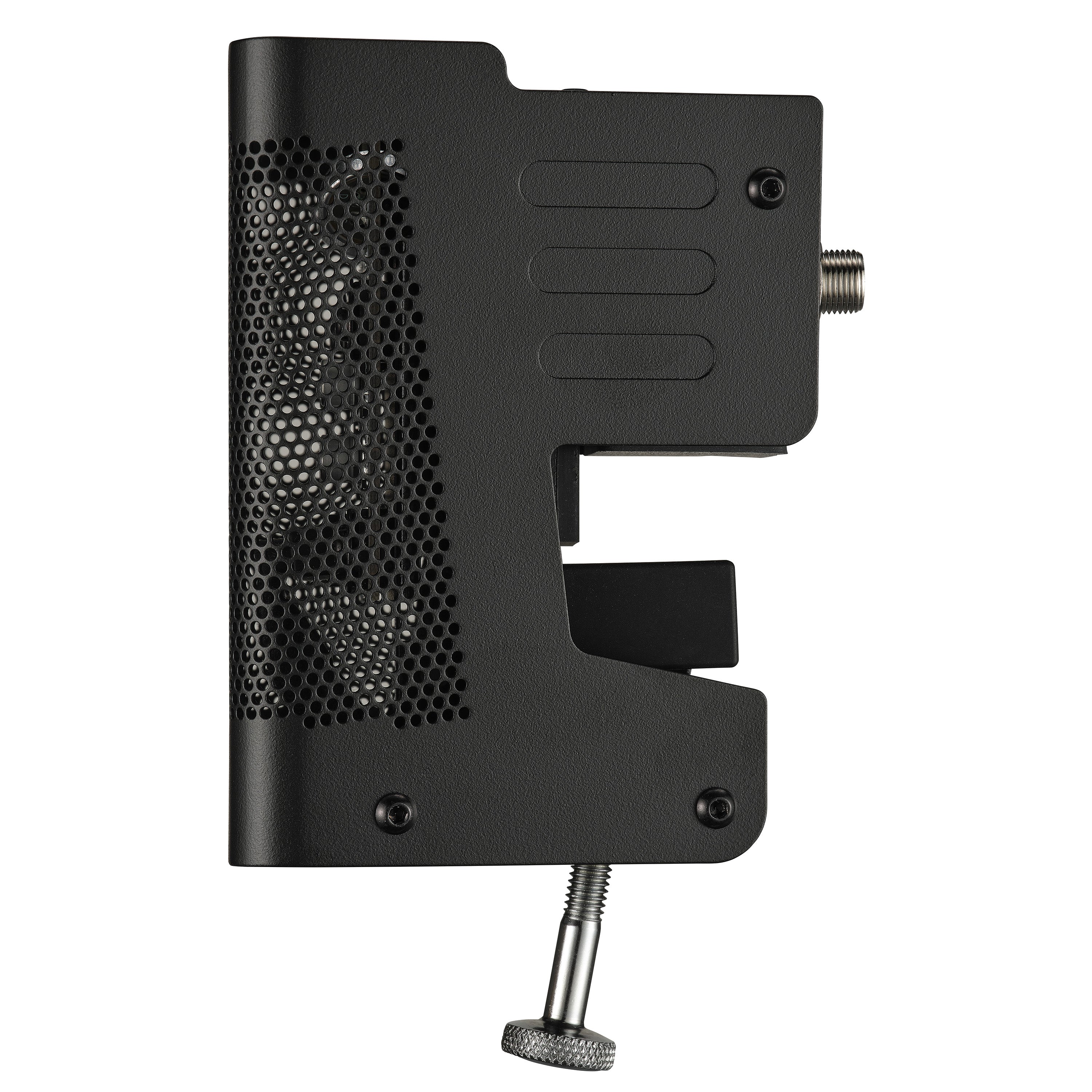

DSU50 Stereo Sensor & Kick Trigger

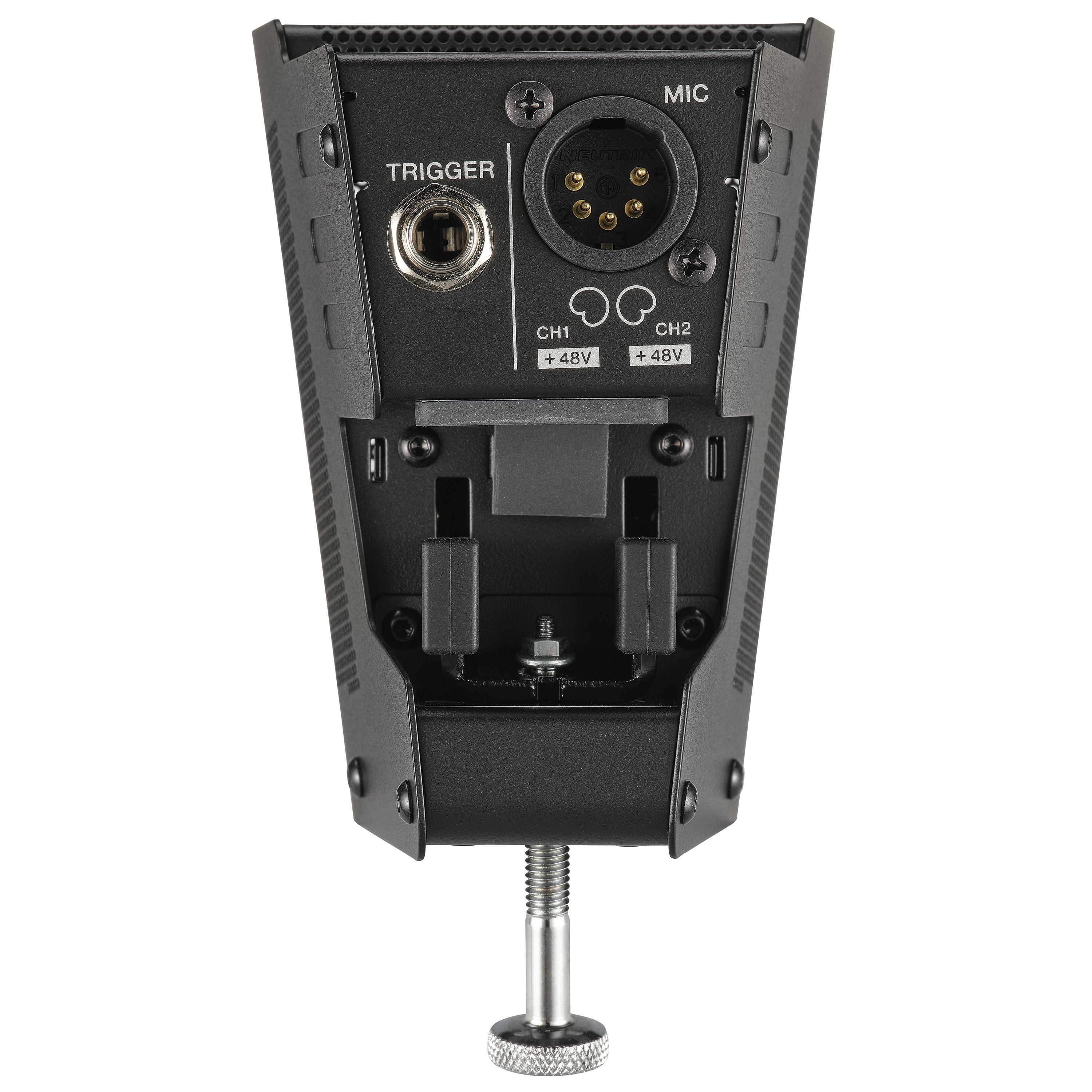

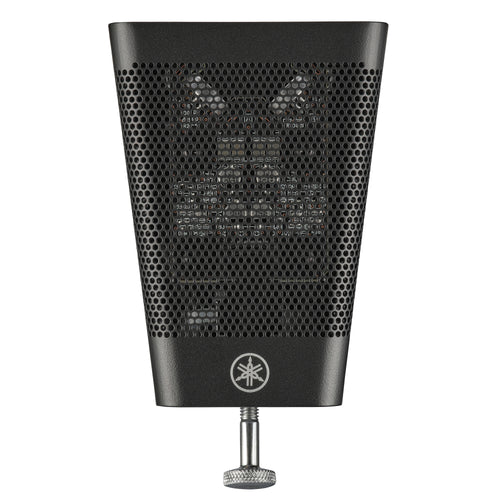

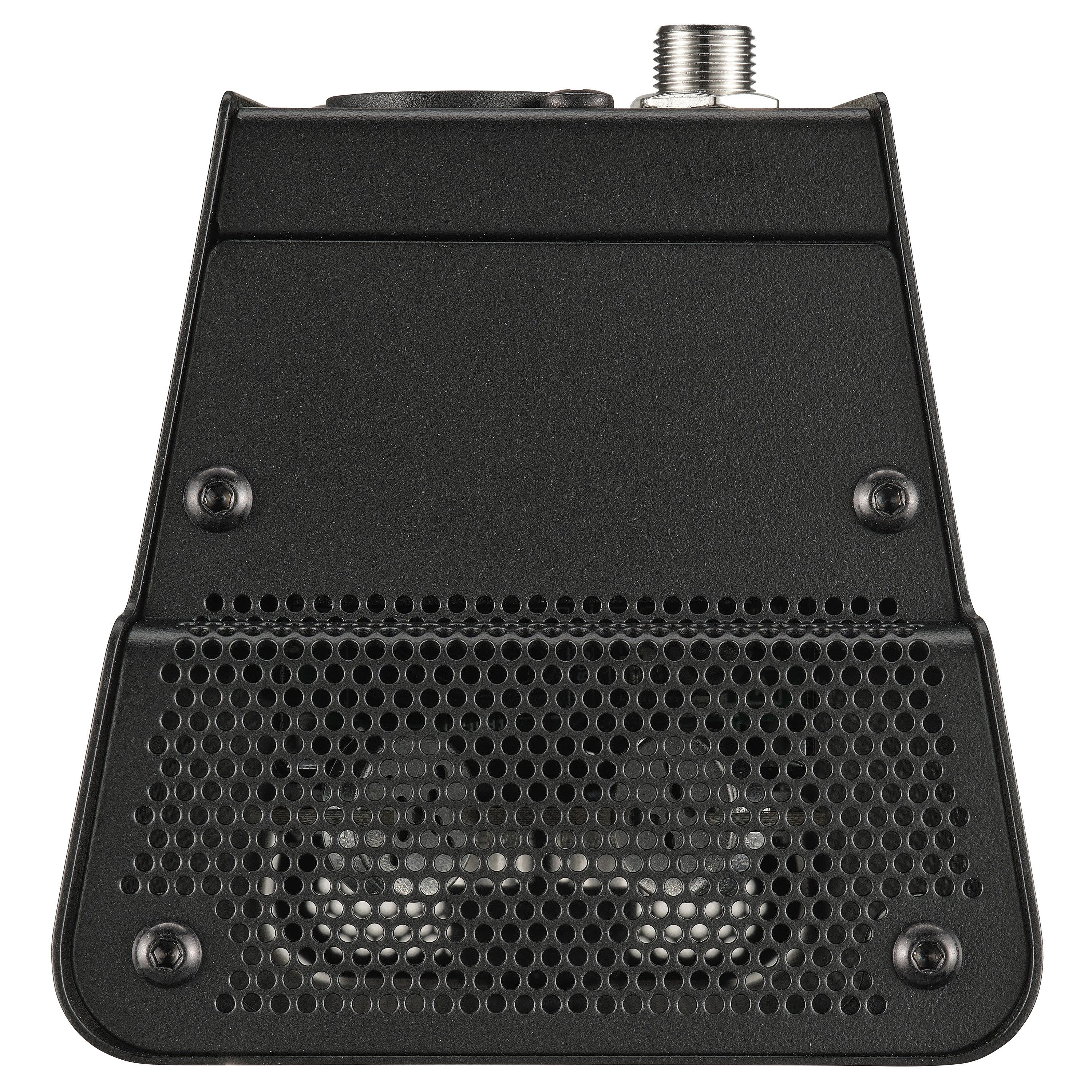

The included DSU50 stereo sensor mounts directly to most bass drum hoops or to a standard microphone, camera, or lighting stand using 3/8" threading. It captures a full, natural stereo image of your entire kit while also providing a dedicated kick trigger that converts each bass drum strike into precise trigger data. This allows you to layer electronic samples in perfect sync with your acoustic playing. The DSU50 is also available separately and connects via XLR, making it compatible with a wide range of mixers, processors, amplifiers, and PA systems.

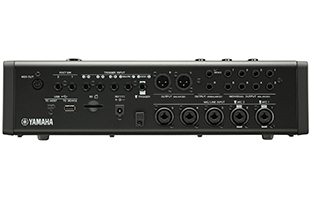

Flexible Inputs, Outputs & Expansion

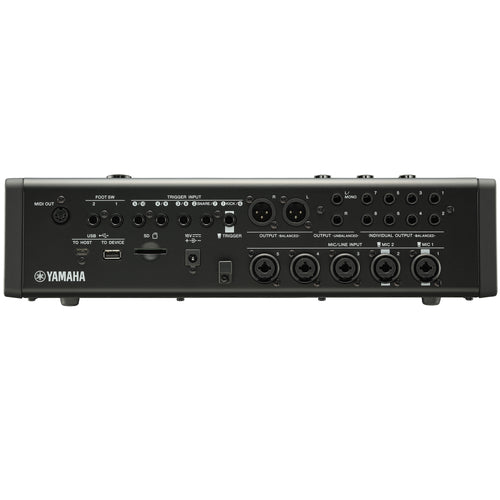

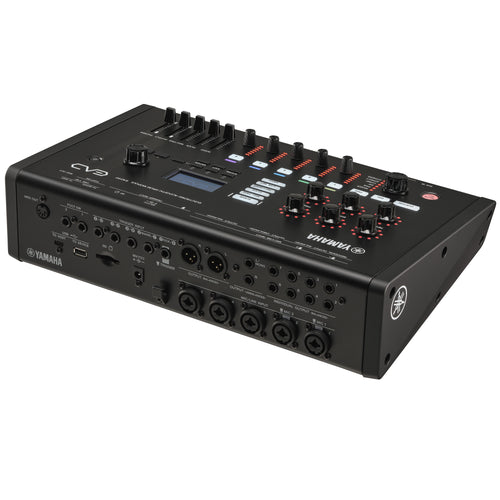

The EAD50 module offers extensive routing and expansion options for acoustic, electronic, and hybrid setups. Five XLR/TRS combo inputs allow you to connect additional microphones or DSU50 units, while five splitable trigger inputs support up to ten triggers, plus two dedicated foot trigger inputs. Audio can be routed through eight balanced 1/4" outputs and two balanced XLR master outputs, giving engineers full control over individual drums and effects for clear, professional mixes in studios, rehearsal spaces, churches, and live venues.
Hands-On Control & Intuitive Operation

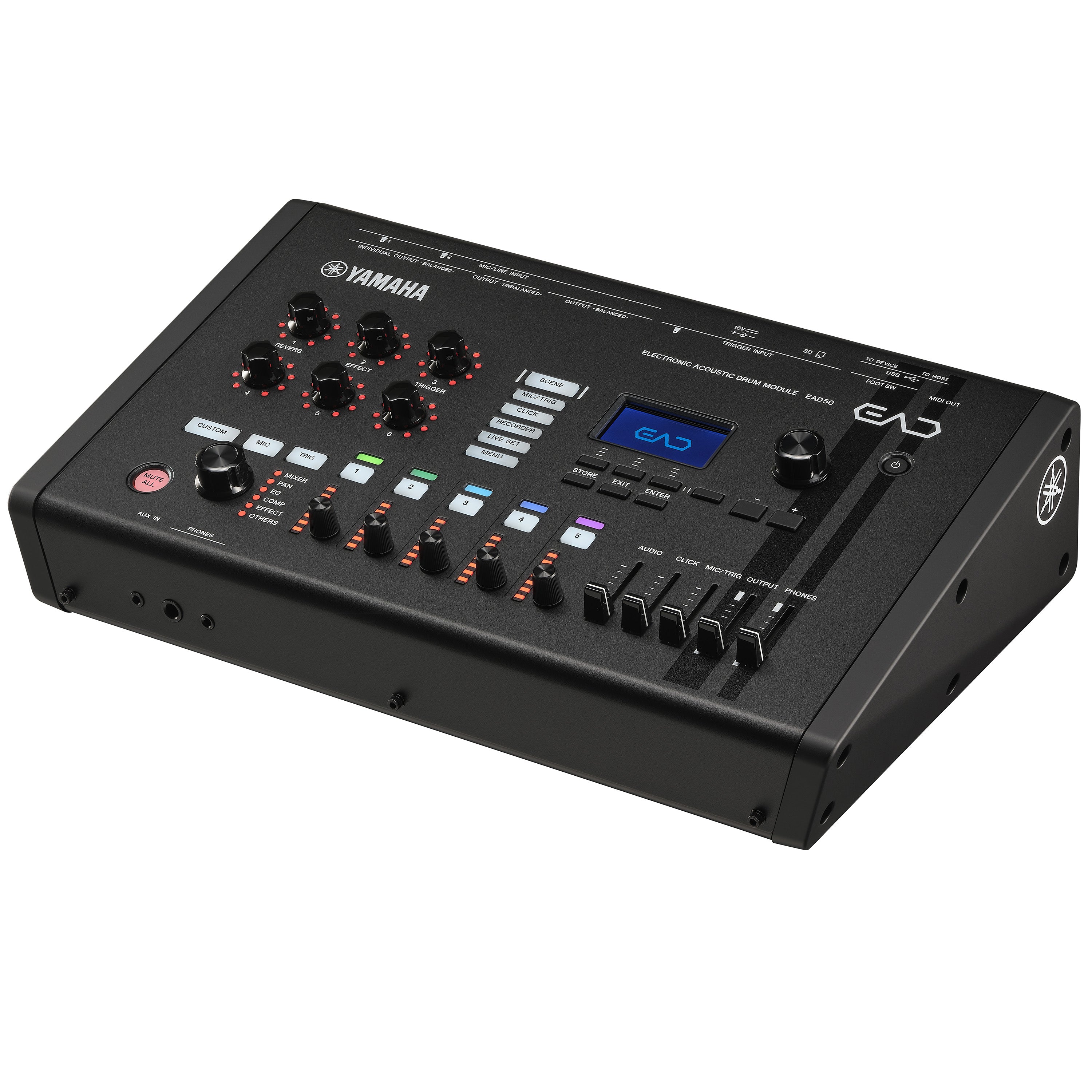

LED rotary faders, assignable Kit Modifier knobs, and a streamlined user interface make it easy to adjust gain, reverb, effects, and kit parameters on the fly. The FREE EAD Touch App further simplifies editing, kit management, and navigation, while the Rec’n’Share iOS/Android app lets you record video, edit performances, and share content directly from a mobile device.
Live Performance Tools
Live Set features let you create ordered setlists of scenes, tempos, and audio files, then recall everything instantly with a single button press or footswitch. Pre-counts, customizable click tracks, and backing tracks can all be configured for seamless transitions, helping keep performances tight and consistent.
Recording, Connectivity & Creative Features
The EAD50 functions as an 8-in/10-out USB audio interface for multitrack recording and includes MIDI Out for easy DAW integration. USB A to device and USB C to computer connections, Bluetooth connectivity, and SD card playback provide multiple ways to send and receive audio. Creative tools such as looper, sampler, and playback, along with thousands of onboard sounds and effects, expand what’s possible for practice, songwriting, recording, and performance.
Frequently Asked Questions: Yamaha EAD50
What separates the EAD50 from the earlier EAD10 system?
The EAD50 is a more advanced evolution of the concept, offering additional microphone and trigger inputs, multichannel USB audio (8-in/10-out), a built-in sampler, and a more powerful sound and effects engine. These upgrades provide greater control and flexibility for live performance, recording, and streaming.
Is the EAD50 a standalone sound module?
Yes. The EAD50 operates as a self-contained sound module and USB audio interface, with onboard processing, effects, and routing. For acoustic and hybrid setups, you can connect the included DSU50 sensor unit, additional DSU50 unit, external microphones, and additional drum triggers or electronic pads as needed.
Can I connect the EAD50 to a phone, tablet, or computer?
Yes. The EAD50 supports Bluetooth MIDI for wireless control, Bluetooth Audio or AUX input for playing backing tracks, and USB for multitrack recording, streaming, online lessons, or use with Rec’n’Share.
Does the EAD50 support recording and live streaming?
Yes. The EAD50 operates as an 8-in/10-out USB audio interface, allowing multitrack recording into a DAW and direct streaming to platforms such as OBS.
Is the EAD10 sensor unit compatible with the EAD50?
No. The EAD10 sensor unit was designed only for the EAD10 system. The EAD50 is intended for use with the DSU50 sensor unit or standard external microphones.
Are the companion apps included at no cost?
Yes. Both the EAD Touch and Rec’n’Share apps are free to download and use.
How many external microphones can be connected at once?
The EAD50 provides up to five microphone inputs for external mics. Two are needed to use the included DSU50 sensor unit. So there are 3 extra mic inputs if using the included DSU50.
Why should I add a second DSU50 sensor unit?
The included DSU50 unit will attach to your bass drum (providing a kick trigger output for layering samples), and also provide a stereo image of the drum kit including snare, toms, cymbals, etc. Adding a second DSU50 as a stereo overhead microphone or room microphone (connected to MIC/LINE INPUT: 3,4) will provide more depth and dimension to your sound, giving you even more options in processing and recording.
Does the EAD50 support external drum triggers or pads?
Yes. Dedicated trigger inputs and USB Trigger Link support allow external pads and triggers to be added to hybrid drum setups. Trigger inputs support 2-zone pads and cymbals, or can be split with a breakout cable to add 2 mono triggers per input.
Can I route individual drums to separate outputs or DAW tracks?
Yes. Multichannel USB audio and flexible internal routing allow individual drums and trigger sources to be assigned to separate tracks or outputs.
Is the EAD50 suitable for small PA systems or in-ear monitor setups?
Yes. Balanced outputs and configurable routing make it easy to feed a small PA, stage monitor, or in-ear monitoring system.
What is included in the box?
The box includes the EAD50 main module, DSU50 drum sensor unit, mounting hardware, power supply, USB cable, and documentation. Cubase AI software and access to Yamaha companion apps are also included.
| Specification | Value |
|---|---|
| SKU | YAM-EAD50 |
| Model Name | EAD50 |
| Vendor | Yamaha |
| Drum Trigger Type | Other |
| Included From Manufacturer |
EAD50 Module DSU50 Microphone and Trigger Pickup XLR Cables Stereo trigger cable |
| MPN | EAD50 |
| Number of Instrument Sounds | ~2,317 built-in PCM sounds |
| Number of Drum Kits | 70 preset kits + 200 user kits |
| Trigger Inputs | 5 physical trigger inputs (splittable to 10 signals) + USB Trigger Link |
| Metronome | Yes |
| Sequencer/Recording | Onboard looper and sampler; USB audio interface for multitrack recording; SD card recording/playback |
| Audio Inputs | 5 x XLR/TRS combo mic/line inputs; auxiliary input; Bluetooth audio; USB |
| Audio Outputs | 2 x XLR main outputs; 8 x 1/4" individual outputs; headphone output |
| Storage Type | SD card slot; USB flash drive support |
